The digital output terminal KL2012 switches the binary control signals of the automation device, galvanically isolated, to the process level to the actuators. It processes different high load currents with overload and short-circuit-proof outputs. The bus terminal contains two channels, whose signal status is indicated by LEDs.
Connection technology 4-wire Number of outputs 2 Nominal load voltage 24 V DC (-15%/+20%) Load type resistive, inductive, lamp load Maximum output current 0.5 A (short-circuit proof) per channel Short-circuit current < 2 A Maximum switch-off energy (ind.) < 150 mJ/channel Reverse polarity protection – Potential separation 500 V (K-Bus/field voltage) Power contact current consumption typ. 15 mA + load K-Bus current consumption 5 mA typ. Width in process image 2 outputs Configuration no address or configuration setting Weight approx. 55 g Operating/storage temperature 0…+55 °C/-25…+85 °C Relative humidity 95% without condensation Vibration/shock resistance according to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission according to EN 61000-6-2/EN 61000-6-4 Protection class/installation position IP 20/any Pluggable wiring for all KSxxxx terminals Approvals CE, UL, Ex
| Condition | Used |
| Age rating | No age restriction |
| Model | KL 2012 |
| Manufacturer | Beckhoff Automation GmbH |
| Content | 1 piece |
| Weight | 100 g |
| Item ID | 1234580379 |
| Item ID | 1234580379 |
Beckhoff Automation GmbH

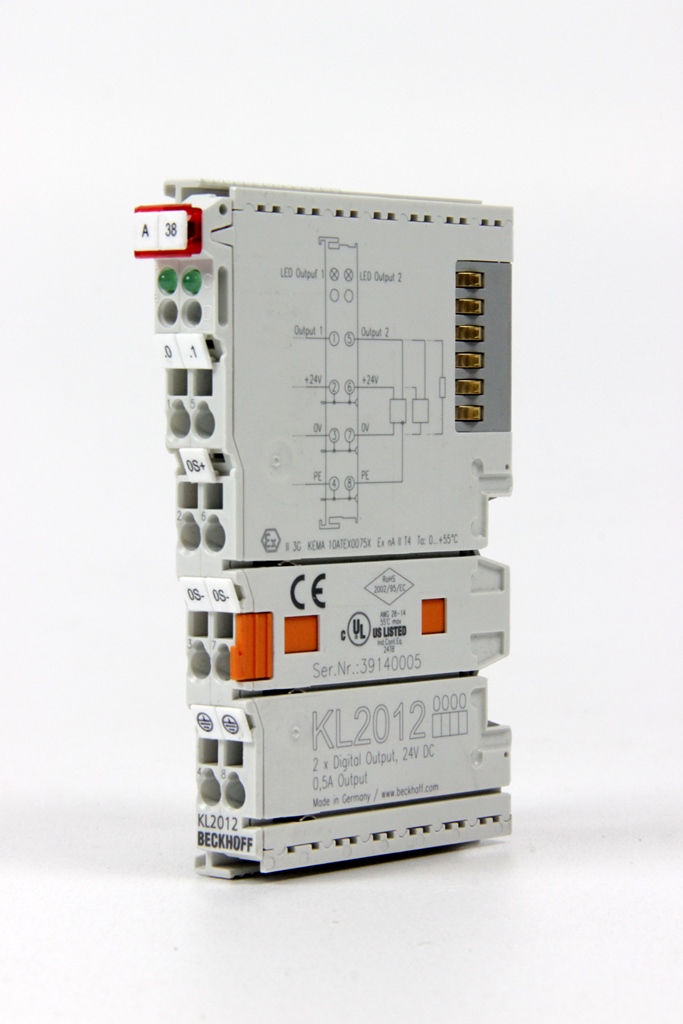

Beckhoff 2-channel digital output terminal 24 V DC KL2012
Item number VN-8800
EAN
Condition Used
Available quantity
${ $store.getters.currentItemVariation.stock.net }
EUR 8.95
*
Content
1 piece
immediately available
