The digital input terminal EL1014 records binary 24 V control signals from the process level and transmits them galvanically isolated to the higher-level automation device. The EtherCAT terminal contains four channels that display their signal status through LEDs. Special features: input specification type 1/3 low delay due to fast 10 µs input filter usable e.g. for inductive or capacitive sensors direct connection of four 2-wire sensors through additional +24 V connection points.
Connection technology 2-wire Specification EN 61131-2, Type 1/3 Number of inputs 4 Nominal voltage 24 V DC (-15%/+20%) Signal voltage "0" -3…+5 V (EN61131-2, Type3) Signal voltage "1" 11…30 V (EN61131-2, Type3) Input current 3 mA typ (EN61131-2, Type3) Input filter 10 µs typ. Distributed Clocks – Current consumption power contacts 2 mA typ + load Current consumption E-Bus 90 mA typ. Potential separation 500 V (E-Bus/field voltage) Configuration no address or configuration setting Special features standard input terminals for 2-wire connection Weight approx. 50 g Operating/storage temperature -25…+60 °C/-40…+85 °C Relative humidity 95% without condensation Vibration/shock resistance according to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission according to EN 61000-6-2/EN 61000-6-4 Protection class/installation position IP20/any Pluggable wiring for all ESxxxx terminals Approvals/markings CE, UL, ATEX, IECEx, DNV GL Ex marking ATEX: II 3 G Ex nA IIC T4 Gc IECEx: Ex ec IIC T4 Gc
| Condition | Used |
| Age rating | No age restriction |
| Model | EL1014 |
| Manufacturer | Beckhoff Automation GmbH |
| Content | 1 piece |
| Weight | 100 g |
| Item ID | 1234588129 |
| Item ID | 1234588129 |
Beckhoff Automation GmbH

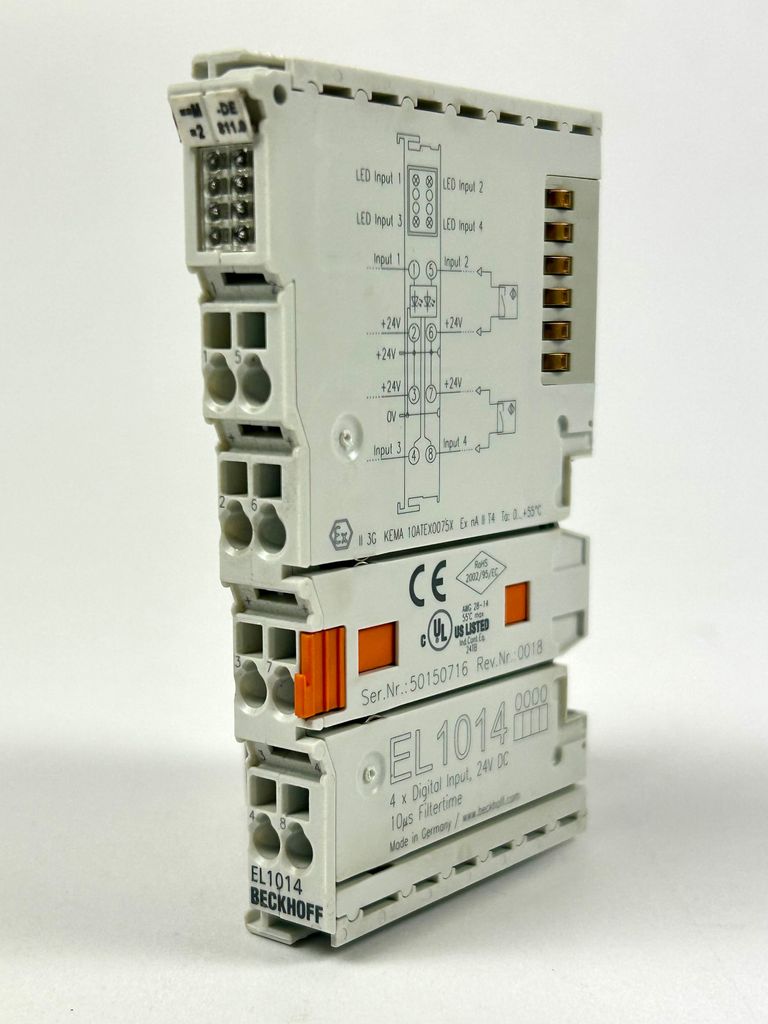

Beckhoff EL1014 EtherCAT terminal 4-channel digital input 24VDC
Item number VN-22465
EAN
Condition Used
Available quantity
${ $store.getters.currentItemVariation.stock.net }
EUR 37.45
*
Content
1 piece
Unit price
EUR 37.45 / piece
immediately available
