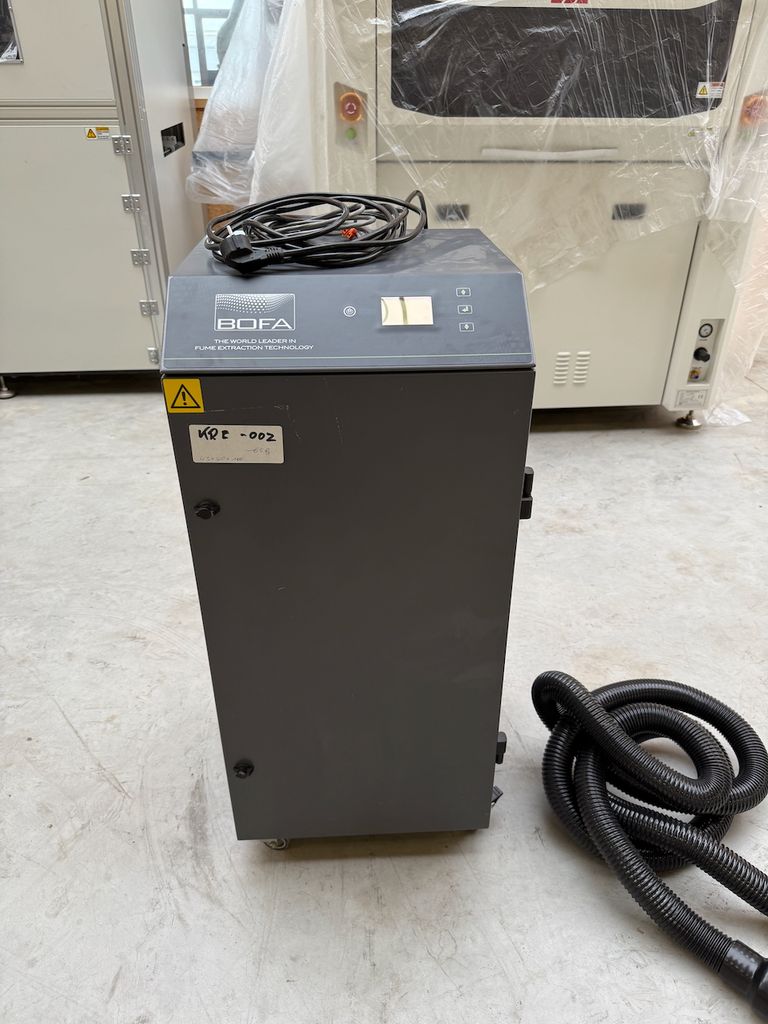

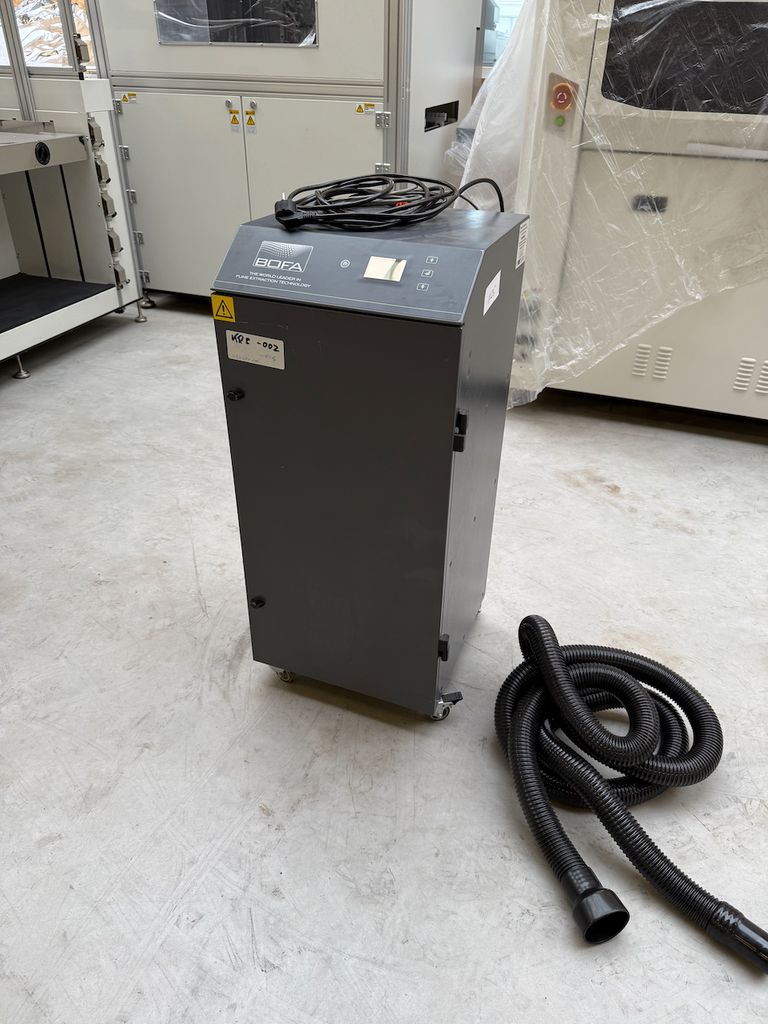

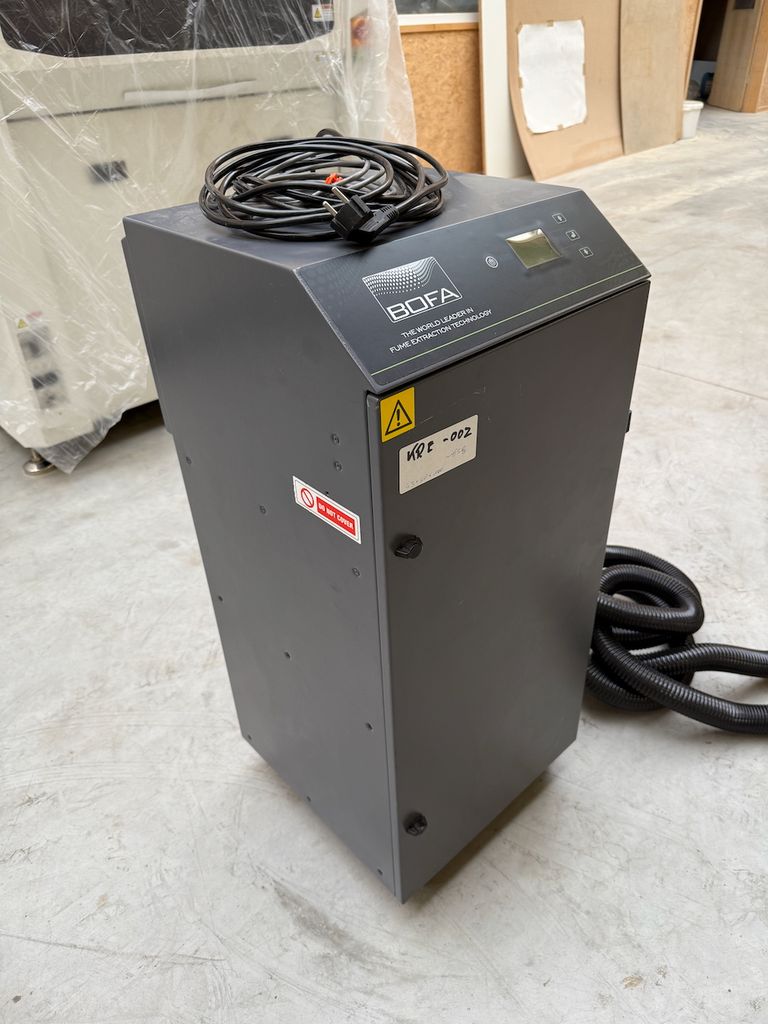

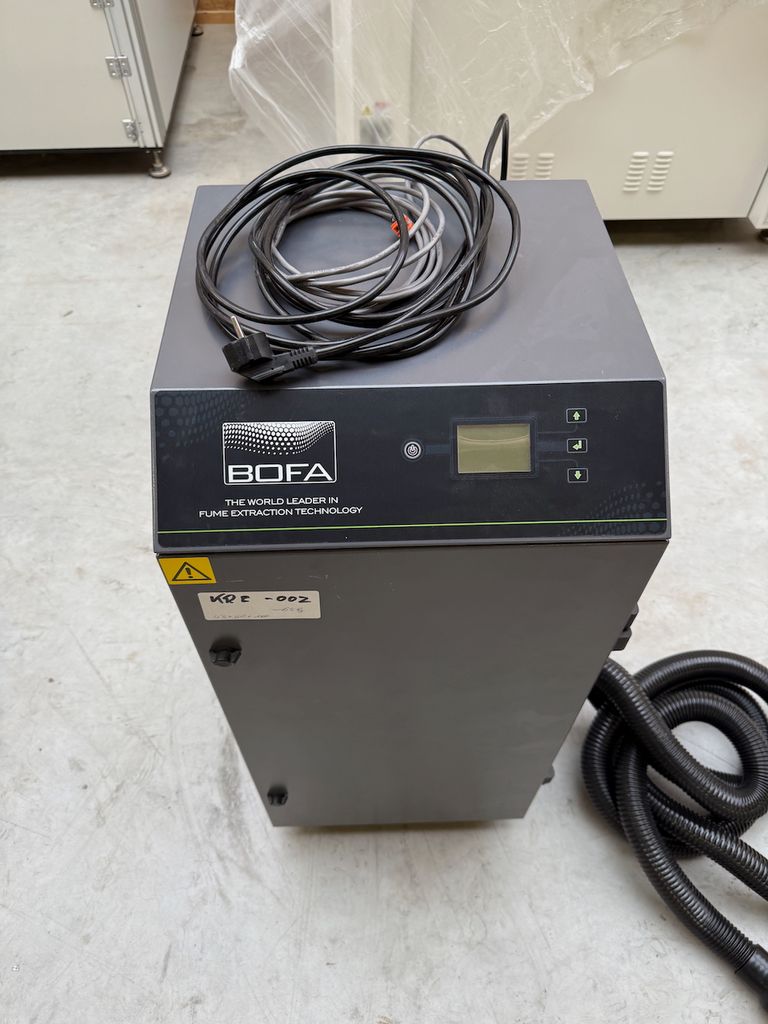

The BOFA AD Oracle iQ is a high-performance laser fume extractor specifically designed for various laser applications. It combines advanced technologies in a compact device.
Dimensions and Weight:
Dimensions (H x W x D): 975 x 440 x 515 mm
Weight: 65 kg
Performance:
Airflow: 380 m³/h (223 cfm)
Pressure: 96 mbar
Electrical Data:
Voltage: 100-230 V, single-phase, 50/60 Hz
Current consumption: 12.5 A / 1.1 kW
Noise Level:
Volume: < 60 dBA (at typical operating speed)

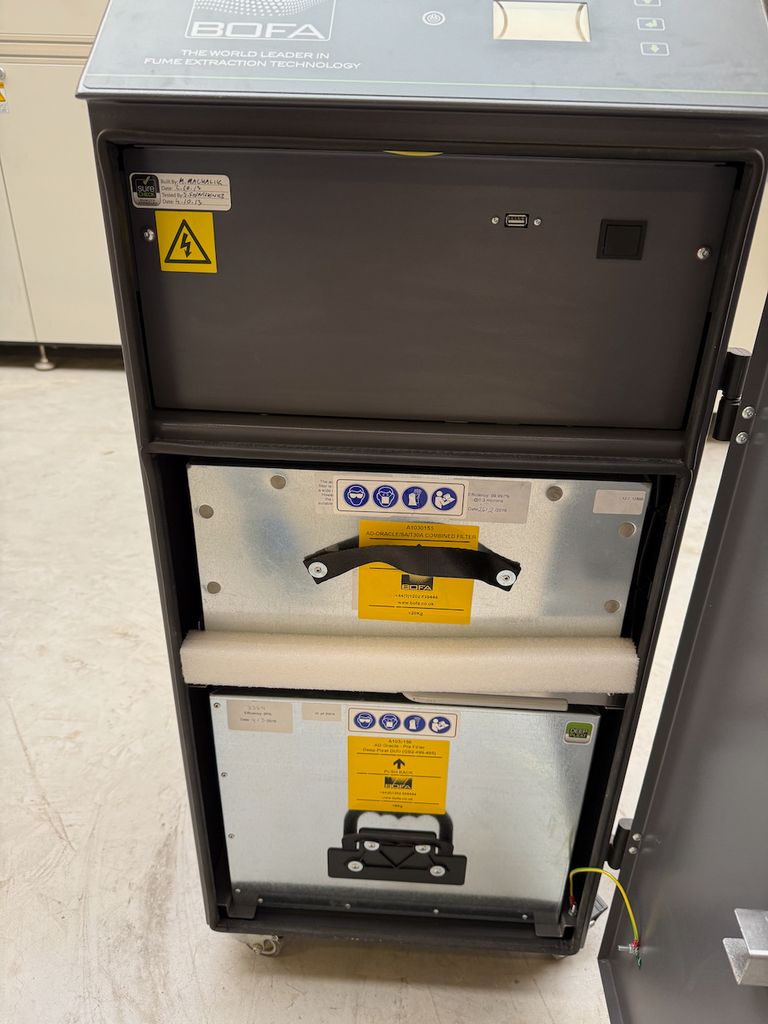

Filter Technology:

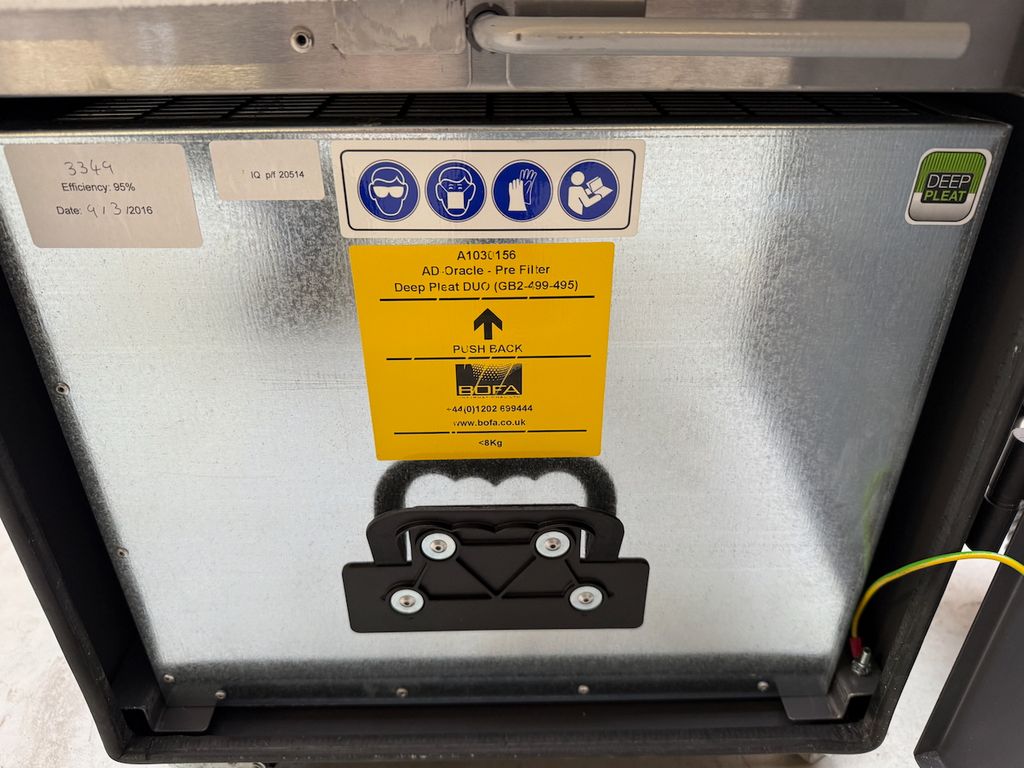

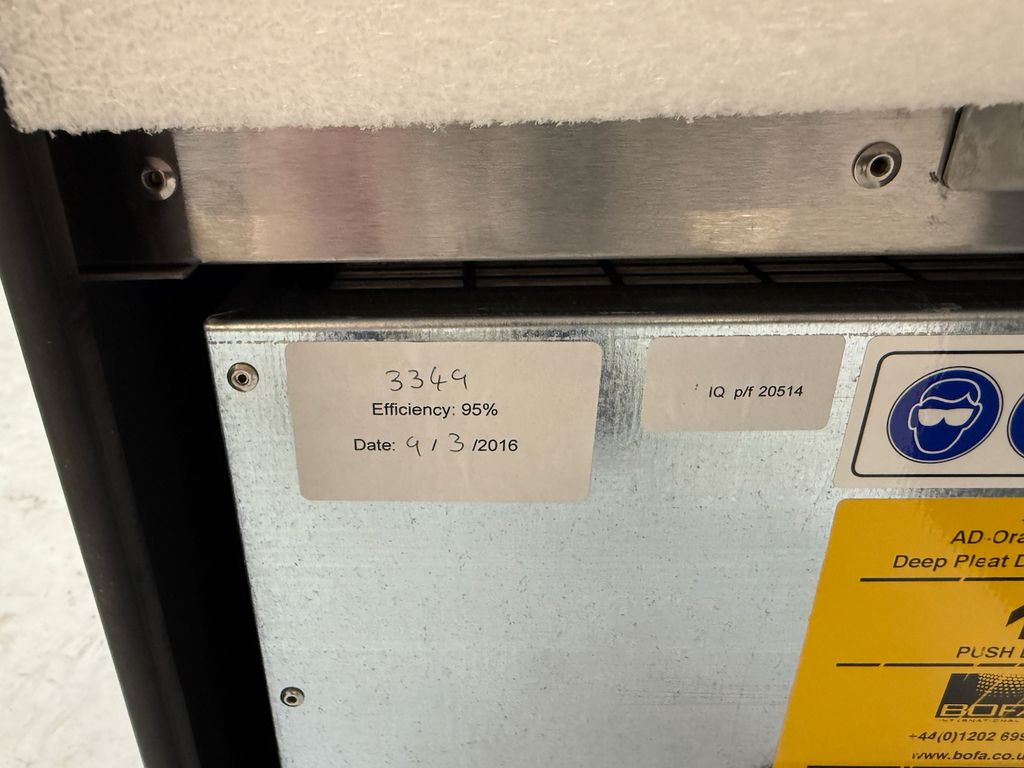

Pre-filter: DeepPleat DUO with a surface area of approx. 12 m², Efficiency F8 (95% at 0.9 microns)

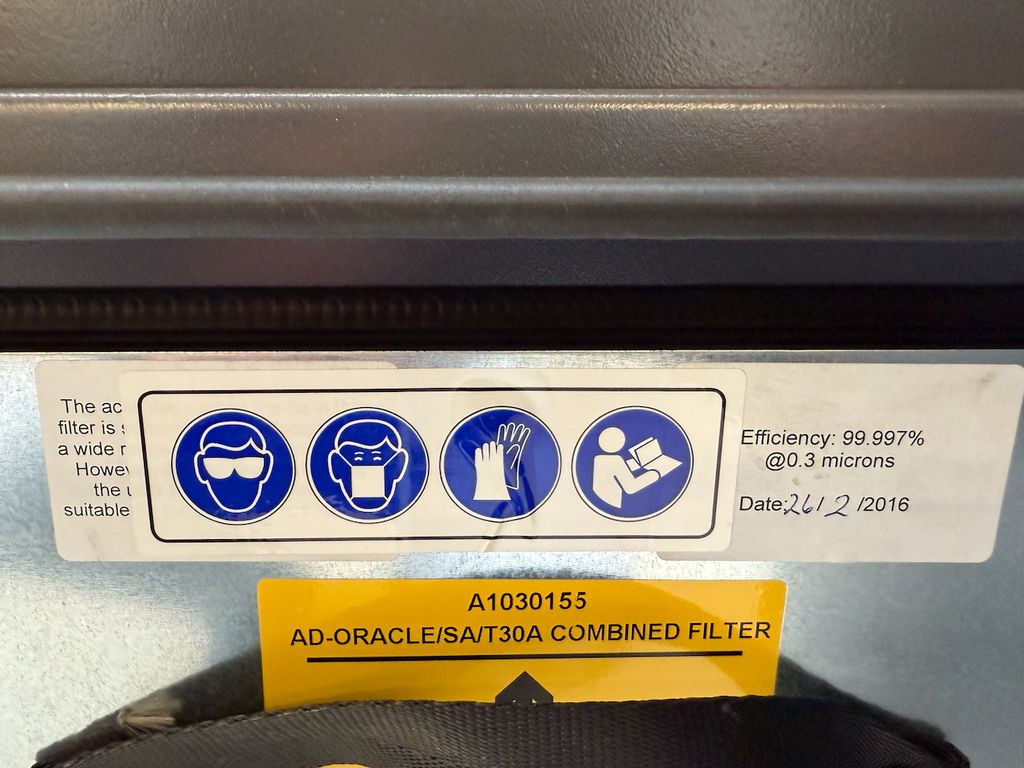

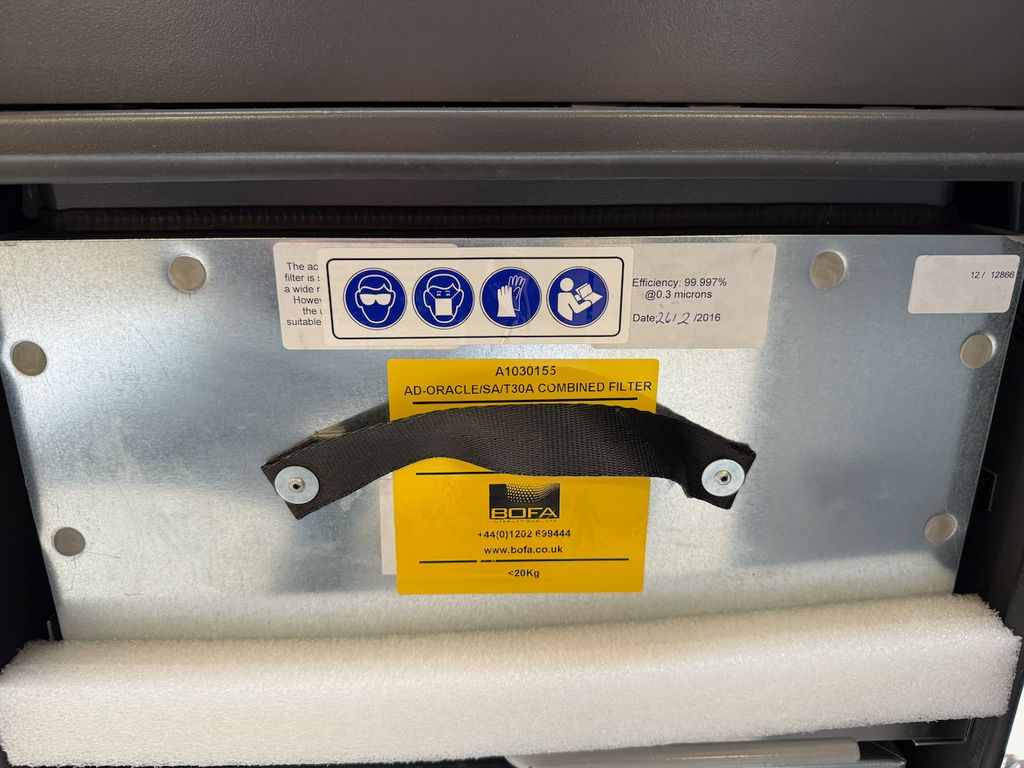

HEPA Filter: Efficiency of 99.997% at 0.3 microns
Activated Carbon Filter: 15 kg of treated activated carbon
Additional Features:
Intelligent Operating System (iQ): Provides real-time information and allows downloading of performance and operating parameters for evaluation.
Reverse Flow Air (RFA) Technology: Reduces air speed and changes air direction to direct larger particles into the separation chamber and improve filter performance.
Automatic Flow Control (AFC): Allows presetting of optimal airflow for specific applications and helps reduce noise levels.
Multi-Voltage Sensing (MVS): Automatically detects local voltage and adjusts accordingly.

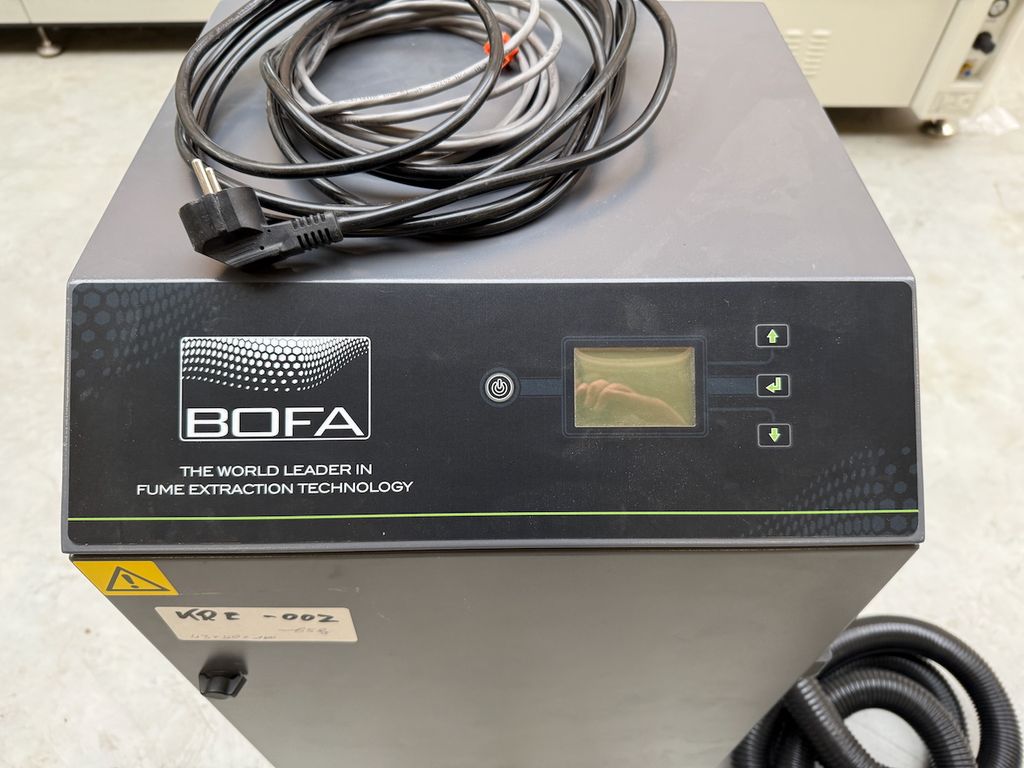

High-Contrast Display: Allows clear display of real-time data.
Independent Filter Monitoring: Monitors the condition of the filters and issues warnings as needed.

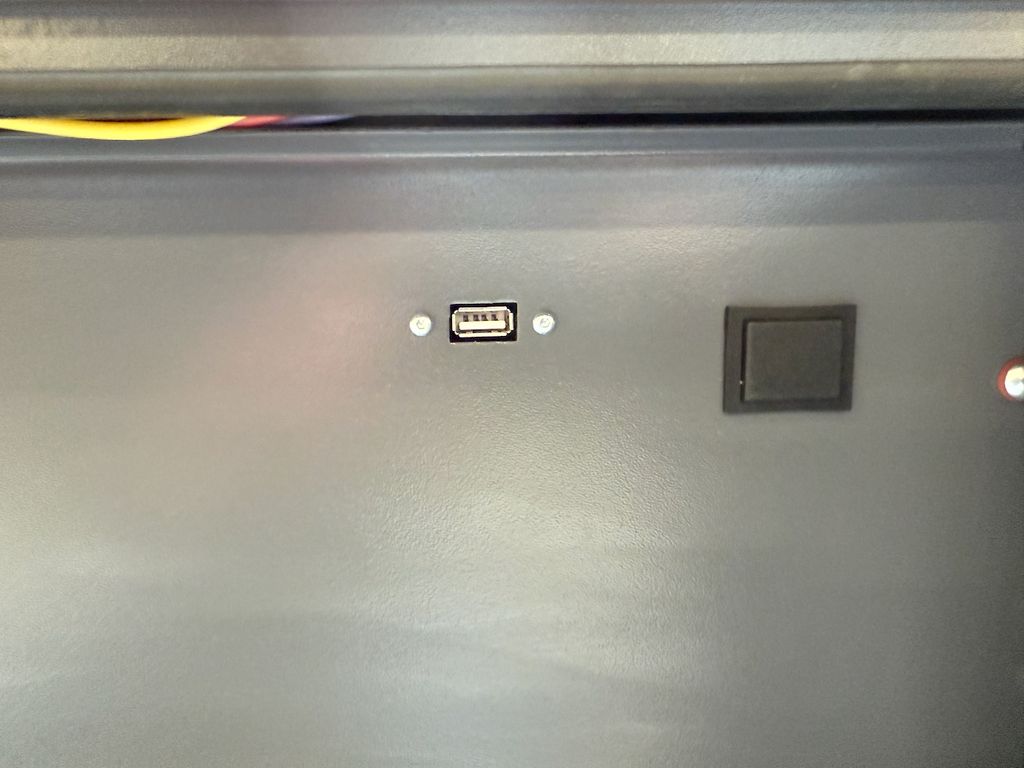

Remote Diagnosis via USB: Enables remote monitoring and diagnosis of the device.
Dimensions (H x W x D): 975 x 440 x 515 mm
Weight: 65 kg
Performance:
Airflow: 380 m³/h (223 cfm)
Pressure: 96 mbar
Electrical Data:
Voltage: 100-230 V, single-phase, 50/60 Hz
Current consumption: 12.5 A / 1.1 kW
Noise Level:
Volume: < 60 dBA (at typical operating speed)
Filter Technology:
Pre-filter: DeepPleat DUO with a surface area of approx. 12 m², Efficiency F8 (95% at 0.9 microns)
HEPA Filter: Efficiency of 99.997% at 0.3 microns
Activated Carbon Filter: 15 kg of treated activated carbon
Additional Features:
Intelligent Operating System (iQ): Provides real-time information and allows downloading of performance and operating parameters for evaluation.
Reverse Flow Air (RFA) Technology: Reduces air speed and changes air direction to direct larger particles into the separation chamber and improve filter performance.
Automatic Flow Control (AFC): Allows presetting of optimal airflow for specific applications and helps reduce noise levels.
Multi-Voltage Sensing (MVS): Automatically detects local voltage and adjusts accordingly.
High-Contrast Display: Allows clear display of real-time data.
Independent Filter Monitoring: Monitors the condition of the filters and issues warnings as needed.
Remote Diagnosis via USB: Enables remote monitoring and diagnosis of the device.
| Condition | Used |
| Age rating | No age restriction |

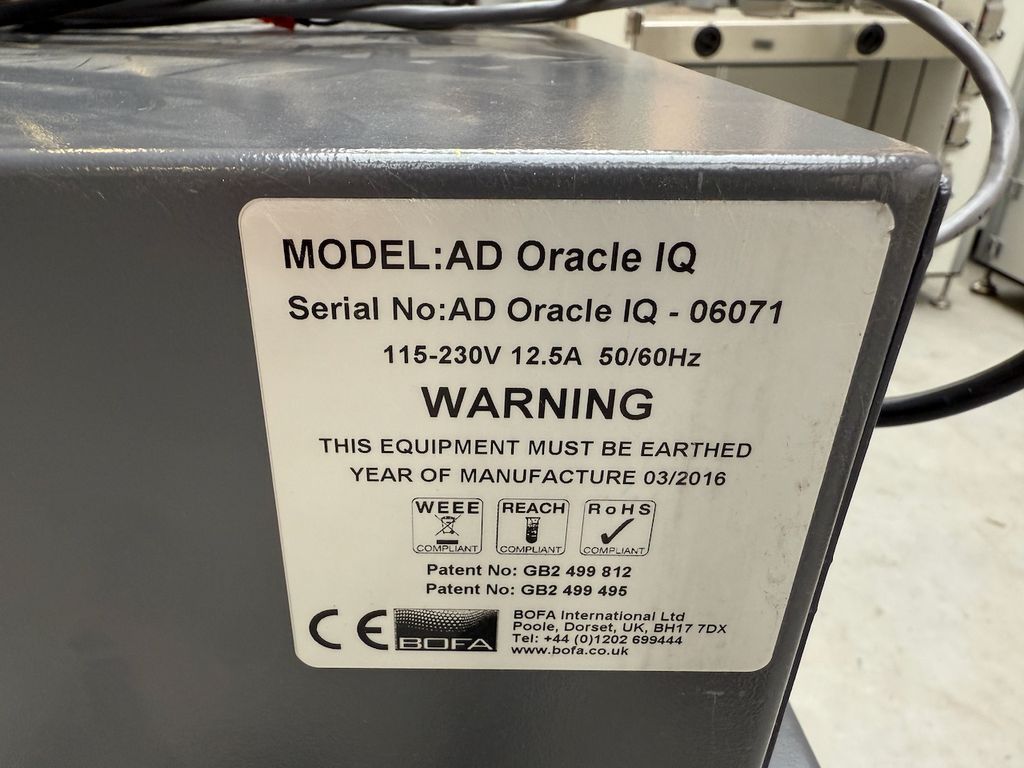

| Model | AD Oracle IQ |
| Manufacturer | BOFA |
| Content | 1 piece |
| Weight | 100000 g |
| Dimensions | 800×600×1200mm |
| Item ID | 1234595185 |
| Item ID | 1234595185 |
BOFA
BOFA AD Oracle IQ high-performance laser fume extractor
Item number KRE-125
EAN
Condition Used
Available quantity
${ $store.getters.currentItemVariation.stock.net }
EUR 2,500.00
*
Content
1 piece
immediately available
