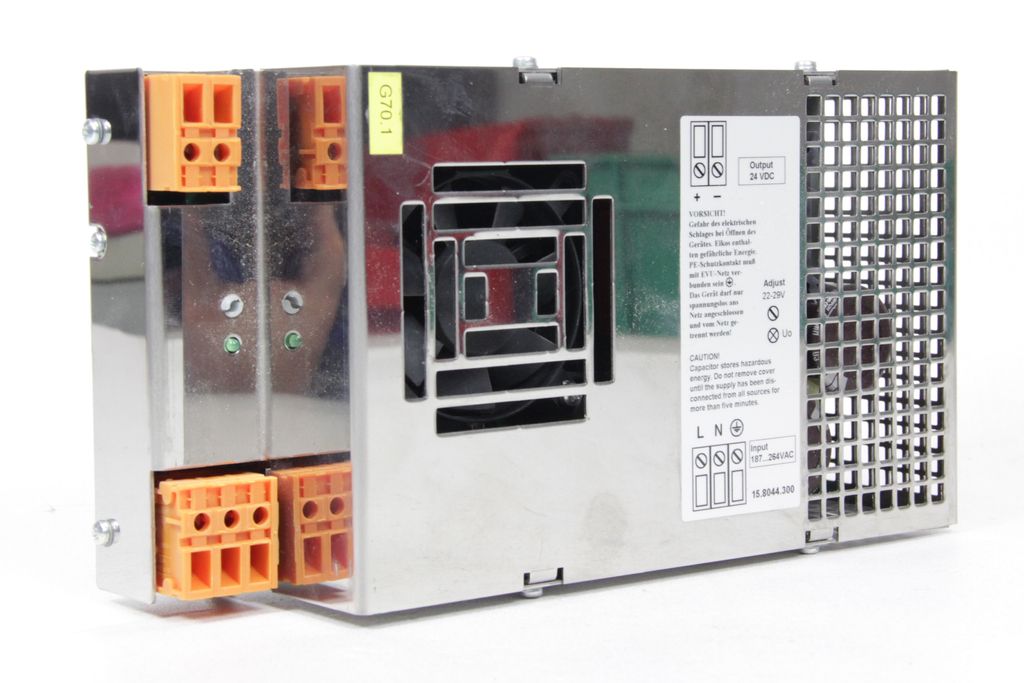

AC - DC Switching Regulator - Primary Switched Single Output Voltage

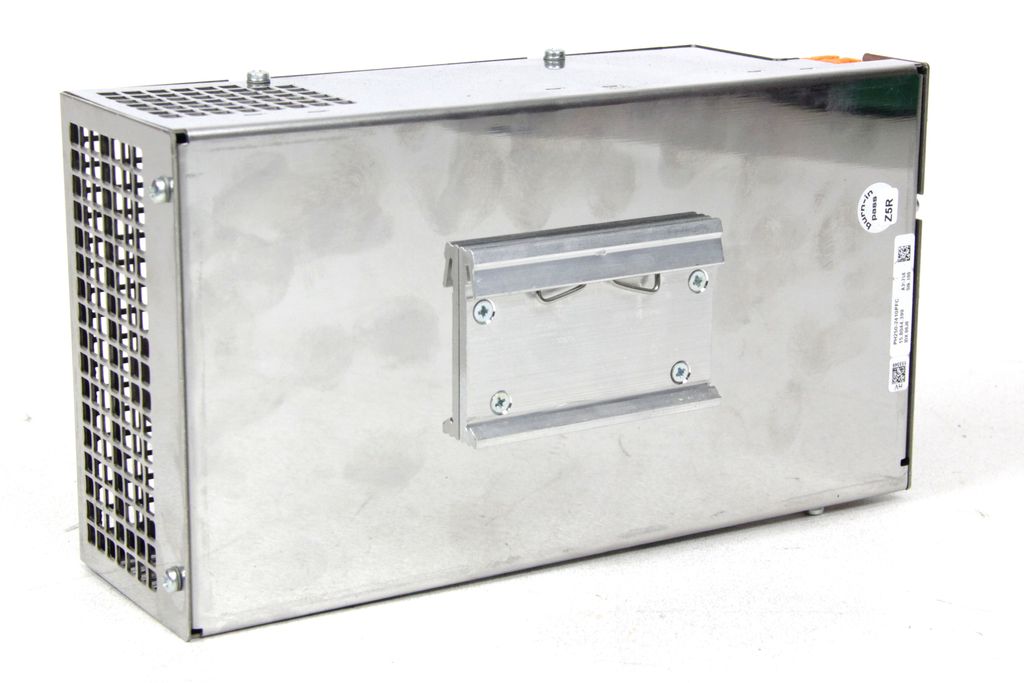

- Mounting options for standard rail
- Input 187...264VAC
- Overtemperature protection
- Output permanently short-circuit proof and SELV according to EN 60950
- Operable in any installation position due to integrated fan
- EMC mains feedback (PFC) EN 61000-3-2 Class A
Item from plant decommissioning
- Mounting options for standard rail
- Input 187...264VAC
- Overtemperature protection
- Output permanently short-circuit proof and SELV according to EN 60950
- Operable in any installation position due to integrated fan
- EMC mains feedback (PFC) EN 61000-3-2 Class A
Item from plant decommissioning
INPUT
Mains voltage range Ue AC 187 – 264 V, 50/60 Hz
Efficiency > 85%
Inrush current limitation ≤ 25 Apeak typical – in cold state
≤ 30 Apeak typical – in warm state
Internal fuse 8 AT / 250 V
OUTPUT
Nominal voltage tolerance +8% / -0%
Max output power 240 W
Operating indicator green LED for Ua
Ripple < 50 mVpp
Noise voltage < 100 mVpp typical (bandwidth 20 MHz)
Temperature coefficient ≤ 0.025% / K
On/off behavior no overshoot of Ua (soft-start)
Turn-on delay ≤ 2 s
Rise time typical 50 ms
REGULATION
Line regulation < 0.1% for Ua at Uemin – Uemax
Load regulation < 0.4% for Ua at Ia 0 – 100%
Regulation time < 0.5 ms at Ia 20 – 80%
PROTECTION AND MONITORING
Overvoltage protection 125% ±5% Unom, adjusted to set Ua, automatically recurring
Current limitation 110 – 140% Inom, straight characteristic curve, output permanently short-circuit proof
Overtemperature protection Shutdown at excessive internal temperature, reactivation with hysteresis
Mains failure bridging typical 30 ms
Mains voltage range Ue AC 187 – 264 V, 50/60 Hz
Efficiency > 85%
Inrush current limitation ≤ 25 Apeak typical – in cold state
≤ 30 Apeak typical – in warm state
Internal fuse 8 AT / 250 V
OUTPUT
Nominal voltage tolerance +8% / -0%
Max output power 240 W
Operating indicator green LED for Ua
Ripple < 50 mVpp
Noise voltage < 100 mVpp typical (bandwidth 20 MHz)
Temperature coefficient ≤ 0.025% / K
On/off behavior no overshoot of Ua (soft-start)
Turn-on delay ≤ 2 s
Rise time typical 50 ms
REGULATION
Line regulation < 0.1% for Ua at Uemin – Uemax
Load regulation < 0.4% for Ua at Ia 0 – 100%
Regulation time < 0.5 ms at Ia 20 – 80%
PROTECTION AND MONITORING
Overvoltage protection 125% ±5% Unom, adjusted to set Ua, automatically recurring
Current limitation 110 – 140% Inom, straight characteristic curve, output permanently short-circuit proof
Overtemperature protection Shutdown at excessive internal temperature, reactivation with hysteresis
Mains failure bridging typical 30 ms
| Condition | Used |
| Age rating | No age restriction |

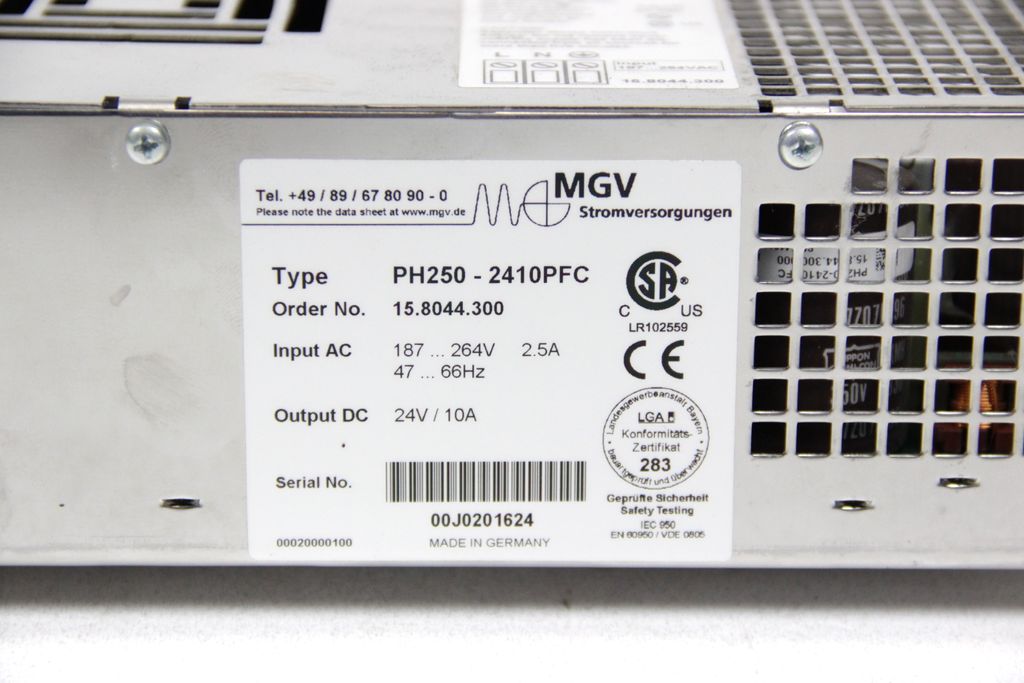

| Model | PH250-2410PFC |
| Manufacturer | MGV Stromversorgungen GmbH |
| Content | 1 piece |
| Weight | 2000 g |
| Net weight | 1150 g |
| Item ID | 1234586277 |
| Item ID | 1234586277 |
Any further Questions? Just fill the form below and let us know how we can help you.
MGV Stromversorgungen GmbH
MGV PH250-2410PFC 1Ph switching power supply AC-DC switch regulator 24VDC 10A
Item number VN-18150
EAN
Condition Used
Available quantity
2
EUR 74.01
*
Content
1 piece
Unit price
EUR 74.01 / piece
immediately available
* Incl. VAT excl. Shipping
