For mounting on flat or high DIN rail, insulating housing made of polyamide 6.6, shatterproof and creepage-resistant. In the disconnect lever fuse terminal UK 5-HESI, the G-fuse inserts (5 x 20, 5 x 25, 5 x 30) are touch-safe inserted into the non-removable disconnect lever. The screw cap fuse terminal UK 10-DREHSI is designed for fuses 5 x 20 mm with and without indicator. The fuse is inserted into the terminal with the screw cap, closed housing, no cover required. Fuse terminal for G-fuse insert, cross-section: 0.2 - 4 mm², AWG: 26 - 10, width: 8.2 mm, color: black
including indicator light 24 - 15-30 V
Item from plant decommissioning
including indicator light 24 - 15-30 V
Item from plant decommissioning
Terminal:
Nominal cross-section 4 mm² Color black Insulating material PA Flammability class according to UL 94 V0 Fuse G / 5 x 20 / 5 x 25 / 5 x 30 Type of fuse Glass / Ceramic / ... Rated impulse voltage 8 kV Pollution degree 3 Overvoltage category III Insulating material group I Connection according to standard IEC 60947-7-3 Maximum load current 6.3 A (The current is determined by the inserted fuse.) Rated current IN 6.3 A Rated voltage UN 800 V (as fuse terminal) Rated operating voltage 250 V Open side wall No Number of poles 1
Indicator light:
Color transparent
Nominal cross-section 4 mm² Color black Insulating material PA Flammability class according to UL 94 V0 Fuse G / 5 x 20 / 5 x 25 / 5 x 30 Type of fuse Glass / Ceramic / ... Rated impulse voltage 8 kV Pollution degree 3 Overvoltage category III Insulating material group I Connection according to standard IEC 60947-7-3 Maximum load current 6.3 A (The current is determined by the inserted fuse.) Rated current IN 6.3 A Rated voltage UN 800 V (as fuse terminal) Rated operating voltage 250 V Open side wall No Number of poles 1
Indicator light:
Color transparent
| Condition | Used |
| Age rating | No age restriction |
| Model | UK 5-HESI + Leuchtanzeige 24 |
| Manufacturer | Phoenix Contact |
| Content | 1 piece |
| Weight | 30 g |
| Item ID | 1234577190 |
| Item ID | 1234577190 |
Phoenix Contact

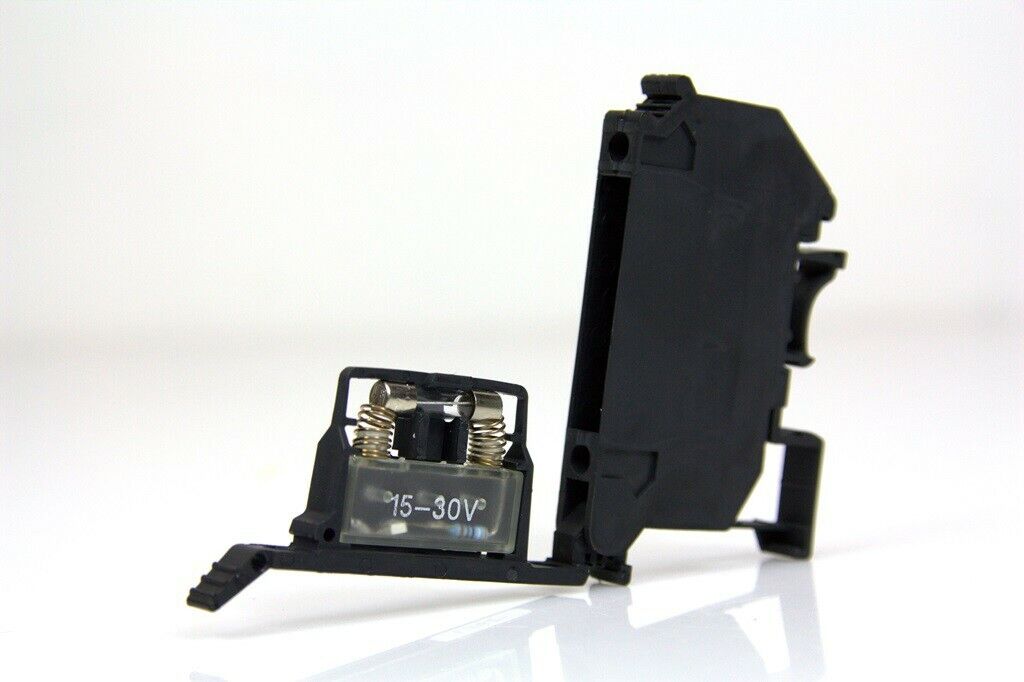

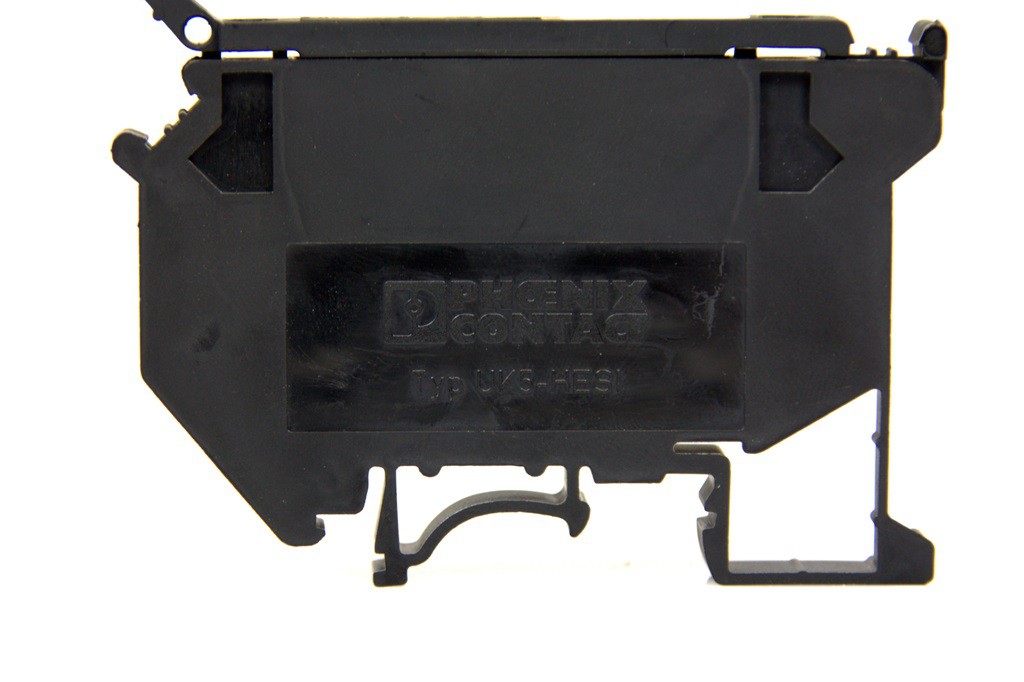

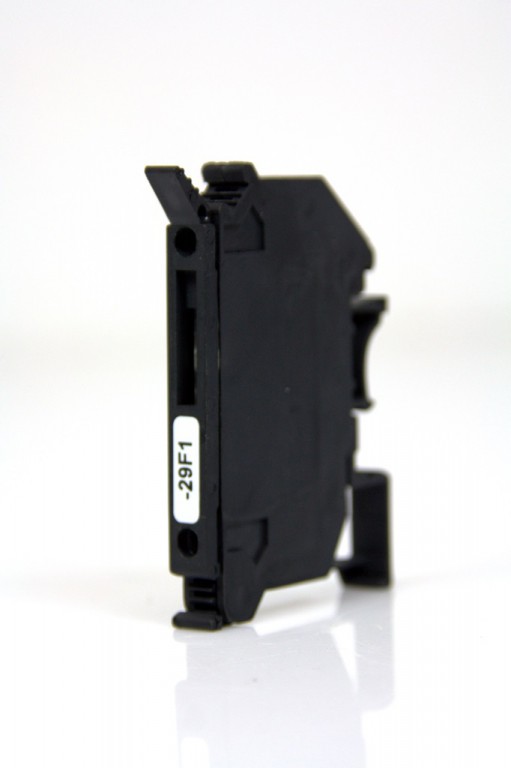

Phoenix Contact fuse terminal block UK 5-HESI + light indicator 24 15-30V
Item number 3004100 + 2202220
EAN 4017918090623
Condition Used
Available quantity
${ $store.getters.currentItemVariation.stock.net }
EUR 2.45
*
Content
1 piece
immediately available
