- Suitable for surface mounting

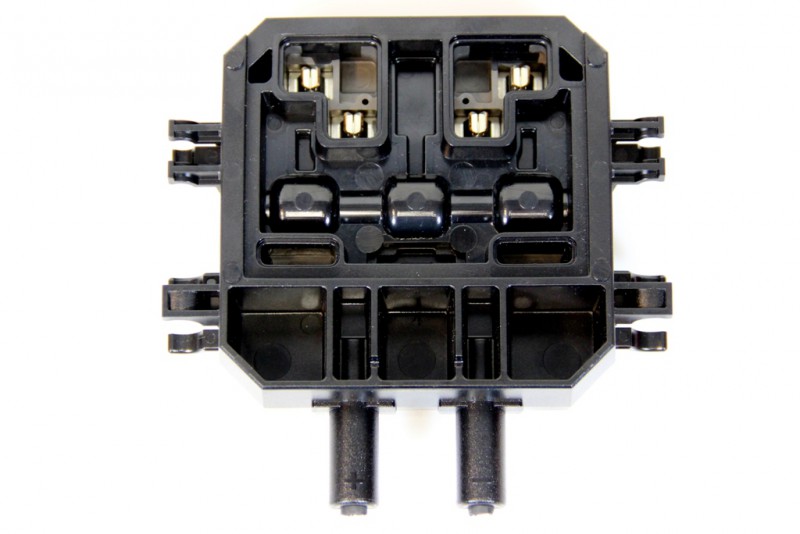

- Diodes sealed in the housing

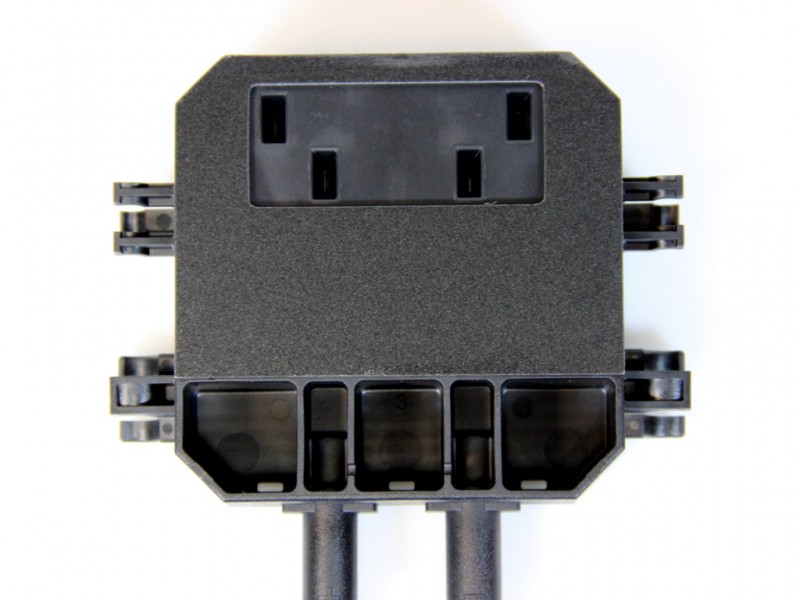

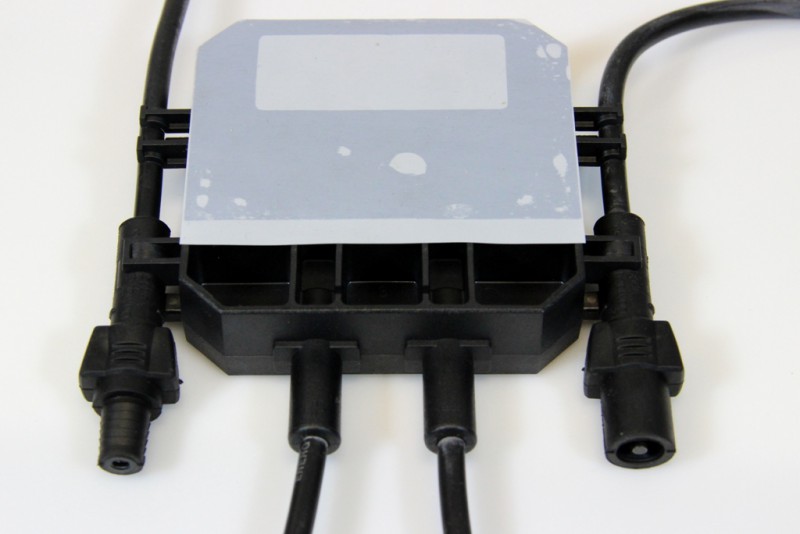

- Adhesive pad for attachment on the back

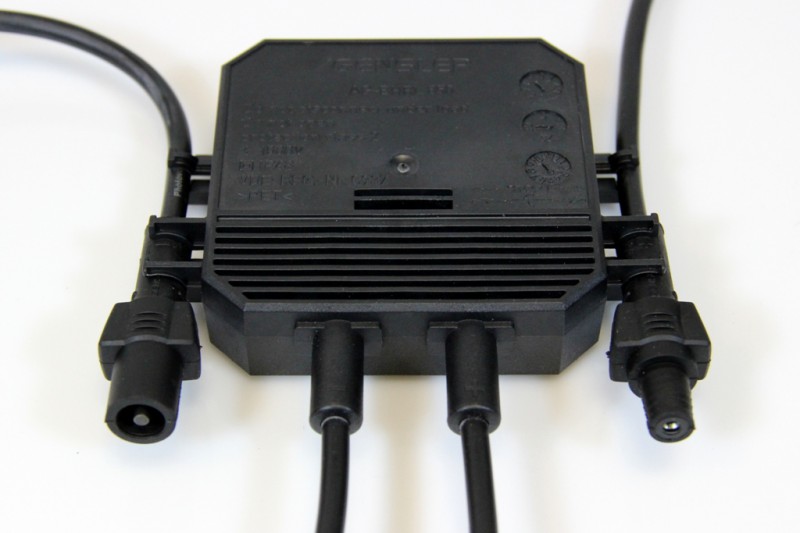

- Plug holder on the side of the housing
- Diodes sealed in the housing
- Adhesive pad for attachment on the back
- Plug holder on the side of the housing
- Operating voltage max.: 1000 VDC
- Rated current: 20 A
- Operating temperature: -40 °C ..+85 °C
- Protection class: IP65
- Cable cross-section: 4 mm²
- Connector: MC3
- Cable length negative pole: 720 mm
- Cable length positive pole: 1120 mm
- Installed diodes: 3x Schottky diode 12A 40V - SB1240
- Housing size: WxDxH - 83x83x24 mm
- Rated current: 20 A
- Operating temperature: -40 °C ..+85 °C
- Protection class: IP65
- Cable cross-section: 4 mm²
- Connector: MC3
- Cable length negative pole: 720 mm
- Cable length positive pole: 1120 mm
- Installed diodes: 3x Schottky diode 12A 40V - SB1240
- Housing size: WxDxH - 83x83x24 mm
| Condition | New |
| Age rating | No age restriction |

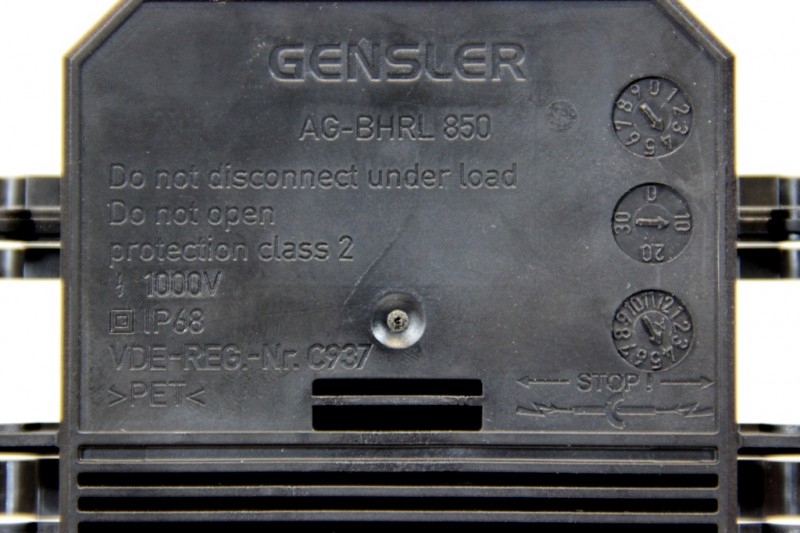

| Model | AG-BHRL 850 |
| Manufacturer | GENSLER |
| Content | 1 each |
| Weight | 500 g |
| Item ID | 1234572877 |
| Item ID | 1234572877 |
GENSLER

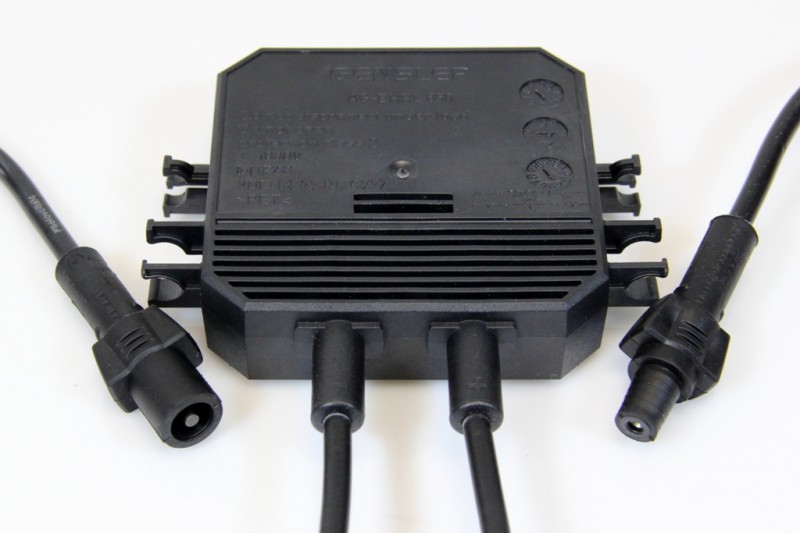

PV module junction box branch box 3 diodes 4mm² cable MC3 connector 20A 1000VDC
Item number VN-3293
EAN
Condition New
Available quantity
${ $store.getters.currentItemVariation.stock.net }
EUR 8.91
*
Content
1 each
Unit price
EUR 8.91 / each
immediately available
