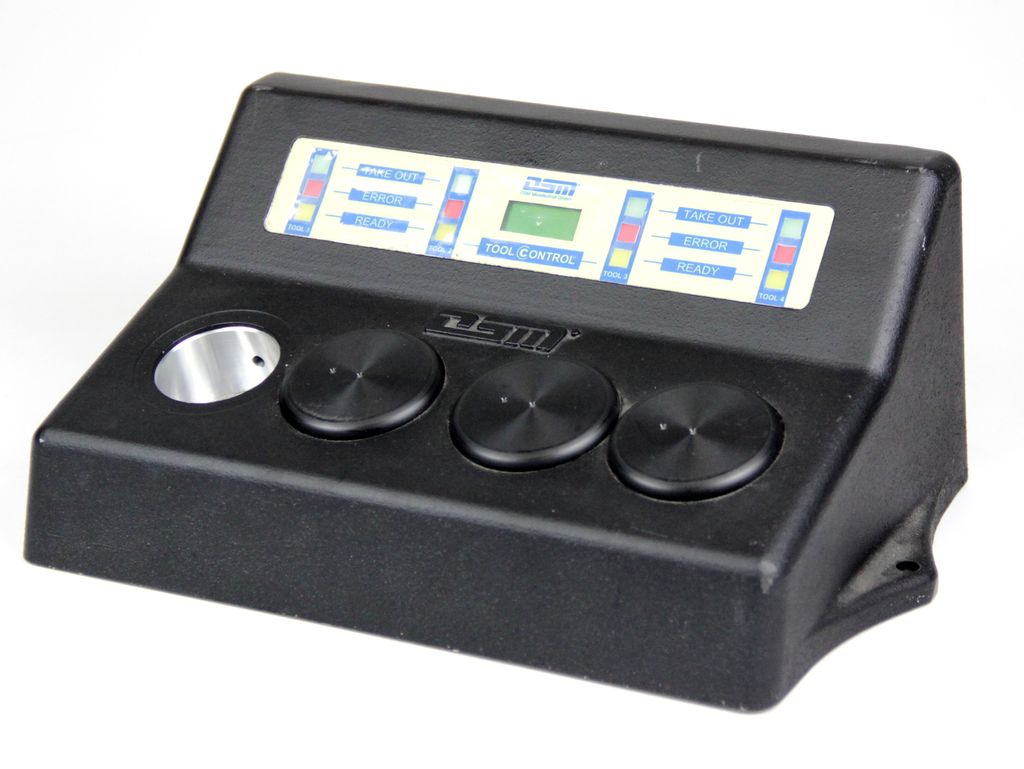

The intelligent ToolControl detects when a tool (e.g., bit, socket) is removed. It then automatically calls up the correct sequence program. With external specifications, ToolControl shows the assembler the tool currently required in the assembly process. The connected tool change boxes are recognized by the DSM control system and communicate via the DSM system bus as well as via Profibus with external specifications by an external control. ToolControl is available as a basic system and as an expansion system. When networking multiple devices, a basic system is combined with the corresponding number of expansions. Detection and assignment are automatic. The system can be expanded to up to 32 tool slots. The plastic tool inserts are part of the delivery. To ensure mix-up-proof handling, an adaptation of the insert sockets to the tool is necessary. This can be done by the customer or by DSM.
Features
⋅ Console housing made of aluminum cast with mounting plate
⋅ Program selection when removing the tool or specifying tool removal
⋅ Processor-monitored tool removal

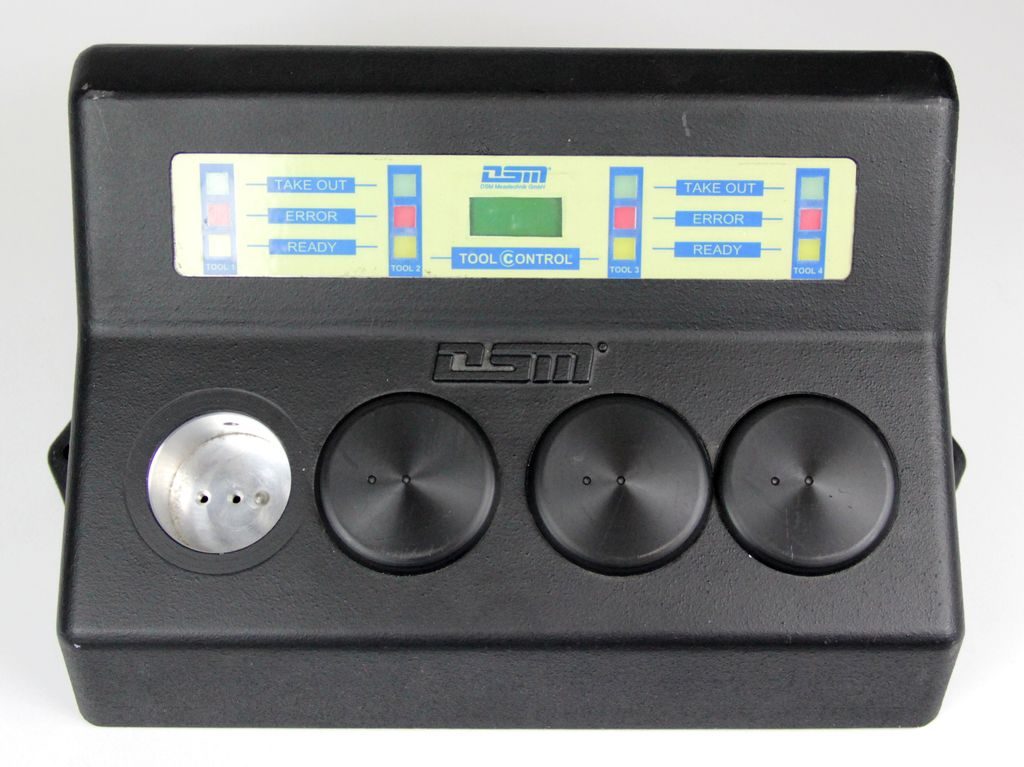

⋅ Status messages via LCD text display
⋅ LED status display for each tool
⋅ Four tool slots
⋅ Cascadeable up to a maximum of 32 tools
⋅ Customized plastic tool inserts

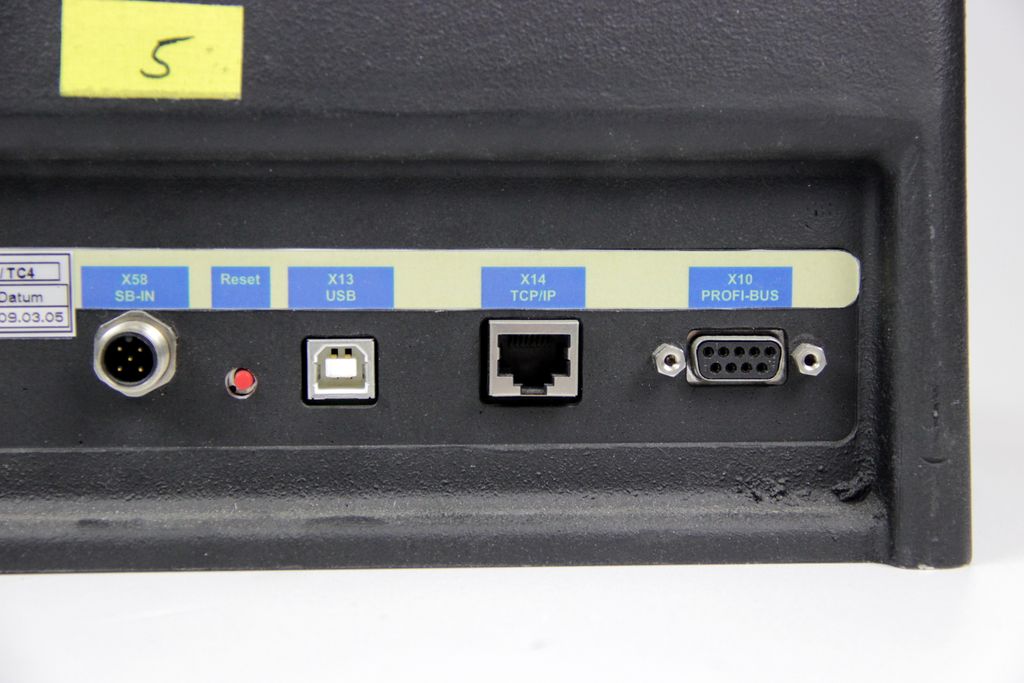

⋅ USB connection for interface configuration
⋅ System bus interface for communication with the control (Basic, Classic, Pro)

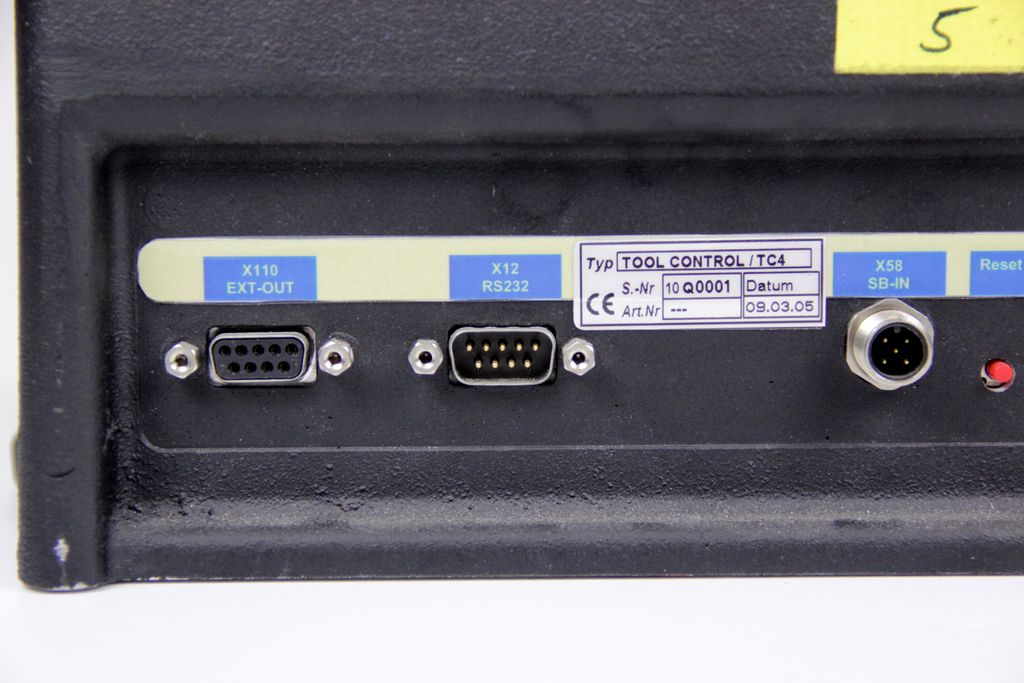

⋅ Expansion interface for additional modules

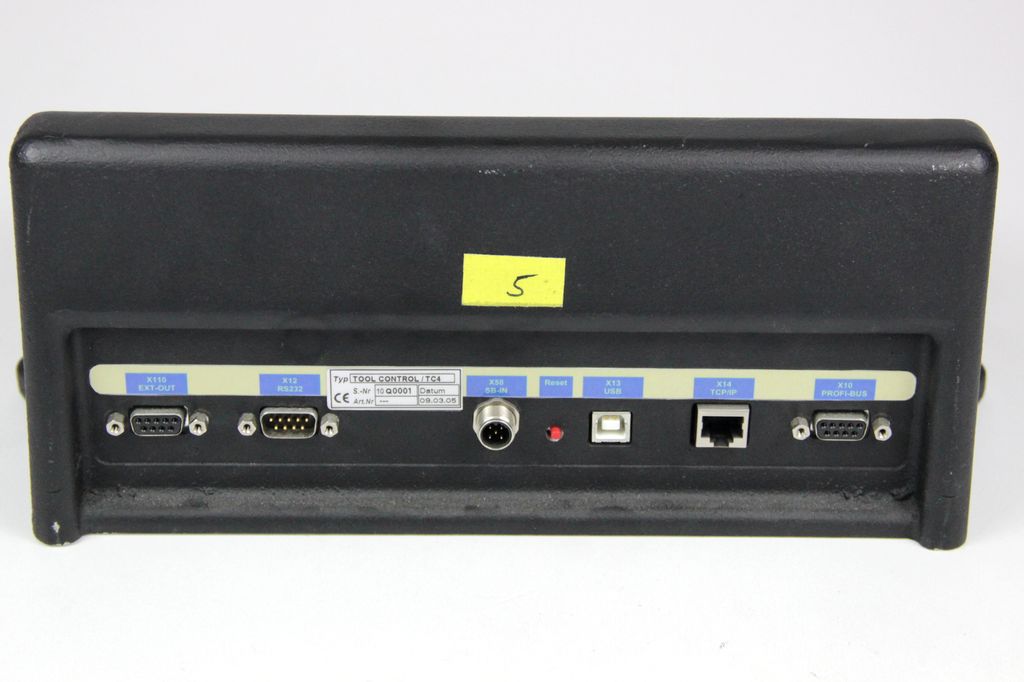

⋅ Profibus, Ethernet interface for integration into the PLC
Features
⋅ Console housing made of aluminum cast with mounting plate
⋅ Program selection when removing the tool or specifying tool removal
⋅ Processor-monitored tool removal
⋅ Status messages via LCD text display
⋅ LED status display for each tool
⋅ Four tool slots
⋅ Cascadeable up to a maximum of 32 tools
⋅ Customized plastic tool inserts
⋅ USB connection for interface configuration
⋅ System bus interface for communication with the control (Basic, Classic, Pro)
⋅ Expansion interface for additional modules
⋅ Profibus, Ethernet interface for integration into the PLC
Tool stations: 4
OuterØ tool: max40 mm
Article No.: DSM-200400
Width: 334 mm
Depth: 198.6 mm
Height: 130 mm
OuterØ tool: max40 mm
Article No.: DSM-200400
Width: 334 mm
Depth: 198.6 mm
Height: 130 mm
| Condition | Used |
| Age rating | No age restriction |
| Model | TC4 - DSM-200400 |
| Manufacturer | DSM Messtechnik GmbH |
| Content | 1 piece |
| Weight | 6000 g |
| Dimensions | 199×314×130mm |
| Item ID | 1234584549 |
| Item ID | 1234584549 |
DSM Messtechnik GmbH
DSM Measurement Technology TC4 Tool Control Tool Change Box 4 Slots maxØ 40 mm
Item number VN-16066
EAN
Condition Used
Available quantity
${ $store.getters.currentItemVariation.stock.net }
EUR 268.95
*
Content
1 piece
immediately available
