Circuit breakers 3RV1 are compact, current-limiting circuit breakers optimized for consumer branches. The breakers are used for switching and protecting three-phase motors and also for other consumers.

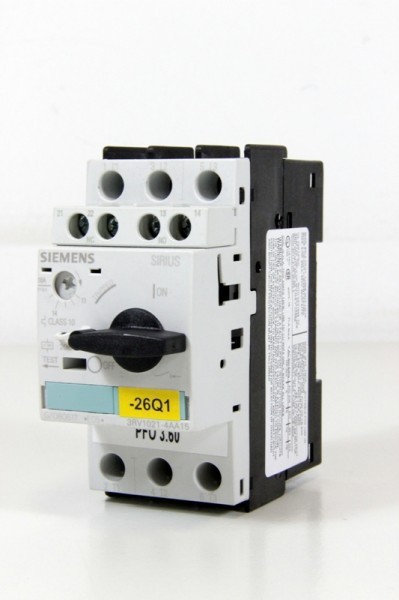

Example illustration
Example illustration
Overload release current setting 0.14 ..0.2 A
Setting range of the instantaneous short-circuit release 2.6 ..2.6 A
Phase failure sensitive
Release technology thermomagnetic
Rated operating voltage 690 ..690 V
Rated operational current Iu 0.2 A
Rated operational power at AC-3, 400 V 0.06 kW
Connection type main circuit screw connection
Device construction built-in device fixed installation technology
Number of poles 3
Rated ultimate short-circuit breaking capacity Icu at 400 V, AC 100 kA
Degree of protection (IP) IP20
Setting range of the instantaneous short-circuit release 2.6 ..2.6 A
Phase failure sensitive
Release technology thermomagnetic
Rated operating voltage 690 ..690 V
Rated operational current Iu 0.2 A
Rated operational power at AC-3, 400 V 0.06 kW
Connection type main circuit screw connection
Device construction built-in device fixed installation technology
Number of poles 3
Rated ultimate short-circuit breaking capacity Icu at 400 V, AC 100 kA
Degree of protection (IP) IP20
| Technical characteristic | Value |
|---|---|
| Condition | New |
| Age rating | No age restriction |
| Model | 3RV1021-0BA10 |
| Manufacturer | SIEMENS |
| Content | 1 piece |
| Weight | 300 g |
| Item ID | 1234575613 |
| Item ID | 1234575613 |
SIEMENS
Siemens circuit breaker 0.14 0.20 A 3RV1021-0BA10
Item number VN-5246
EAN 4011209281011
Condition New
Available quantity
${ $store.getters.currentItemVariation.stock.net }
EUR 10.92
*
Content
1 piece
Unit price
EUR 10.92 / piece
immediately available
