For use in control cabinets Simple and quick wiring using spring-loaded terminals Particularly space-saving design Double terminals for looping through the power supply Highly visible bright LEDs for indicating operation, switching status, and function
Electrical Data Operating voltage [V] 26.5...31.6 DC Max current consumption from AS-i [mA] 50 Inputs/Outputs Number of inputs and outputs Number of digital inputs: 4 Inputs Number of digital inputs 4 Input circuitry digital inputs PNP Sensor supply of inputs AUX Voltage supply [V] 18...30 Max current load capacity total inputs [mA] 500 Input current High [mA] 6...10 Input current Low [mA] 0...2 Min switching level High signal [V] 11 Short-circuit protection digital inputs yes Environmental conditions Ambient temperature [°C] -25...70 Note on ambient temperature cRUus: -25...60 °C Protection class IP 20 Approvals / Tests EMC EN 50295 MTTF [years] 485 AS-i Characteristics AS-i version 2.1 AS-i addressing Addressing socket Extended address mode possible yes AS-i profile S-0.A.E AS-i I/O configuration [hex] 0 AS-i ID code [hex] A.E AS-i certificate 39402 Assignment of data bits Data bit D0 D1 D2 D3 Input I-1 I-2 I-3 I-4 Mechanical Data Weight [g] 142 Mounting type DIN rail mounting; modules can be lined up Materials PA Indicators / Controls Indicator Switching status LED, yellow Operation LED, green Error LED, red
| Condition | Used |
| Age rating | No age restriction |
| Model | AC2254 |
| Manufacturer | ifm electronic GmbH |
| Content | 1 piece |
| Weight | 200 g |
| Item ID | 1234584505 |
| Item ID | 1234584505 |
ifm electronic GmbH

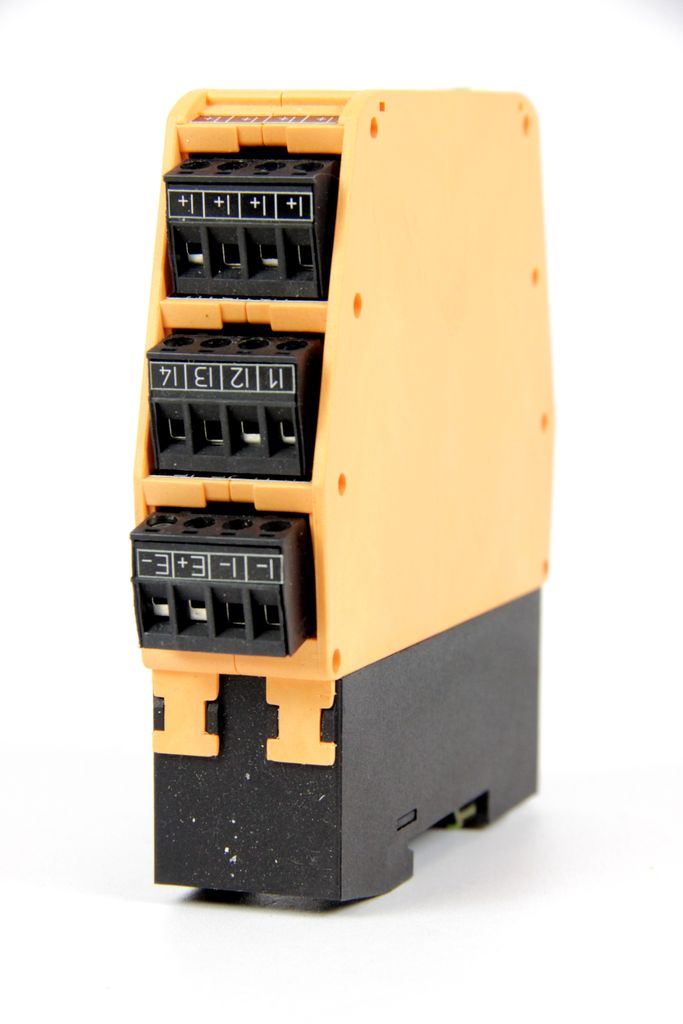

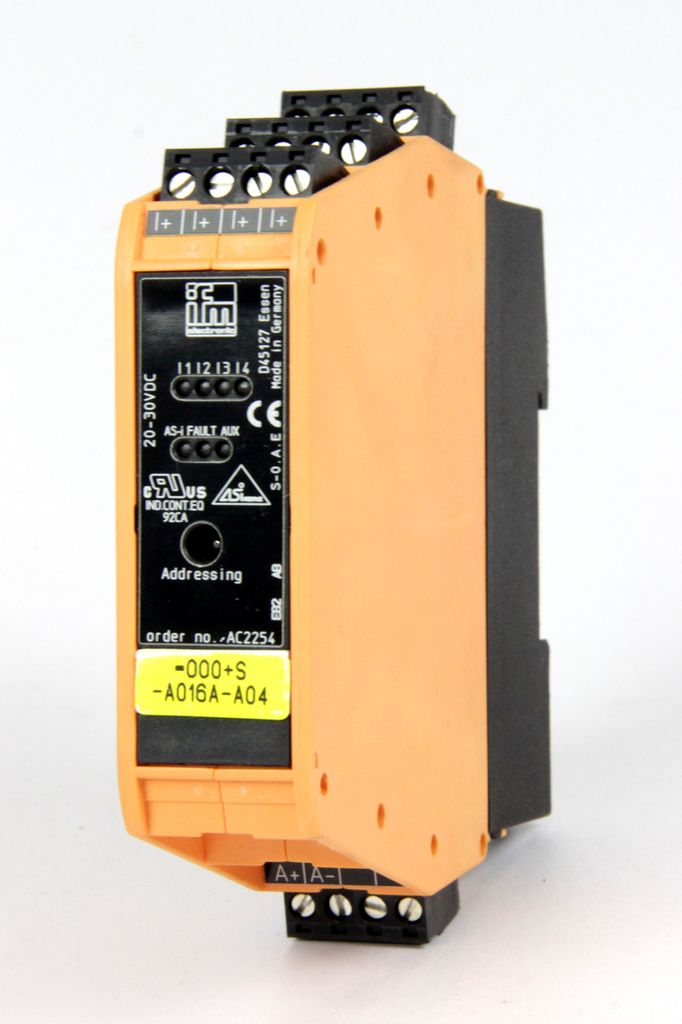

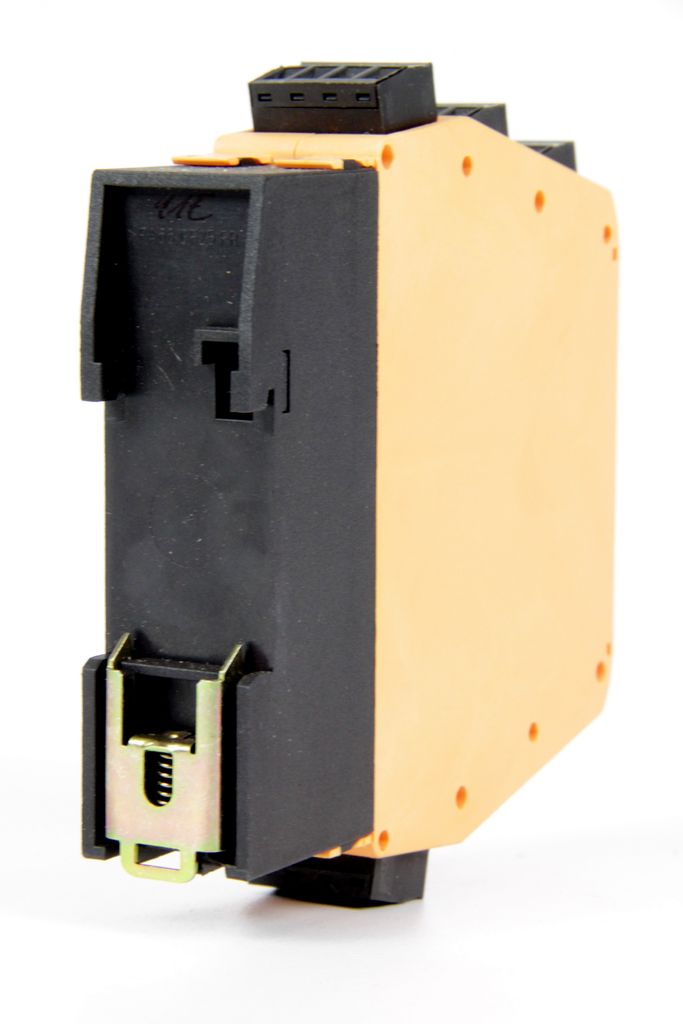

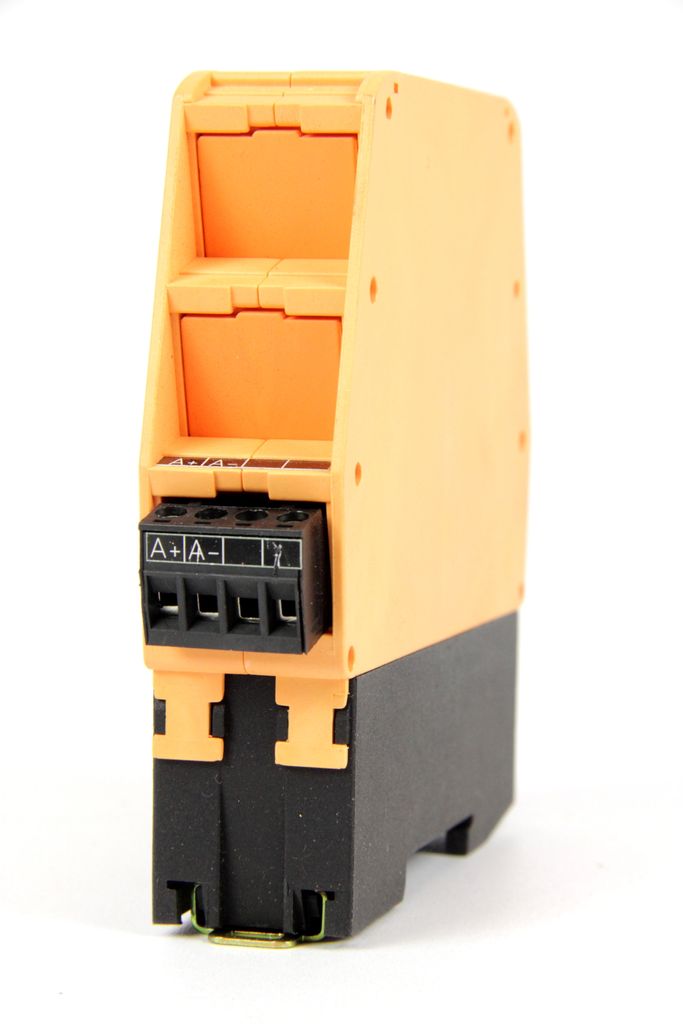

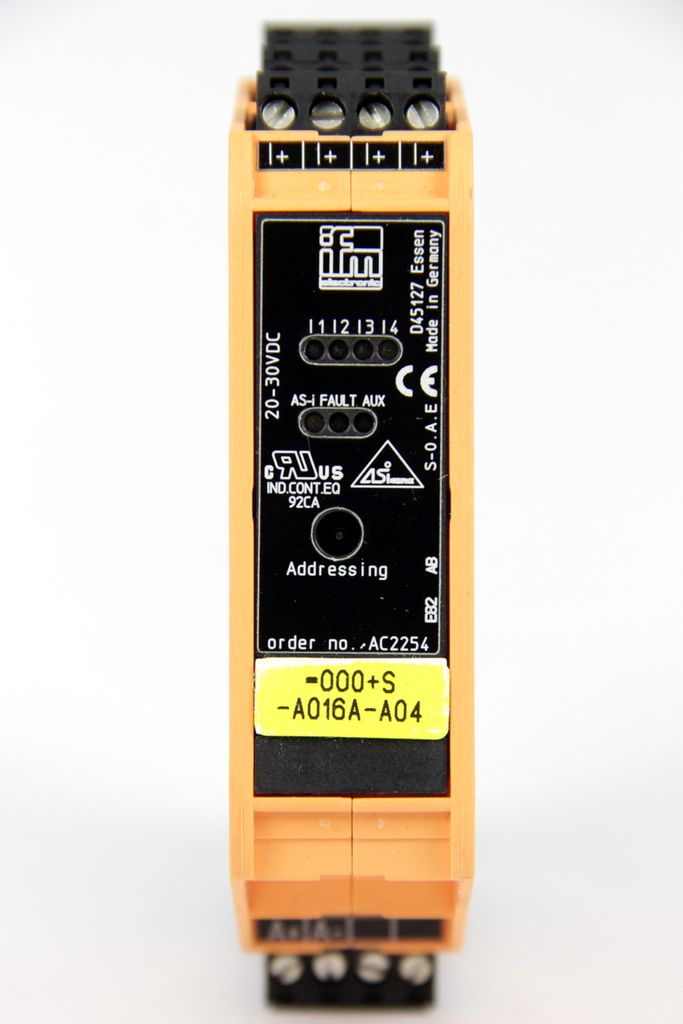

ifm electronic Active AS-i Module AS-Interface SmartL25 4DI C AC2254
Item number VN-16022
EAN
Condition Used
Available quantity
${ $store.getters.currentItemVariation.stock.net }
EUR 26.45
*
Content
1 piece
Unit price
EUR 26.45 / piece
immediately available
