Single or dual-channel contact expansion, 5 NO contacts, 1 NC contact, 1 feedback loop, together with base unit up to Cat4 PL e according to EN ISO 13849 safe separation, pluggable connection terminals, width: 35 mm
Item from plant decommissioning
Item from plant decommissioning
Input data
Nominal input voltage UN 24 V AC/DC Input voltage range relative to UN 0.8 ..1.1 Input current at UN typical 47 mA (per channel) Response time typical 20 ms Drop-out time typical 20 ms Simultaneity input 1/2 ∞ Status indicator LED green
Output data

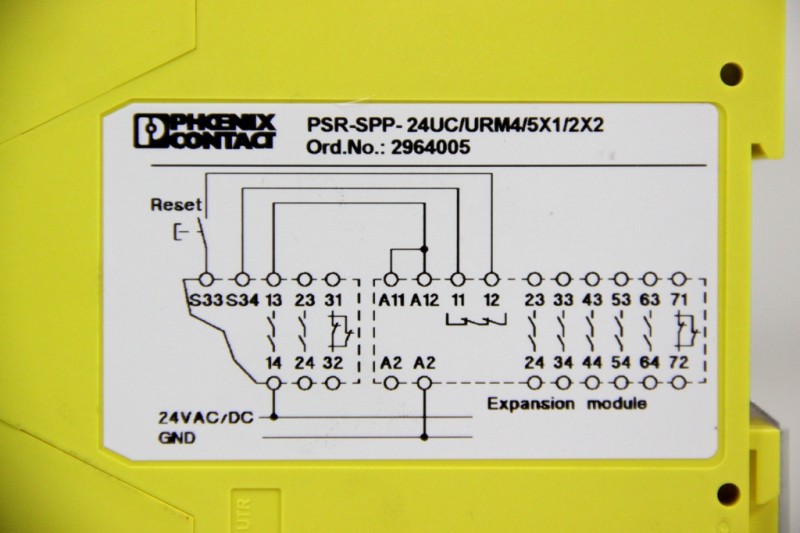

Contact configuration 5 enabling current paths 1 signaling current path 1 feedback current path Contact material AgSnO2, + 0.2 µm Au Switching voltage minimum 15 V AC/DC Switching voltage maximum 250 V AC/DC Continuous current limit 6 A (normally closed) 3 A (normally open contact 11/12) Minimum inrush current 25 mA Maximum inrush current 6 A 3 A (normally open contact 11/12) Quadratic sum current 72 A2 (ITH2 = I12 + I22 + ..+ I52) Switching capacity (resistive load) maximum 144 W (24 V DC, τ = 0 ms, normally open contact 11/12: 72 W) 288 W (48 V DC, τ = 0 ms, normally open contact 11/12: 144 W) 110 W (110 V DC, τ = 0 ms) 88 W (220 V DC, τ = 0 ms) 1500 VA (250 V AC, τ = 0 ms, normally open contact 11/12: 750 VA) Switching capacity (inductive load) maximum 42 W (24 V DC, τ = 40 ms) 42 W (48 V DC, τ = 40 ms) 42 W (110 V DC, τ = 40 ms) 42 W (220 V DC, τ = 40 ms) Minimum switching capacity 0.4 W Output fuse 6 A fast C6 (24 V AC/DC) automatic
Nominal input voltage UN 24 V AC/DC Input voltage range relative to UN 0.8 ..1.1 Input current at UN typical 47 mA (per channel) Response time typical 20 ms Drop-out time typical 20 ms Simultaneity input 1/2 ∞ Status indicator LED green
Output data
Contact configuration 5 enabling current paths 1 signaling current path 1 feedback current path Contact material AgSnO2, + 0.2 µm Au Switching voltage minimum 15 V AC/DC Switching voltage maximum 250 V AC/DC Continuous current limit 6 A (normally closed) 3 A (normally open contact 11/12) Minimum inrush current 25 mA Maximum inrush current 6 A 3 A (normally open contact 11/12) Quadratic sum current 72 A2 (ITH2 = I12 + I22 + ..+ I52) Switching capacity (resistive load) maximum 144 W (24 V DC, τ = 0 ms, normally open contact 11/12: 72 W) 288 W (48 V DC, τ = 0 ms, normally open contact 11/12: 144 W) 110 W (110 V DC, τ = 0 ms) 88 W (220 V DC, τ = 0 ms) 1500 VA (250 V AC, τ = 0 ms, normally open contact 11/12: 750 VA) Switching capacity (inductive load) maximum 42 W (24 V DC, τ = 40 ms) 42 W (48 V DC, τ = 40 ms) 42 W (110 V DC, τ = 40 ms) 42 W (220 V DC, τ = 40 ms) Minimum switching capacity 0.4 W Output fuse 6 A fast C6 (24 V AC/DC) automatic
| Condition | Used |
| Age rating | No age restriction |
| Model | PSR-SPP- 24UC/URM4/5X1/2X2 |
| Manufacturer | Phoenix Contact |
| Content | 1 piece |
| Weight | 300 g |
| Item ID | 1234571000 |
| Item ID | 1234571000 |
Phoenix Contact

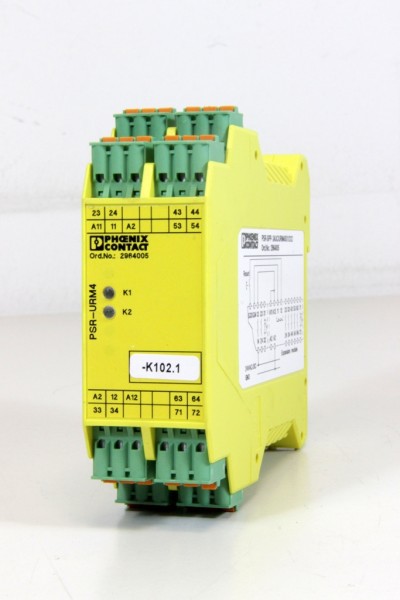

Phoenix Contact expansion module PSR-SPP- 24UC/URM4/5X1/2X2 2964005
Item number 2964005
EAN 4017918904739
Condition Used
Available quantity
${ $store.getters.currentItemVariation.stock.net }
EUR 13.45
*
Content
1 piece
Unit price
EUR 13.45 / piece
immediately available
