Preventa Safety Relay XPS This safety relay is used for monitoring emergency stop/halt and safety position switches An input for the feedback loop (EDM) and a start button is available The device meets the safety level requirements up to PL e in category 4 and SIL 3 Typical applications are STO or stop category 0 (direct shutdown) For safety circuits, three relay closing contacts and a transistor output for signaling are available Two LEDs indicate the status Mounting is done on the DIN rail The supply voltage is 24 VAC/DC and the wiring connection is made via removable screw terminals.

Output type: Non-delayed relays, 3 NO circuits, potential-freeNumber of additional circuits: 1 semiconductor outputRated operating voltage: 24 V AC -20 - 10 % 24 V DC -20 - +20 %

Condition Used
Age rating No age restriction
Model XPSAC5121P
Manufacturer TELEMECANIQUE
Content 1 piece
Weight 200 g
Dimensions 150×100×100mm
Item ID 1234591127
Item ID 1234591127

Any further Questions? Just fill the form below and let us know how we can help you.

TELEMECANIQUE

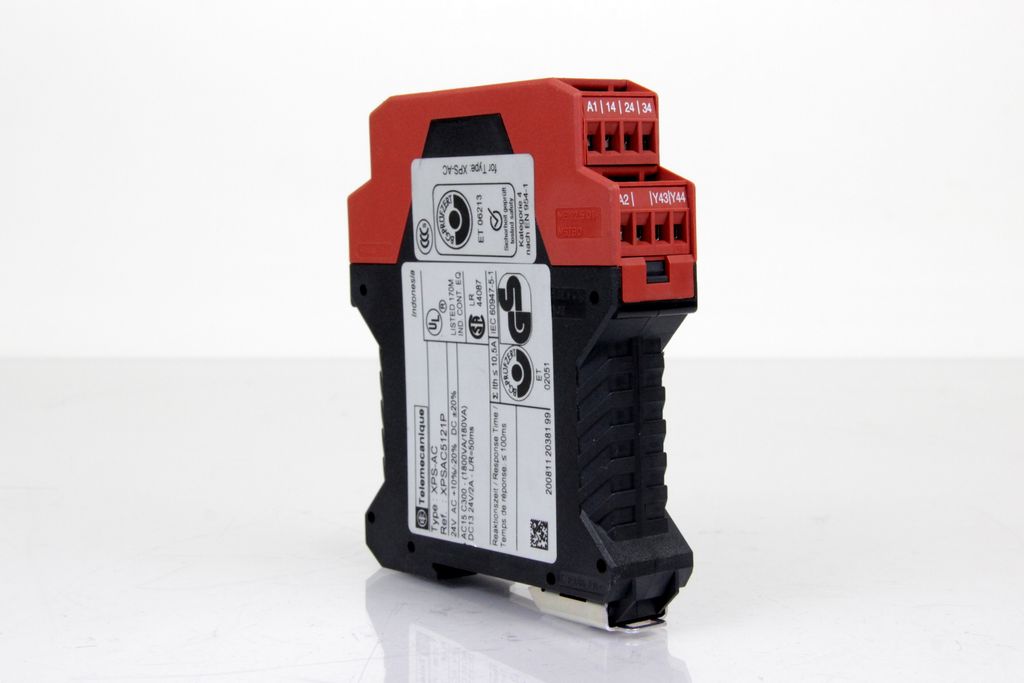

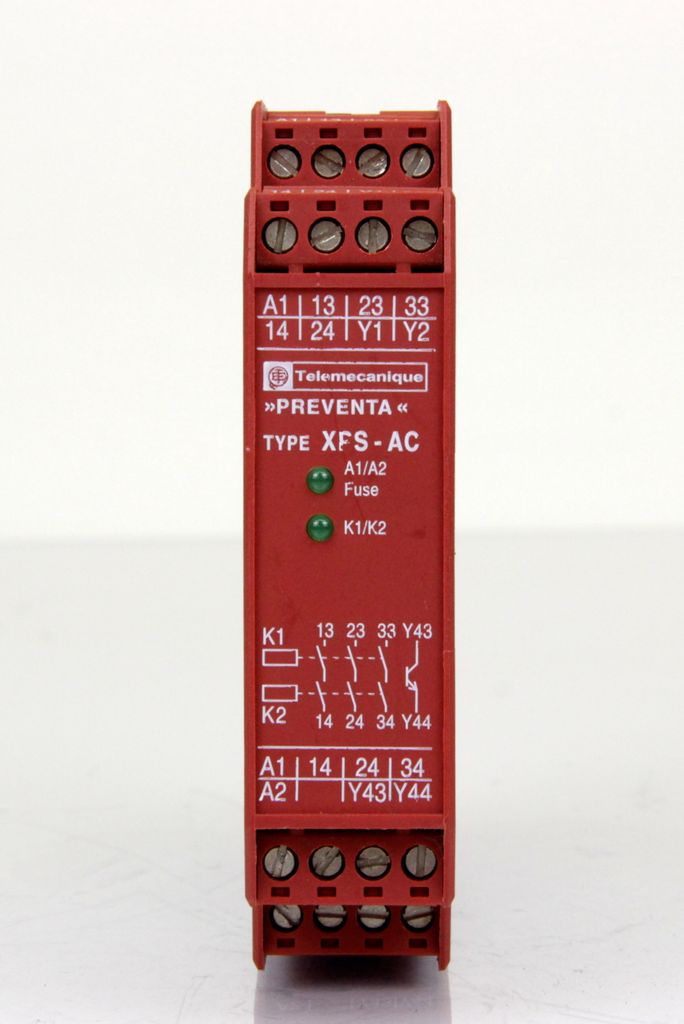

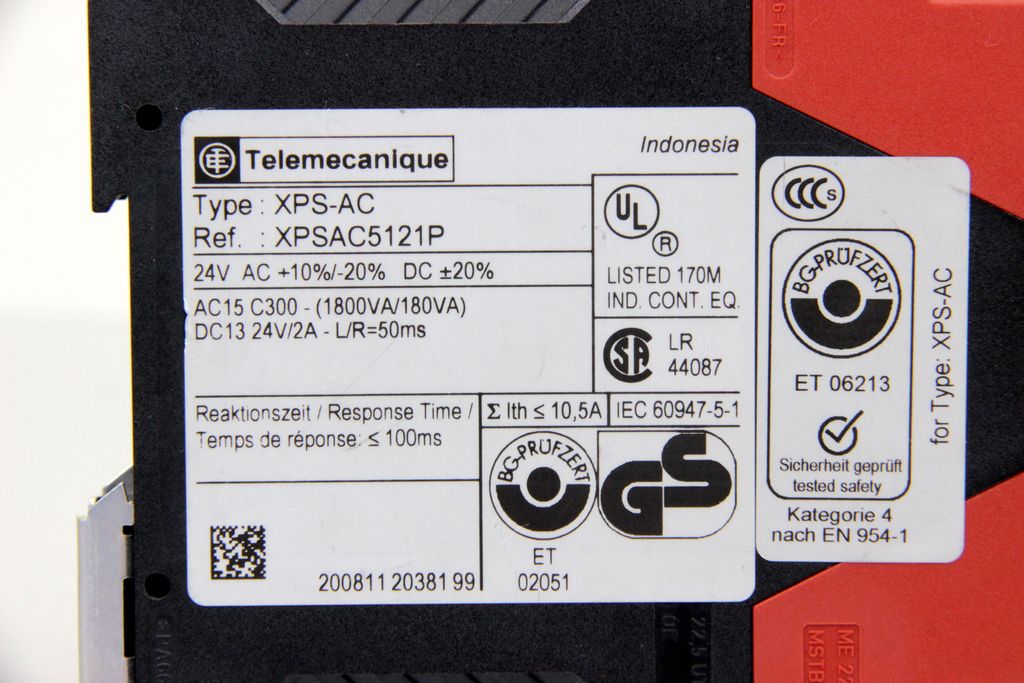

Telemecanique XPSAC5121P emergency stop module 3S 24 VAC/DC


Item number KKK-1285
EAN
Condition Used
Available quantity
3
EUR 49.00 *
Content 1 piece
Unit price EUR 49.00 / piece
immediately available
* Incl. VAT excl. Shipping
