Like-new condition - The controller comes from a new plant construction that was never put into operation

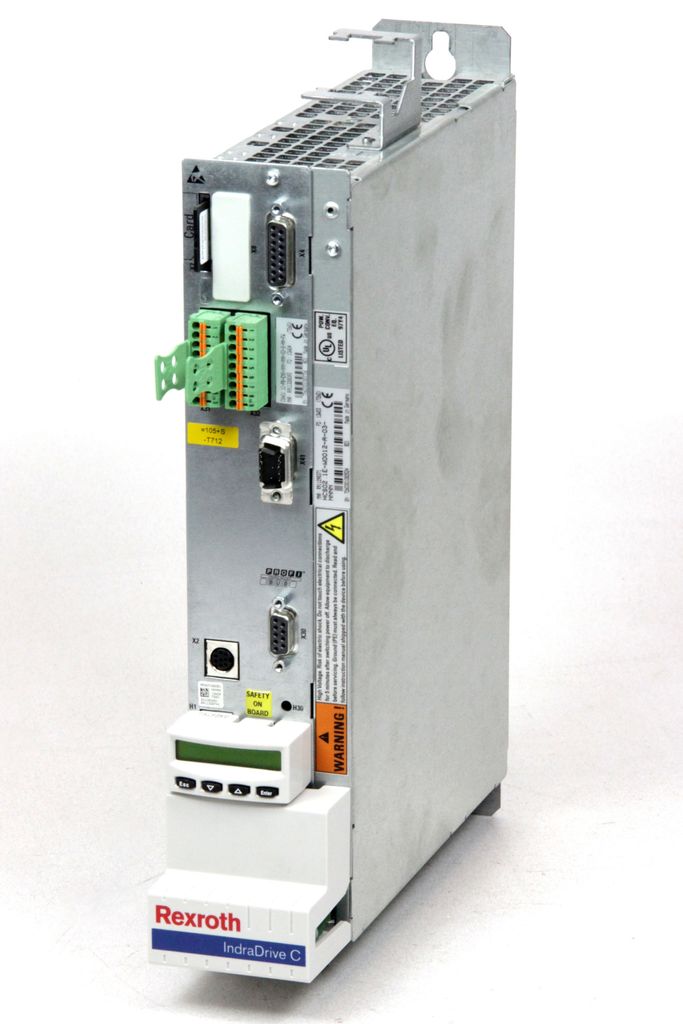

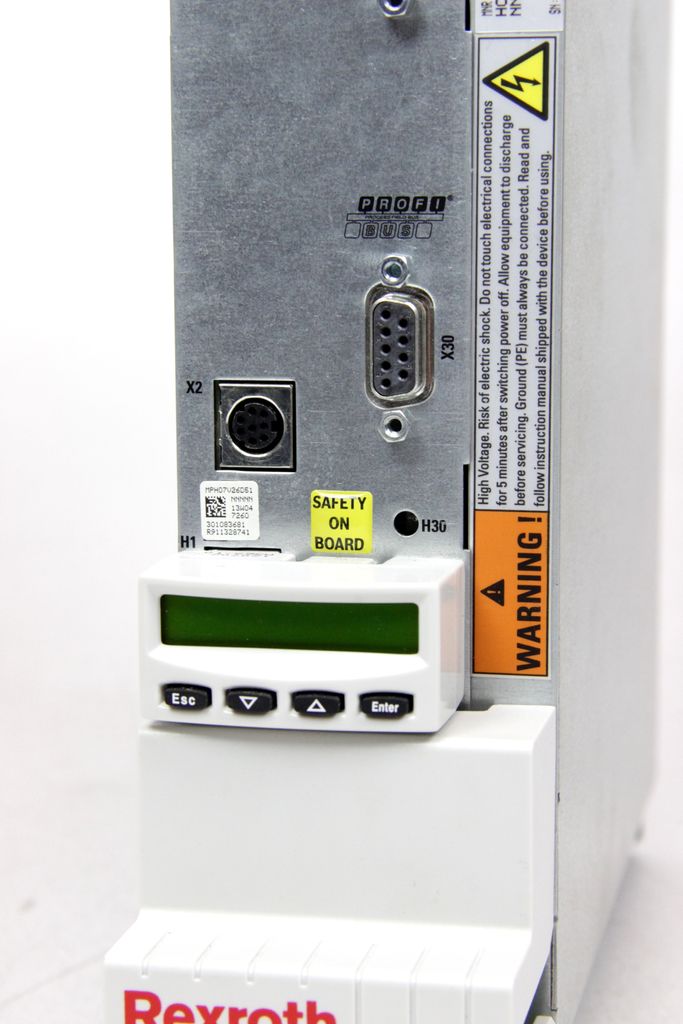

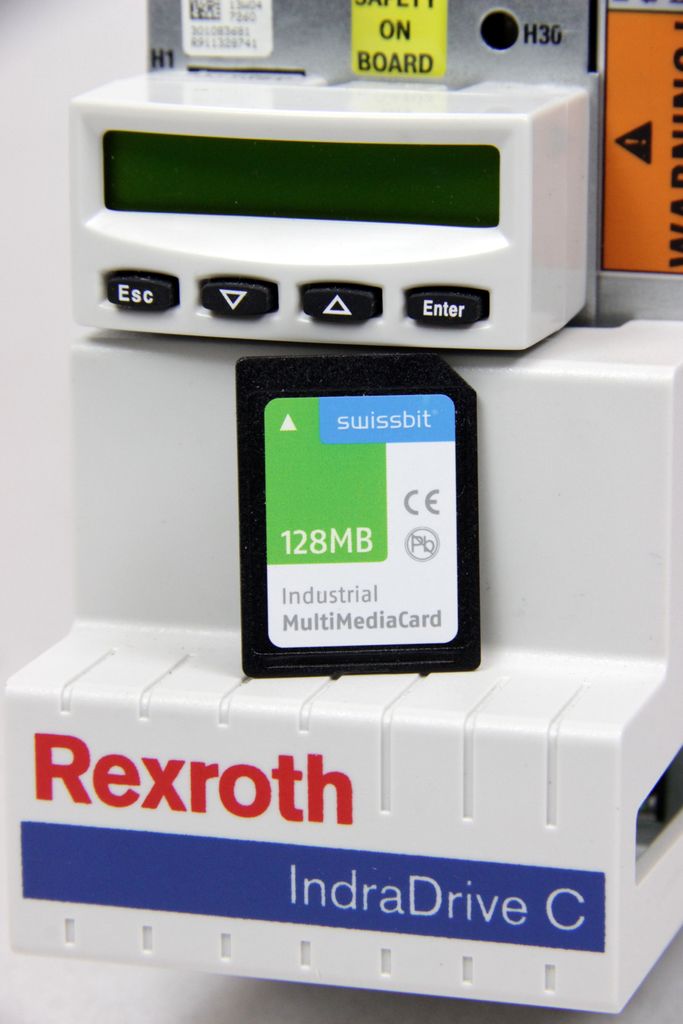

The HCS02 inverter of the IndraDrive C series integrates inverter and supply in one device. The compact design includes additional power connection components and is therefore particularly suitable for single-axis applications.
Control unit ADVANCED configurable

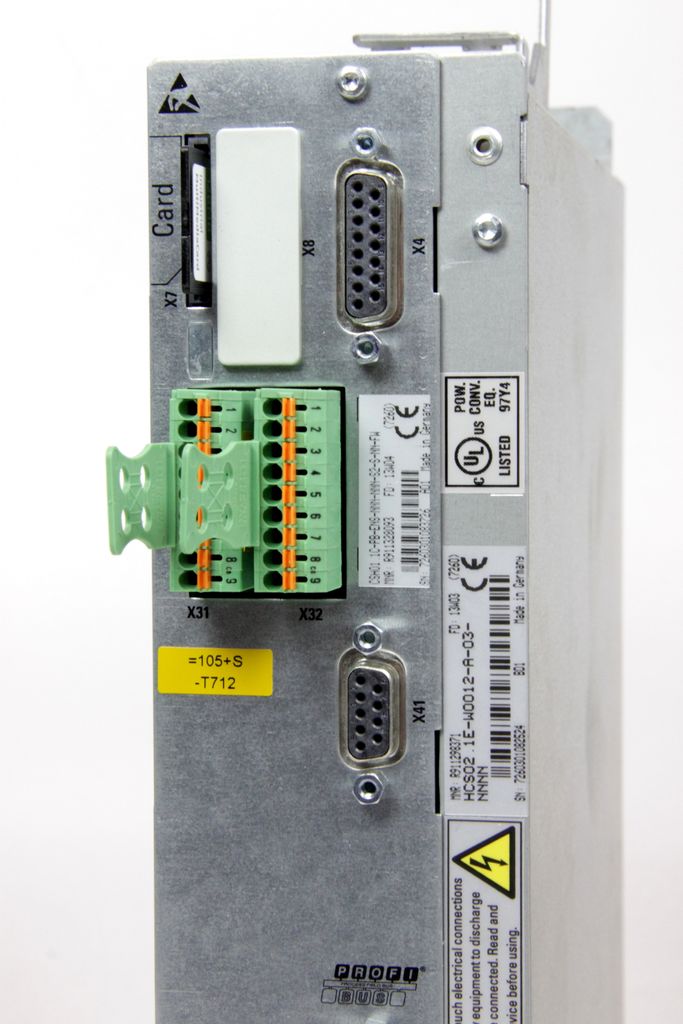

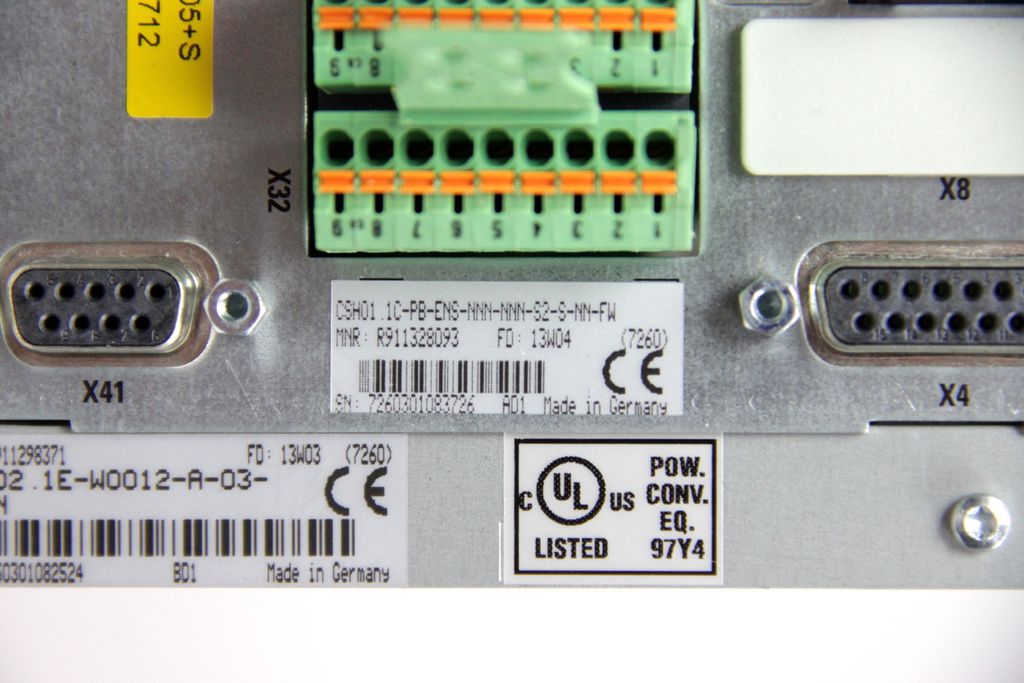

- Type: CSH01.1C-PB-ENS-NNN-NNN-S2-S-NN-FW
- PROFIBUS
- Encoder IndraDyn / Hiperface / 1VSS / TTL
- Safe Motion (SIL2 / Cat3 PL d)
The HCS02 inverter of the IndraDrive C series integrates inverter and supply in one device. The compact design includes additional power connection components and is therefore particularly suitable for single-axis applications.
Control unit ADVANCED configurable
- Type: CSH01.1C-PB-ENS-NNN-NNN-S2-S-NN-FW
- PROFIBUS
- Encoder IndraDyn / Hiperface / 1VSS / TTL
- Safe Motion (SIL2 / Cat3 PL d)

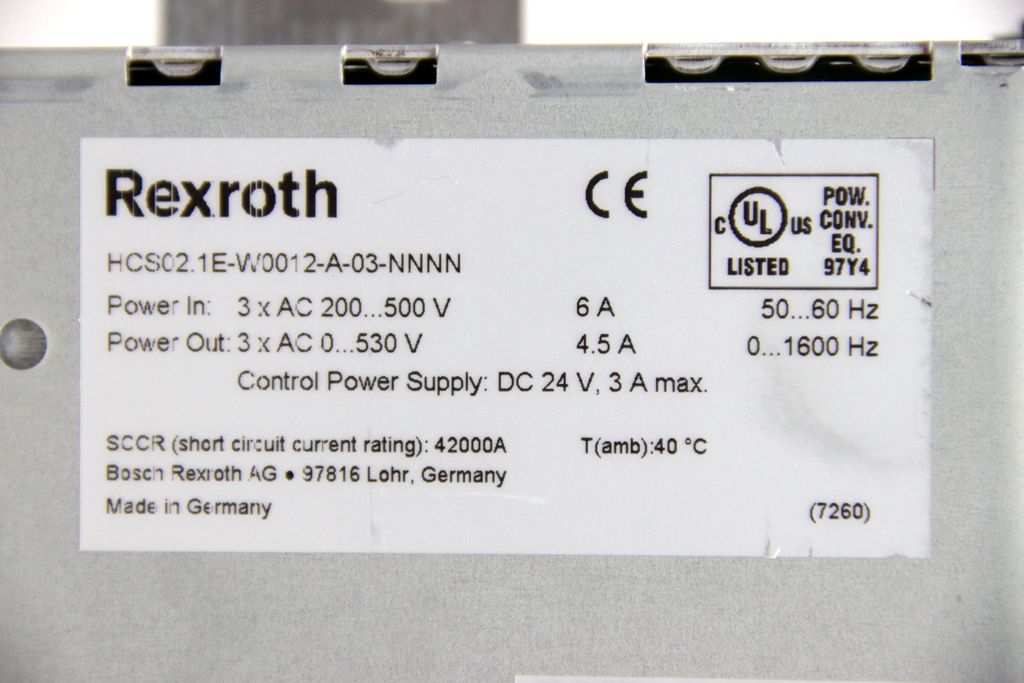

Continuous current 4.5 A Maximum current 11.5 A Motor rated power typ. 1.5 kW Mains connection voltage 1AC - 200...250 V / 3AC - 200...500 V Tolerance ± 10% Frequency 50...60 Hz Frequency tolerance ± 2 Hz Mains input continuous current 6 A Dependence of power on mains voltage ULN < 400 V -1% power reduction per 4 V ULN > 400 V -1% power increase per 5 V Mains contactor External Intermediate circuit Continuous power with choke 2.1 kW Max. power with choke 5 kW Continuous power without choke 2.1 kW Max. power without choke 5 kW Switching frequency/ max output frequency 4 kHz - 0...400 Hz 8 kHz - 0...800 Hz 12 kHz - 0...1200 Hz 16 kHz - 0...1600 Hz Output voltage 3 x AC 0...530V Intermediate circuit capacity 0.135 mF Intermediate circuit voltage Mains connection voltage x 1.41 VDC
| Condition | Used |
| Age rating | No age restriction |
| Model | HCS02.1E-W0014-A-03-NNNN |
| Manufacturer | Bosch Rexroth AG |
| Content | 1 piece |
| Weight | 4600 g |
| Net weight | 3800 g |
| Item ID | 1234586032 |
| Item ID | 1234586032 |
Bosch Rexroth AG

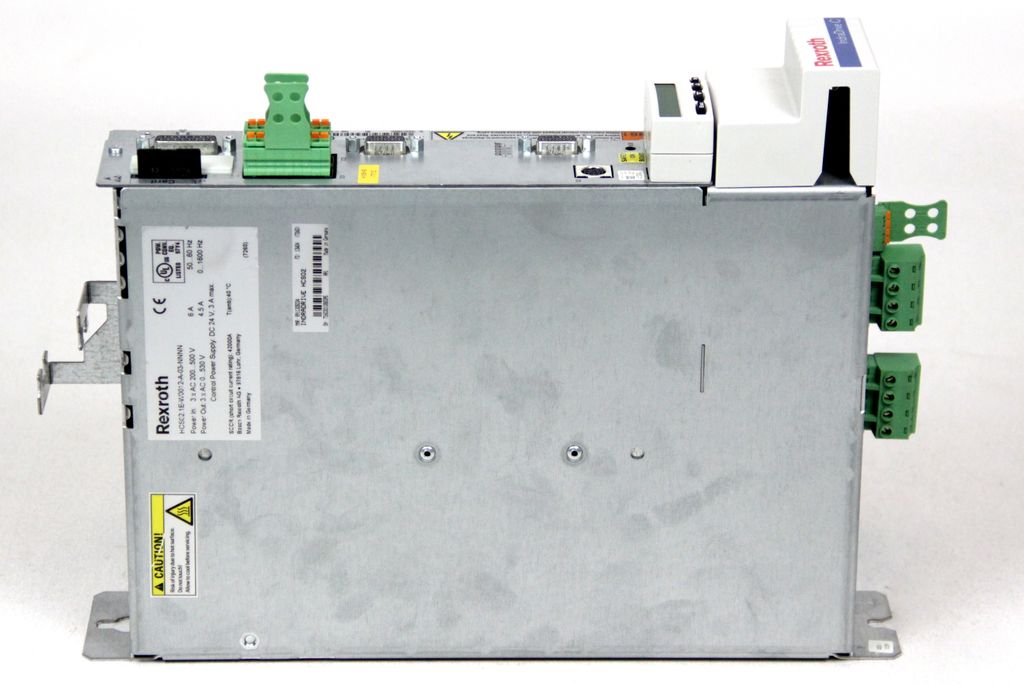

Rexroth IndraDrive C HCS02.1E-W0012-A-03-NNNN 4.5A 2.1kW frequency converter + plug-in card CSH01.1C-PB-ENS-NNN-NNN-S2-S-NN-FW
Item number VN-17855
EAN
Condition Used
Available quantity
${ $store.getters.currentItemVariation.stock.net }
EUR 448.95
*
Content
1 piece
immediately available
