The serial inline communication terminal IL RS 232-PRO enables easy and fast integration of scanners, scales, and printers into existing production processes. Parameterization and data exchange are carried out exclusively via process data. This results in faster communication times for smaller data volumes compared to the PCP variant. Various applications can be served through different protocols and transmission speeds up to 38400 baud.
- A serial input and output channel in RS-232 design
- Support for various protocols
- Diagnostic and status indicators
- A serial input and output channel in RS-232 design
- Support for various protocols
- Diagnostic and status indicators
Interfaces
Interface Inline local bus Connection type Inline data marshaller Transmission speed 500 kBit/s Interface Serial RS-232 Connection type Spring-cage connection Transmission speed 110 Bit/s ..38400 Bit/s (configurable) Input buffer 4 kByte Output buffer 1 kByte Data bits 7 or 8 Stop bits 1 or 2
Serial input/output channel
Parity Even, Odd or No Parity Transmission mode Transparent mode, End-to-end mode, Alternating buffer mode, 3964R, XON/XOFF
Inline potentials
Logic voltage UL 7.5 V DC (via potential marshaller) Current consumption from UL typ155 mA max225 mA (all connections of the serial interface short-circuited)
Interface Inline local bus Connection type Inline data marshaller Transmission speed 500 kBit/s Interface Serial RS-232 Connection type Spring-cage connection Transmission speed 110 Bit/s ..38400 Bit/s (configurable) Input buffer 4 kByte Output buffer 1 kByte Data bits 7 or 8 Stop bits 1 or 2
Serial input/output channel
Parity Even, Odd or No Parity Transmission mode Transparent mode, End-to-end mode, Alternating buffer mode, 3964R, XON/XOFF
Inline potentials
Logic voltage UL 7.5 V DC (via potential marshaller) Current consumption from UL typ155 mA max225 mA (all connections of the serial interface short-circuited)
| Condition | Used |
| Age rating | No age restriction |
| Model | IB IL RS 232-PRO |
| Manufacturer | Phoenix Contact |
| Content | 1 piece |
| Weight | 100 g |
| Item ID | 1234576057 |
| Item ID | 1234576057 |
Phoenix Contact

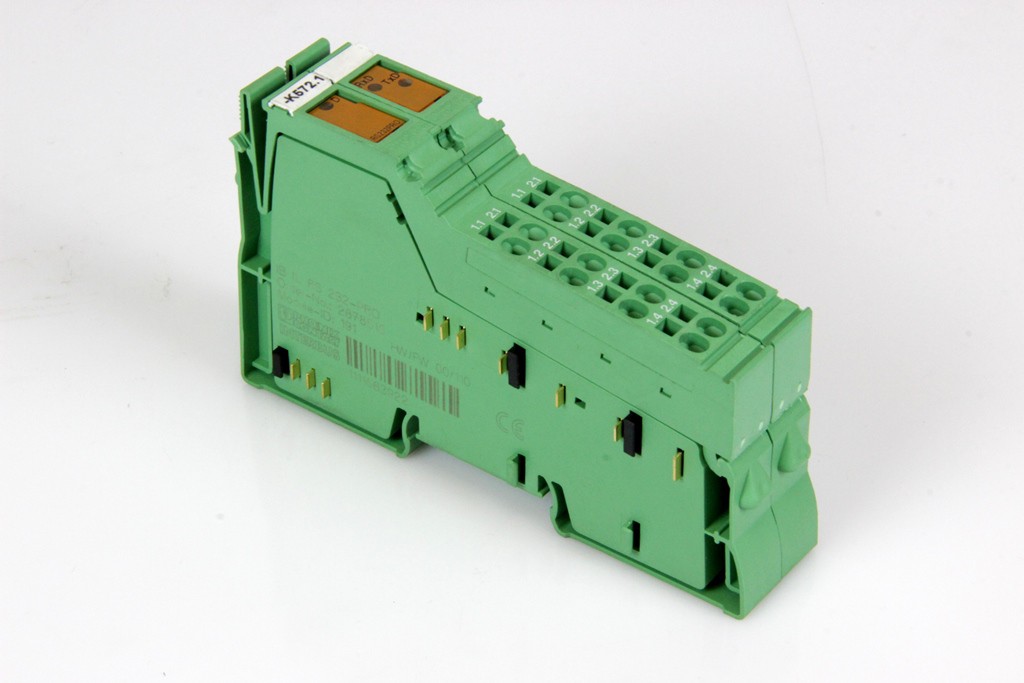

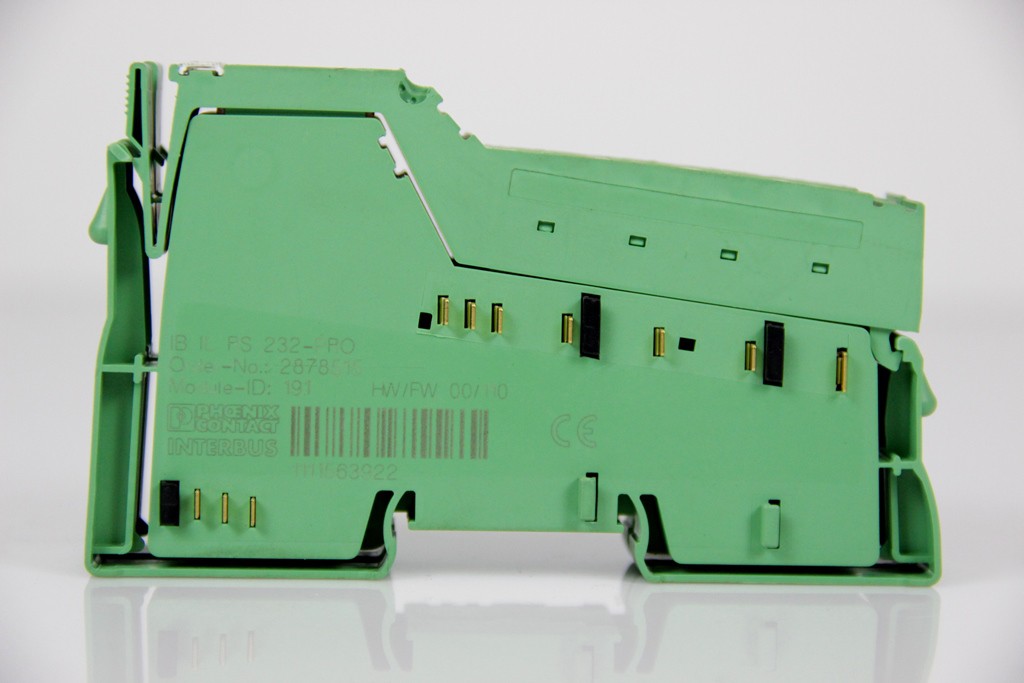

Phoenix Contact Inline RS-232 Function Terminal IB IL RS 232-PRO 2878515
Item number 2878515
EAN 4046356012423
Condition Used
Available quantity
${ $store.getters.currentItemVariation.stock.net }
EUR 46.54
*
Content
1 piece
immediately available
