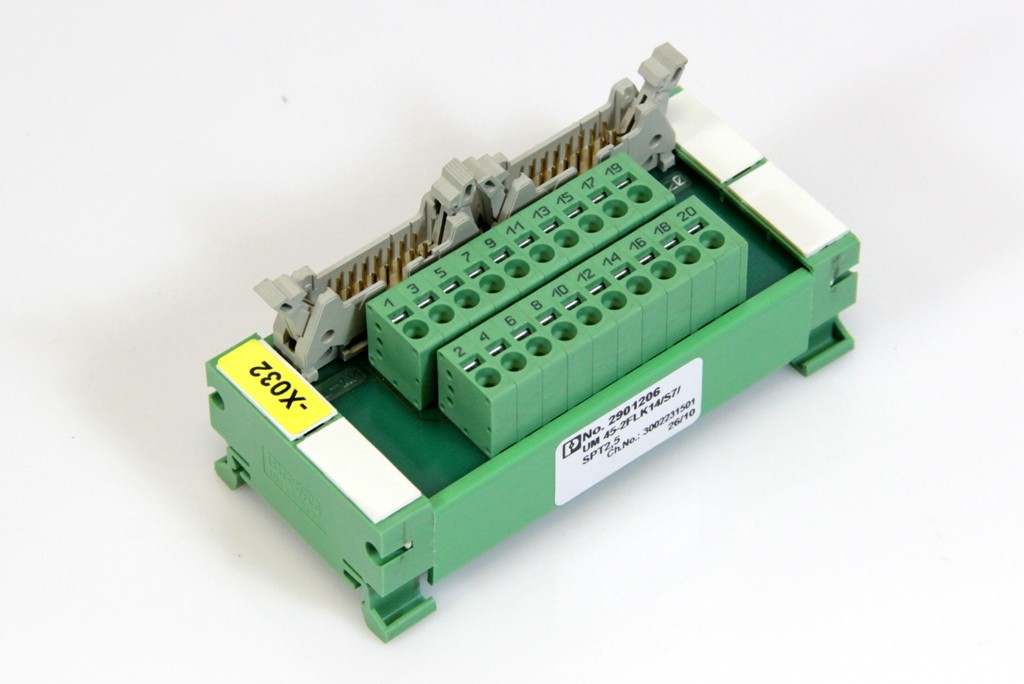

VARIOFACE module, with push-in spring connection and two 14-pin flat ribbon cable connectors, for mounting on NS 35/7.5 or NS 32
Article from plant decommissioning
Article from plant decommissioning
Dimensions
Width 97 mm Height 45 mm Depth 55 mm
General
Max. operating voltage 24 V AC/DC Max. allowable current (per branch) 1 A Max. allowable current (separate power supply) max 3 A Number of poles 14 Installation position any
Connection data Connection 1
Connection designation Field level Connection type Push-in / Spring connection Conductor cross-section rigid 0.2 mm² ..4 mm² Conductor cross-section flexible 0.2 mm² ..2.5 mm² Conductor cross-section AWG 24 ..12
Connection data Connection 2
Connection designation Control level Connection type IDC/FLK pin header Number of connections 2 Number of poles 14 Pitch 2.54 mm
Width 97 mm Height 45 mm Depth 55 mm
General
Max. operating voltage 24 V AC/DC Max. allowable current (per branch) 1 A Max. allowable current (separate power supply) max 3 A Number of poles 14 Installation position any
Connection data Connection 1
Connection designation Field level Connection type Push-in / Spring connection Conductor cross-section rigid 0.2 mm² ..4 mm² Conductor cross-section flexible 0.2 mm² ..2.5 mm² Conductor cross-section AWG 24 ..12
Connection data Connection 2
Connection designation Control level Connection type IDC/FLK pin header Number of connections 2 Number of poles 14 Pitch 2.54 mm
| Condition | Used |
| Age rating | No age restriction |
| Model | UM 45-2FLK14/S7/SPT2,5 |
| Manufacturer | Phoenix Contact |
| Content | 1 piece |
| Weight | 300 g |
| Item ID | 1234573946 |
| Item ID | 1234573946 |
Any further Questions? Just fill the form below and let us know how we can help you.
Phoenix Contact

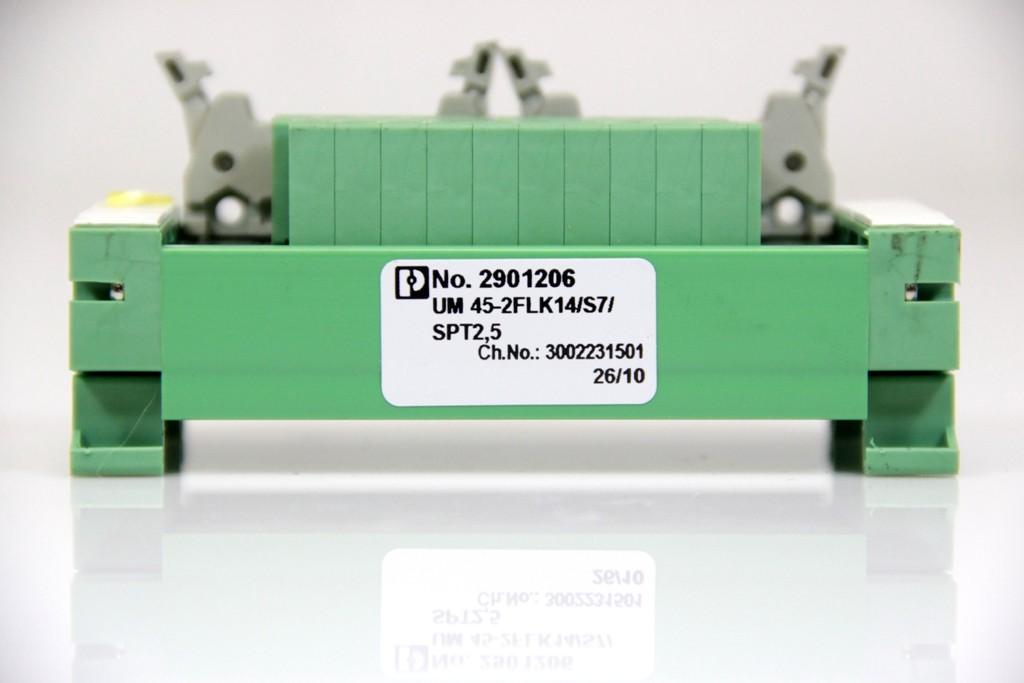

Phoenix Contact transfer module UM 45-2FLK14/S7/SPT2.5 2901206
Item number 2901206
EAN 4046356577793
Condition Used
Available quantity
7
EUR 8.32
*
Content
1 piece
immediately available
* Excl. VAT excl. Shipping
