The bus terminal KL5001 is an SSI master and allows the direct connection of an absolute encoder with SSI (Synchronous Serial Interface). Both single-turn and multi-turn encoders are supported. The 24 V supply of the encoder can be provided directly via the terminal's connection points. For an optional 5 V encoder operating voltage, the power supply terminal KL9505 can be used. Different operating modes, transmission frequencies, and bit widths can be permanently set via control registers. The extensive parameterization options thus allow optimal adaptation to different encoder types.
Technology SSI Encoder Interface Number of channels 1 Encoder Interface Encoder connection Binary input: D+, D-, Binary output: Cl+, Cl- Power supply 24 V DC via power contacts Current consumption 20 mA typical without encoder Current consumption power contacts 20 mA typical + load Encoder supply 24 V DC via power contacts Transmission rates adjustable up to 1 MHz, 250 kHz preset Serial input 24-bit width (adjustable) Data direction Read Signal output Differential signal (RS422) Signal input Differential signal (RS422) Potential separation 500 V (K-Bus/Field voltage) Current consumption K-Bus 25 mA typical Width in process image Input: 1 x 32-bit data (1 x 8-bit control/status optional) Weight approx. 60 g Operating/storage temperature -25…+60 °C/-40…+85 °C Relative humidity 95% without condensation Vibration/shock resistance according to EN 60068-2-6/EN 60068-2-27 EMC resistance/emission according to EN 61000-6-2/EN 61000-6-4 Protection class/installation position IP20/any Pluggable wiring for all KSxxxx terminals Approvals/markings CE, UL, ATEX, IECEx Ex marking ATEX: II 3 G Ex nA IIC T4 Gc IECEx: Ex ec IIC T4 Gc
| Condition | Used |
| Age rating | No age restriction |
| Model | KL5001 |
| Manufacturer | Beckhoff Automation GmbH |
| Content | 1 piece |
| Weight | 100 g |
| Item ID | 1234588133 |
| Item ID | 1234588133 |
Beckhoff Automation GmbH

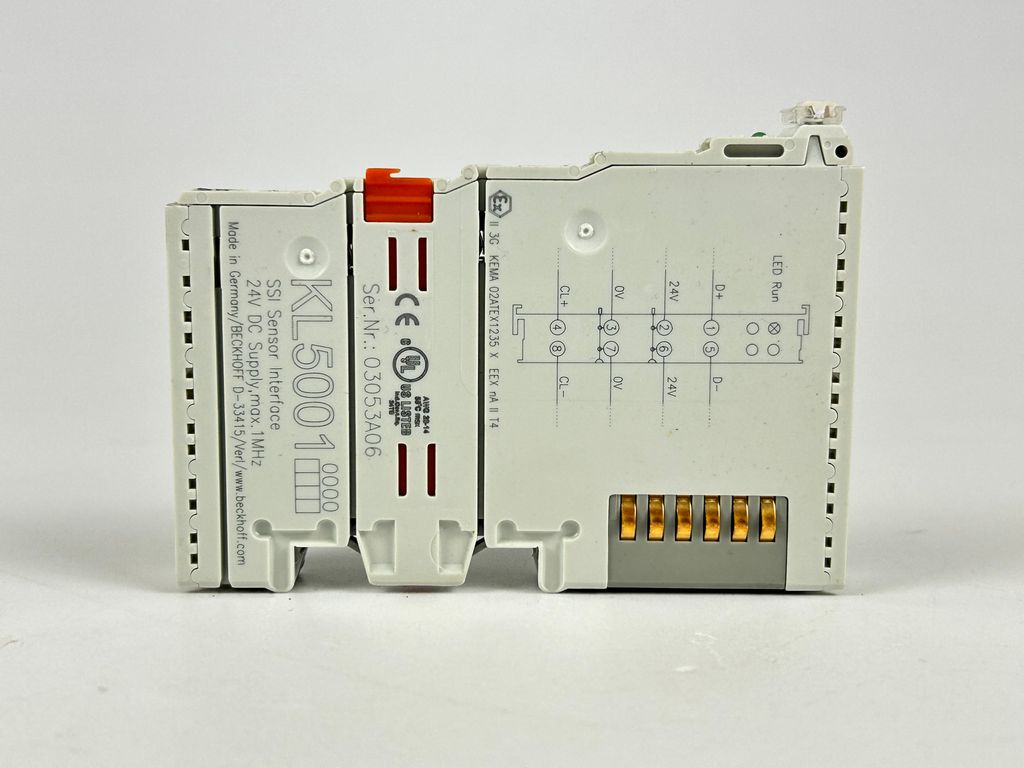

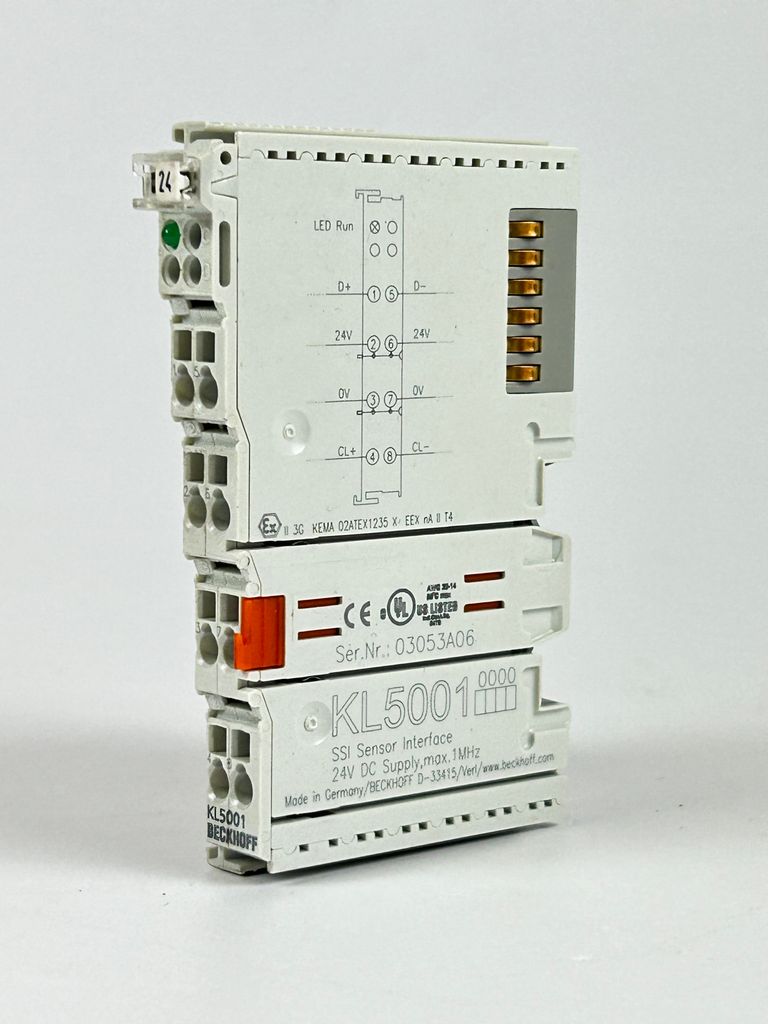

Beckhoff KL5001 Bus Terminal 1-Channel Encoder Interface SSI Master
Item number VN-23382
EAN
Condition Used
Available quantity
${ $store.getters.currentItemVariation.stock.net }
EUR 55.95
*
Content
1 piece
Unit price
EUR 55.95 / piece
immediately available
