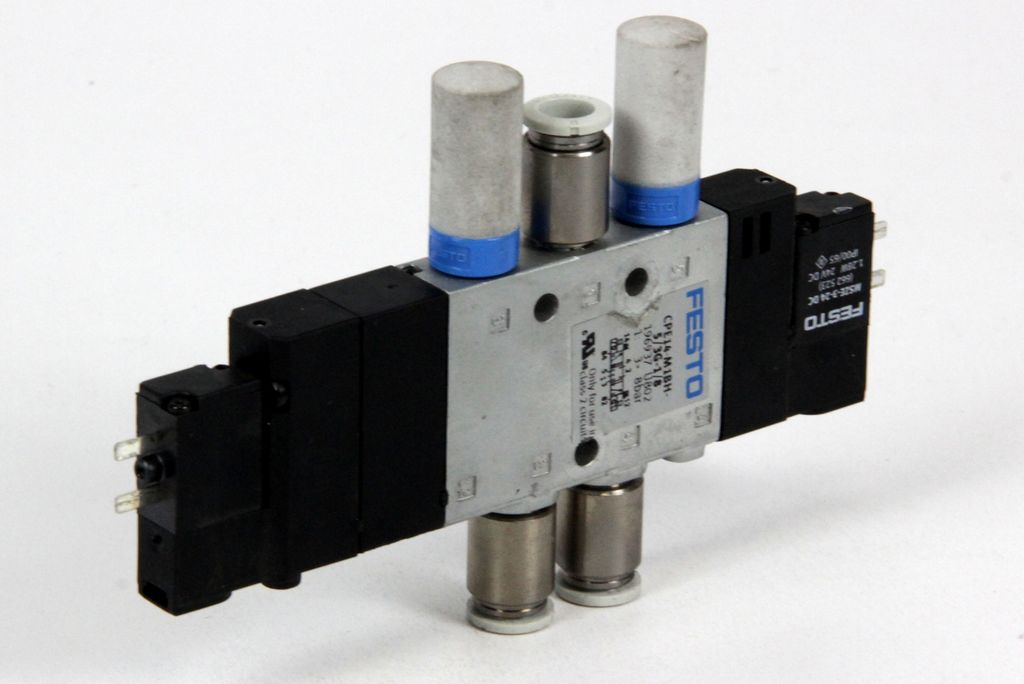

Universal directional valve with 8 mm quick couplings
Item from plant deconstruction
Delivery as shown
Item from plant deconstruction
Delivery as shown
Valve function: 5/3 closed Actuation type: electric Width: 14 mm Standard nominal flow rate: 750 l/min Operating pressure: 3 to 8 bar Design structure: piston slide Reset type: mechanical spring Protection type: IP65 with socket according to IEC 60529 Approval: c UL us - Recognized (OL) Maritime classification: see certificate Nominal size: 6 mm Sealing principle: soft Installation position: any Manual override: with accessory latching-pushbutton Control type: pilot-controlled Control air supply: internal Flow direction: non-reversible Valve position marking: label holder Overlap: positive overlap Switching time off: 42 ms Switching time on: 20 ms Duty cycle: 100% with holding current reduction Max positive test pulse at 0 signal: 1,200 µS Max negative test pulse at 1 signal: 900 µS Coil specifications: 24 V DC: 1.28 W Permissible voltage fluctuations: -15% / +10% Operating medium: compressed air according to ISO 8573-1:2010 [7:4:4] Note on operating and control medium: Oiled operation possible (required for further operation) Vibration resistance: Transport application test with severity level 2 according to FN 942017-4 u Shock resistance: Shock test with severity level 2 according to FN 942017-5 and EN 6006 Corrosion resistance class CRC: 2 - moderate corrosion stress Medium temperature: -5 to 50 °C Ambient temperature: -5 to 50 °C Product weight: 120 g Electrical connection: 2-pin Mounting type: with through-hole Connection control exhaust 82: M3 Connection control air 12: M3 Pneumatic connection 1: G1/8 Pneumatic connection 2: G1/8 Pneumatic connection 3: G1/8 Material note: RoHS compliant Material seals: NBR Material housing: aluminum die-cast Exhaust function: throttleable Connection control exhaust 84: M3 Connection control air 14: M3 Pneumatic connection 4: G1/8 Pneumatic connection 5: G1/8
| Condition | Used |
| Age rating | No age restriction |
| Model | CPE14-M1BH-5/3G-1/8 |
| Manufacturer | Festo |
| Content | 1 piece |
| Weight | 200 g |
| Item ID | 1234582964 |
| Item ID | 1234582964 |
Festo
FESTO 1/8" solenoid valve 5/2 bistable 8 mm connections CPE14-M1BH-5/3G-1/8 196937
Item number VN-13562
EAN 4052568160142
Condition Used
Available quantity
${ $store.getters.currentItemVariation.stock.net }
EUR 37.99
*
Content
1 piece
immediately available
