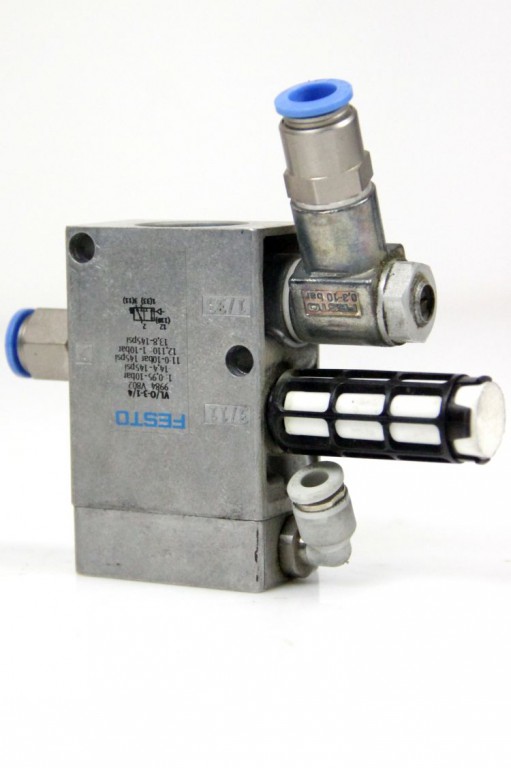

pneumatic solenoid valve (VL/O-3-1/4) from Festo.
Pneumatic valve VL/O-3-1/4 Part number: 9984 If the valve is connected so that the valve has no passage when not actuated, it is suitable for vacuum operation (vacuum connection at P1). Depending on the choice of connections, the function is passage or no passage when not actuated. Valve function 3/2 open/closed monostable Actuation type pneumatic Width 30.5 mm Nominal flow rate 800 l/min Operating pressure -0.95 ..10 bar Design structure plate-seat Reset type mechanical spring Protection class IP65 Approval c UL us - Recognized (OL) Nominal size 7 mm Grid dimension 32 mm Exhaust function throttleable Sealing principle soft Installation position any Control type direct Control air supply external Flow direction reversible with restrictions Overlap freedom no Control pressure 1 ..10 bar Switching time off 26 ms Switching time on 7 ms Max positive test pulse at 0 signal 2,200 µs Max negative test pulse at 1 signal 3,700 µs Operating medium Compressed air according to ISO 8573-1:2010 [7:4:4] Corrosion resistance class CRC 1 - low corrosion stress Storage temperature -20 ..60 °C Medium temperature -10 ..60 °C Control medium Compressed air according to ISO 8573-1:2010 [7:4:4] Ambient temperature -10 ..60 °C Control air connection 110 G1/8 Control air connection 12 G1/8 Pneumatic connection 1 G1/4 Pneumatic connection 11 G1/4 Pneumatic connection 2 G1/4 Pneumatic connection 3 G1/4 Pneumatic connection 33 G1/4 Material note RoHS compliant Material information seals NBR Material information housing Aluminum die-cast
| Condition | Used |
| Age rating | No age restriction |
| Model | VL/O-3-1/4 |
| Manufacturer | Festo |
| Content | 1 piece |
| Weight | 400 g |
| Item ID | 1234577856 |
| Item ID | 1234577856 |
Festo
FESTO pneumatic valve solenoid valve VL/O-3-1/4
Item number 9984
EAN
Condition Used
Available quantity
${ $store.getters.currentItemVariation.stock.net }
EUR 13.91
*
Content
1 piece
immediately available
