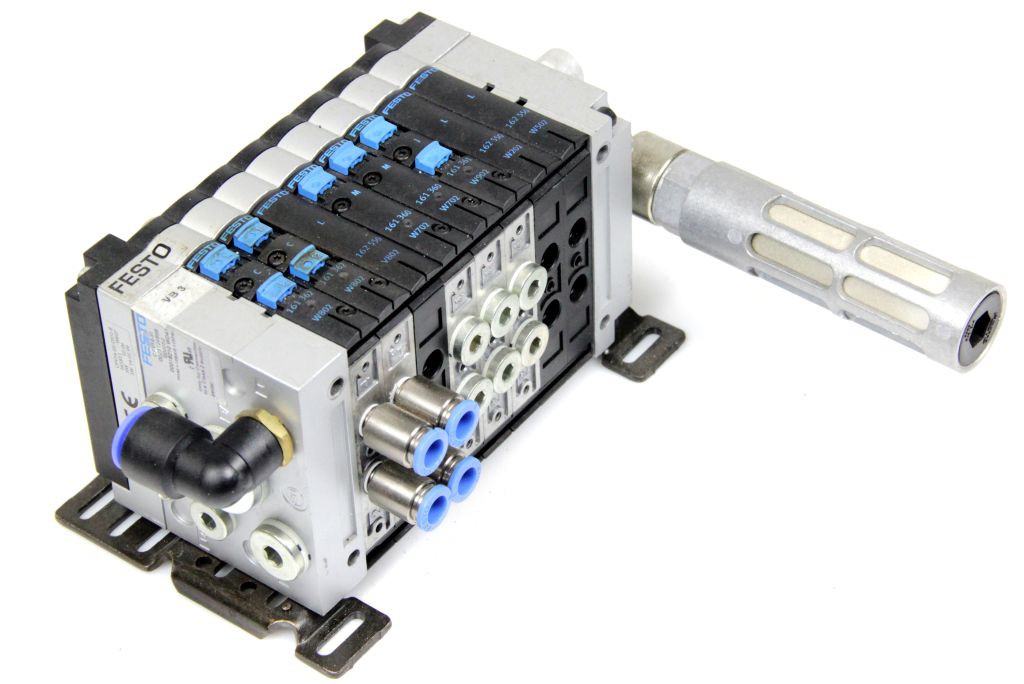

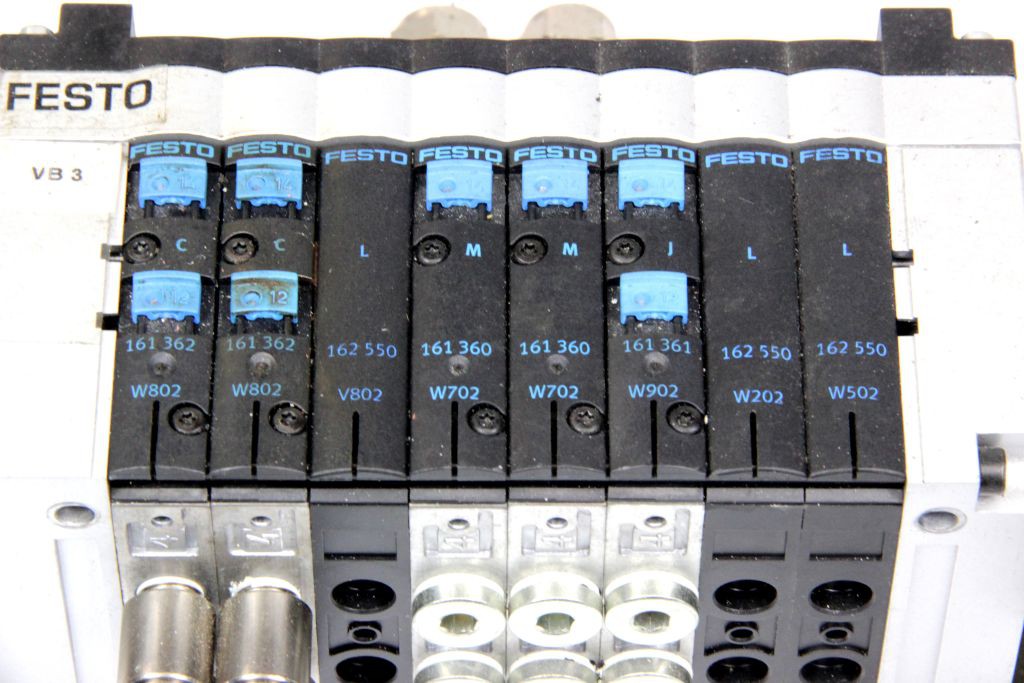

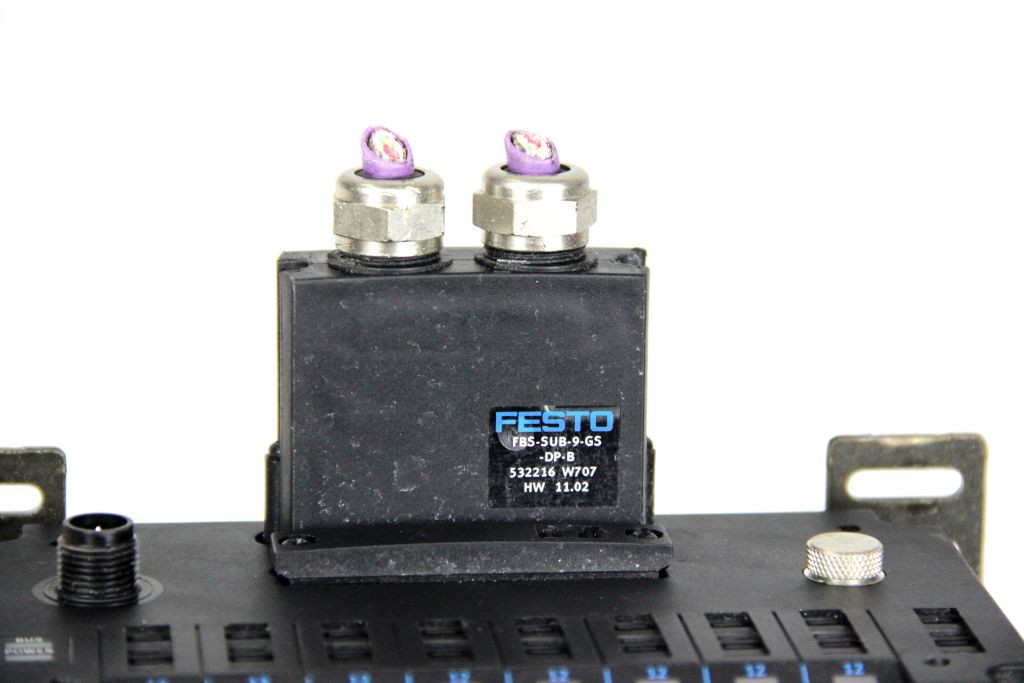

Valve terminal with electrical connection and plug module: 1x 18210 - Valve terminal CPV14-VI consisting of: 2x 161362 Solenoid valve CPV14-M1H-2X3-GLS-1/8 2x 161360 Solenoid valve CPV14-M1H-5LS-1/8 1x 161361 Solenoid valve CPV14-M1H-5JS-1/8 3x 162550 Reserve plate CPV14-RZP 1x 165811 - Electrical connection CPV14-GE-DI01-8 1x 6844 - Silencer U-1/2-B 1x 532216 - Plug FBS-SUB-9-GS-DP-B

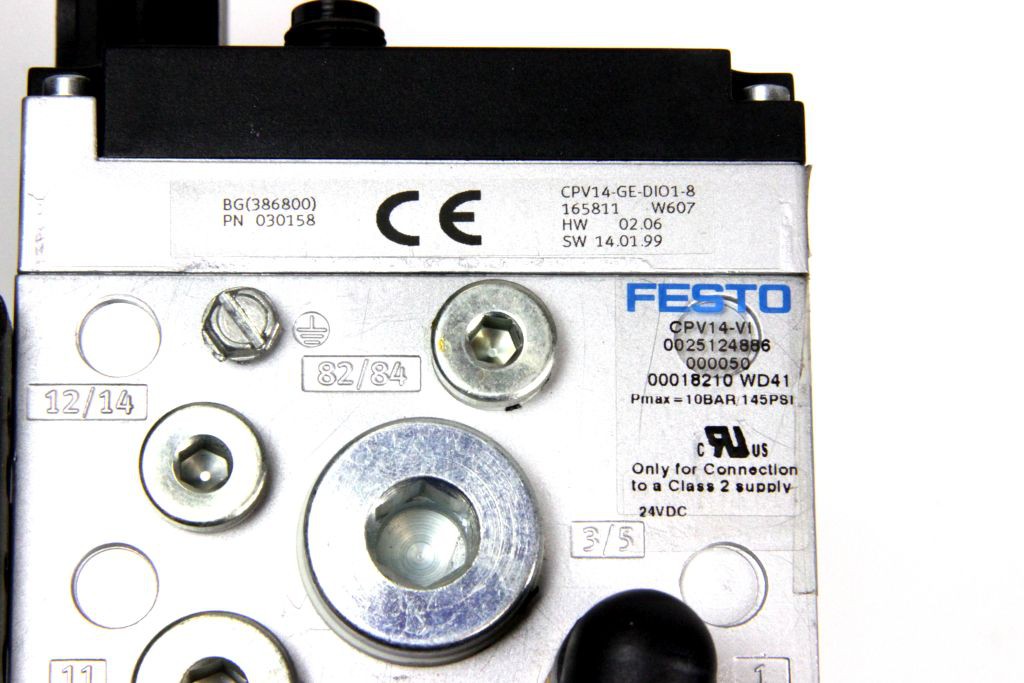

Electrical Connection CPV14-GE-DI01-8 Part Number: 165811 CP Strand Extension yes 16 Inputs 8 Outputs (or 16 Valves) Fieldbus Interface optionally: - Socket and Plug, M12x1, 5-pin, B-coded - Sub-D, 9-pin, Socket Device-Specific Diagnosis via device-related diagnosis (DPV0) Missing Module on CP Strand Extension Short Circuit/Overload Outputs Undervoltage Outputs Undervoltage Sensor Supply Undervoltage Valves Communication Types Cyclic Communication Configuration Support GSD File and Bitmaps Max Number of Valve Coils with Strand Extension 32 Max Number of Valve Coils 16 Reverse Polarity Protection for all electrical connections Baud Rate 9.6 kBaud ..12 Mbaud automatic detection Operating Voltage Range DC 20.4 ..26.4 V Max Number of Outputs 8 (16 Valve Coils omitted) Max Number of Inputs 16 Nominal Operating Voltage DC 24 V Power Failure Bridging 10 ms Residual Ripple 4 Vss Current Consumption at Nominal Operating Voltage Load Valve Type Dependent Current Consumption at Nominal Operating Voltage Electronics: <= 100 mA Sensor Supply: Sensor Dependent Storage Temperature -20 ..70 °C Protection Class IP65 Ambient Temperature -5 ..50 °C Approval c UL us - Recognized (OL) Addressing Range 1 ..125 Setting via Switch Module Fieldbus Certification PNO Galvanic Isolation Fieldbus Interface Optocoupler LED Display Bus-Specific BUS: Communication and Configuration Error LED Display Product-Specific 12/14: Switching State Valves POWER: Operating Voltage Electronics and Load Supply Product Identification Product Family: 4: Valves Material Information Cover PA-reinforced Material Information Seals CR NBR Material Information Housing Aluminum Die-Cast Material Note RoHS Compliant Silencer U-1/2-B Part Number: 6844 for Noise Reduction and Prevention of Contamination at Ventilation Connections of Pneumatic Components. Installation Position any Operating Pressure Complete Temperature Range 0 ..10 bar Flow Against Atmosphere 7,500 l/min Operating Medium Compressed Air according to ISO 8573-1:2010 [7:-:-] Note on Operating and Control Medium Oiled Operation Possible Corrosion Resistance Class CRC 1 - Low Corrosion Stress Sound Pressure Level 81 dB(A) Ambient Temperature -10 ..70 °C Product Weight approx. 75 g Pneumatic Connection G1/2 Material Information Damper Insert PE Material Information Screw Plug Aluminum Material Note Copper and PTFE-Free RoHS Compliant Material Information Housing Aluminum Connector FBS-SUB-9-GS-DP-B Part Number: 532216 for PROFIBUS. Width approx. 20 mm Height approx. 62 mm Length approx. 61 mm Protocol PROFIBUS Operating Elements DIL Switch Additional Functions Shutdown of Further Bus Segment Product Weight 60 g Fieldbus Interface 2x 2 Spring Clamp Terminals Permissible Cable Diameter 5 ..10 mm Protection Class IP65 IP67 according to IEC 60529 in Mounted State Ambient Temperature 0 ..50 °C Storage Temperature -20 ..70 °C Relative Humidity 95% non-condensing Material Note RoHS Compliant Material Information Housing PA-reinforced Material Information Union Nut Brass Material Information Screws Steel Material Information Seals NBR
| Condition | Used |
| Age rating | No age restriction |
| Model | CPV14-VI + CPV14-GE-DI01-8 + U-1/2-B + FBS-SUB-9-GS-DP-B |
| Manufacturer | Festo |
| Content | 1 piece |
| Weight | 5100 g |
| Item ID | 1234577659 |
| Item ID | 1234577659 |
Festo
FESTO valve terminal CPV14-VI electrical connection silencer U-1/2-B plug
Item number 18210 + 165811 + 6844 + 532216
EAN
Condition Used
Available quantity
${ $store.getters.currentItemVariation.stock.net }
EUR 179.95
*
Content
1 piece
immediately available
