Amplifier for fiber optics
The FX300 series sets a new standard for optical sensors with fiber optics. The increased range and sensing distance through a built-in optical lens and the optical data transmission function are just the most important performance features of these multi-intelligent fiber optic sensor amplifiers. The FX300 series is particularly suitable for frequently changing production processes, the use of multiple sensors, and extremely high demands on fine or precise sensitivity adjustment.
Special features:
Increased range and sensing distance Optical data transmission function Multi-timer functions Mode key and jog switch for convenient programming of all functions 4-digit LCD display Operating voltage via a single plug cable Automatic crosstalk suppression function Transmitting light intensity selectable (Red LED type) Key-lock function Compact design (width = 10mm), Large selection of standard and special fiber optics + 2x FT-Z8E (approx. 40 cm long)
Article from plant decommissioning
The FX300 series sets a new standard for optical sensors with fiber optics. The increased range and sensing distance through a built-in optical lens and the optical data transmission function are just the most important performance features of these multi-intelligent fiber optic sensor amplifiers. The FX300 series is particularly suitable for frequently changing production processes, the use of multiple sensors, and extremely high demands on fine or precise sensitivity adjustment.
Special features:
Increased range and sensing distance Optical data transmission function Multi-timer functions Mode key and jog switch for convenient programming of all functions 4-digit LCD display Operating voltage via a single plug cable Automatic crosstalk suppression function Transmitting light intensity selectable (Red LED type) Key-lock function Compact design (width = 10mm), Large selection of standard and special fiber optics + 2x FT-Z8E (approx. 40 cm long)
Article from plant decommissioning
NPN output FX301 Amplifier type Digital Timer function 0.5 to 1000ms Crosstalk suppression Range/sensing range dependent on the fiber optic Response time 65 / 150 / 250 / 2000 µs Output transistor max 100 mA Emitting diode Red LED, 650 nm Power consumption max 40 mA Housing material Plastic Protection class IP40 Dimensions (HxWxD) 30.5 x 10 x 64.5 mm Connection type Plug connection Operating nominal voltage 12 to 24 V DC (±10 %) Ambient temperature -10 °C to +55 °C
| Condition | Used |
| Age rating | No age restriction |
| Model | FX-301 + FT-Z8E |
| Manufacturer | KEYENCE |
| Content | 1 piece |
| Weight | 200 g |
| Item ID | 1234582972 |
| Item ID | 1234582972 |
KEYENCE

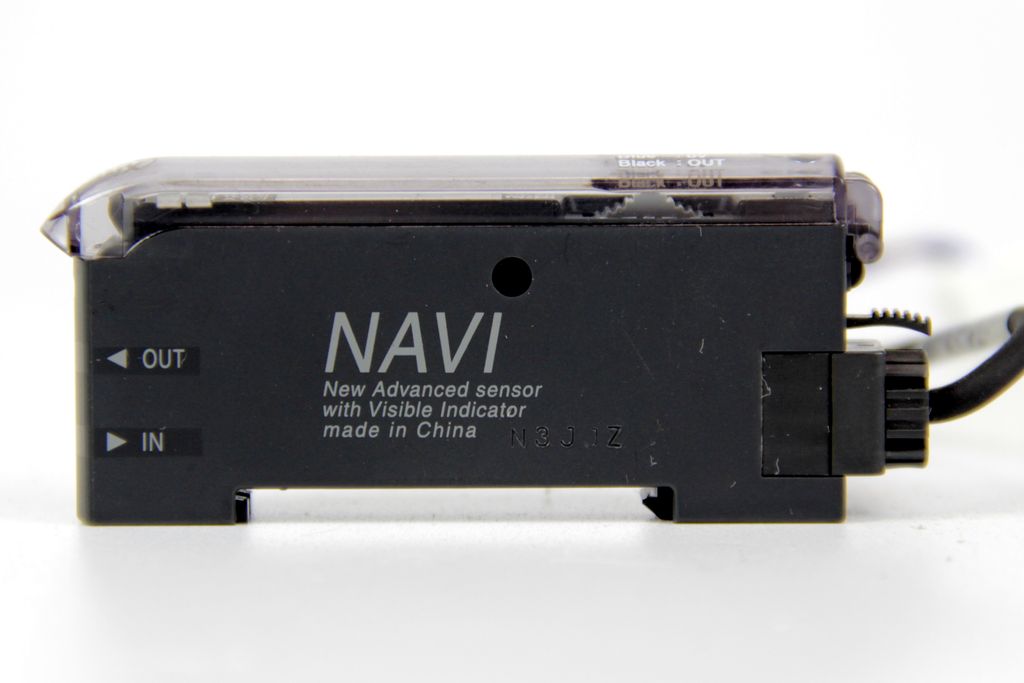

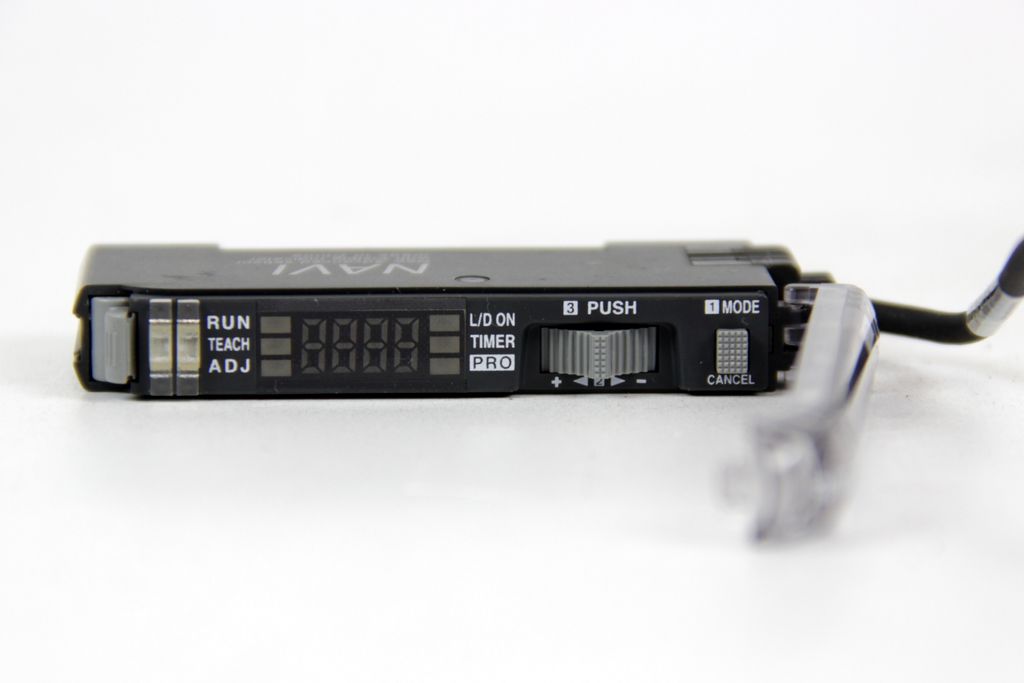

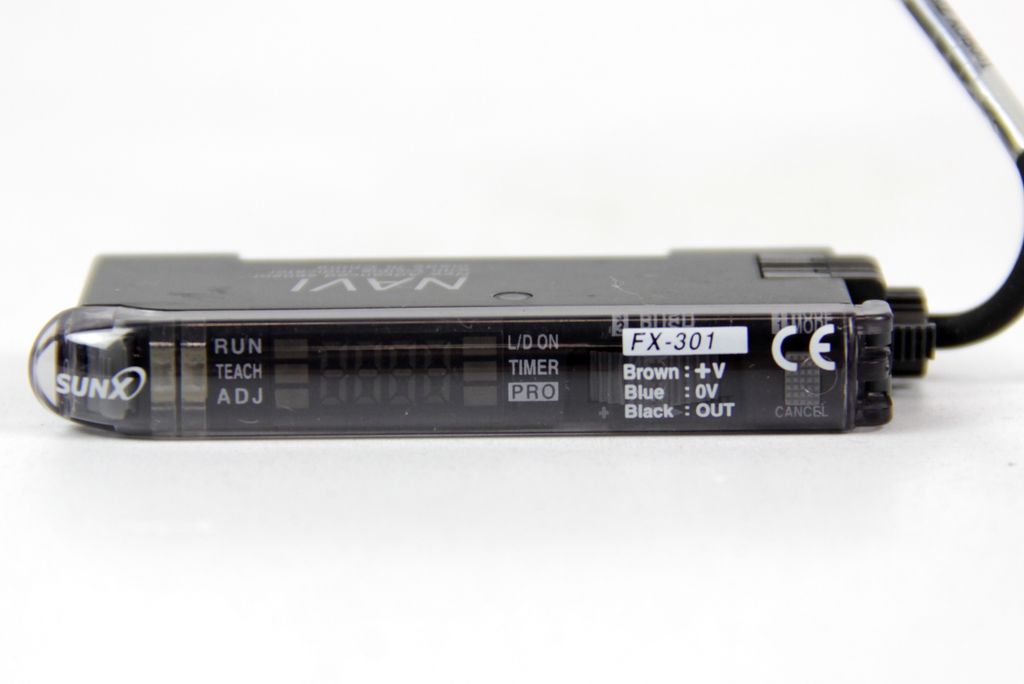

PANASONIC FX-301 NPN fiber optic sensor amplifier red LED 650nm + 2x FT-Z8E
Item number VN-13570
EAN
Condition Used
Available quantity
${ $store.getters.currentItemVariation.stock.net }
EUR 47.95
*
Content
1 piece
immediately available
