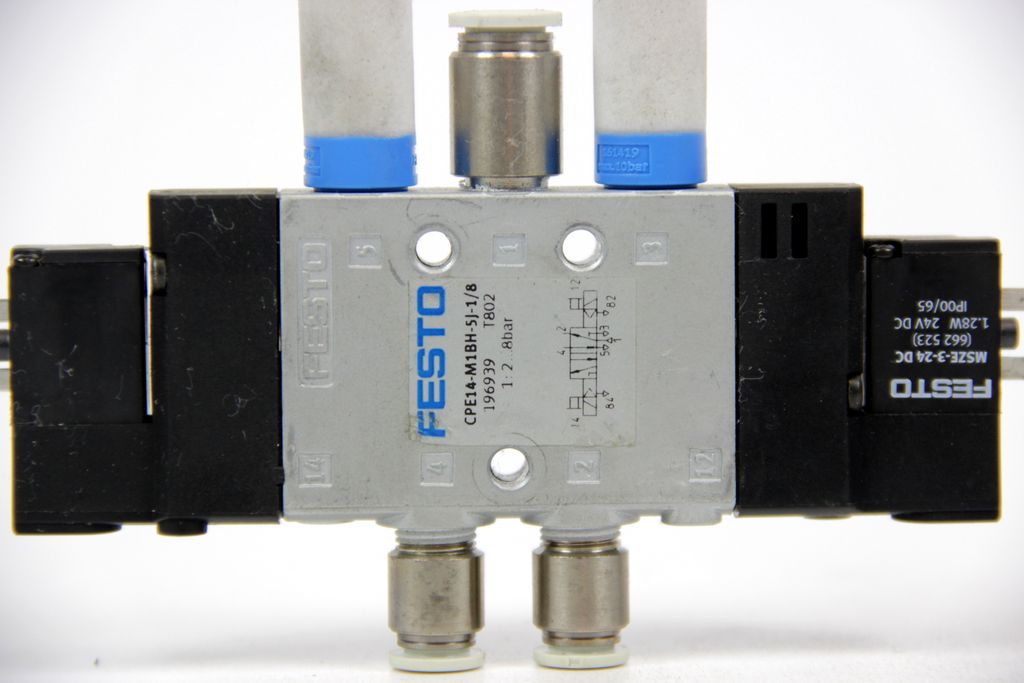

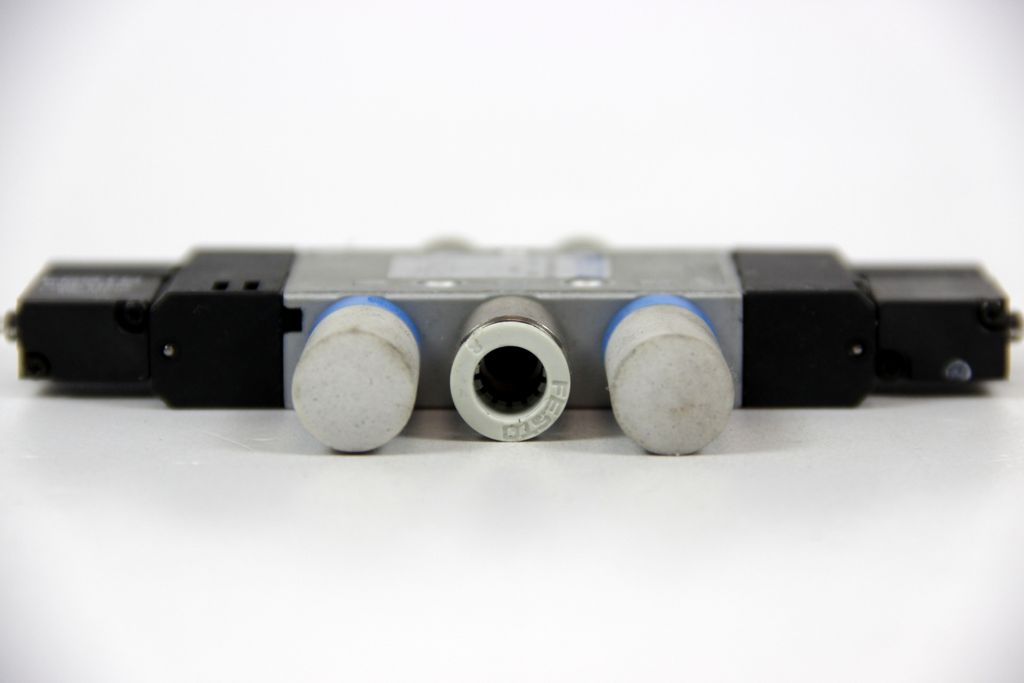

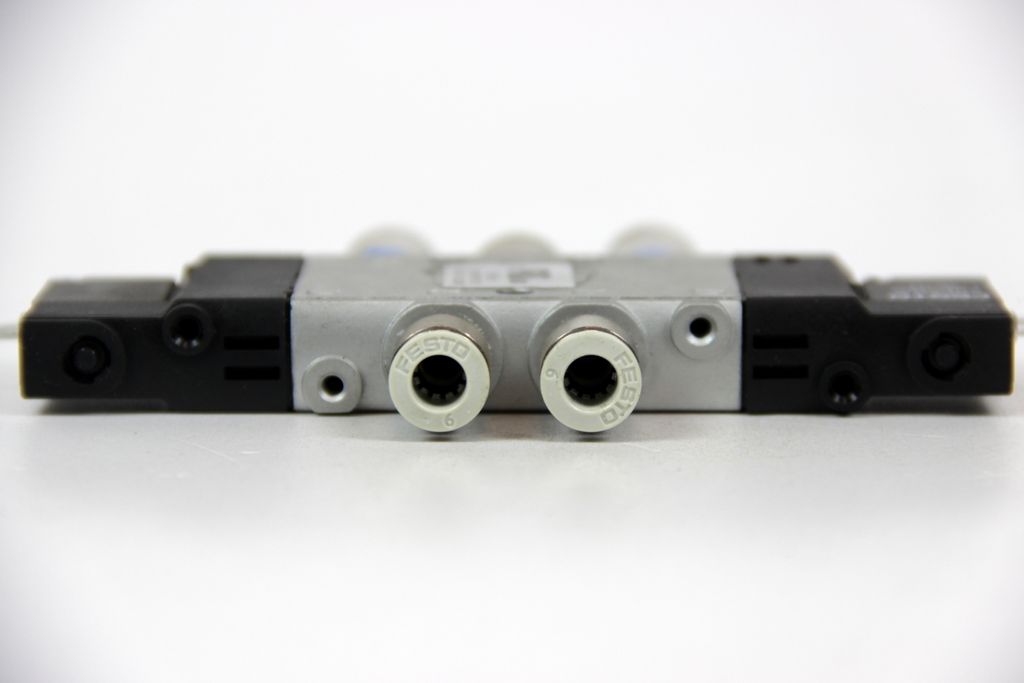

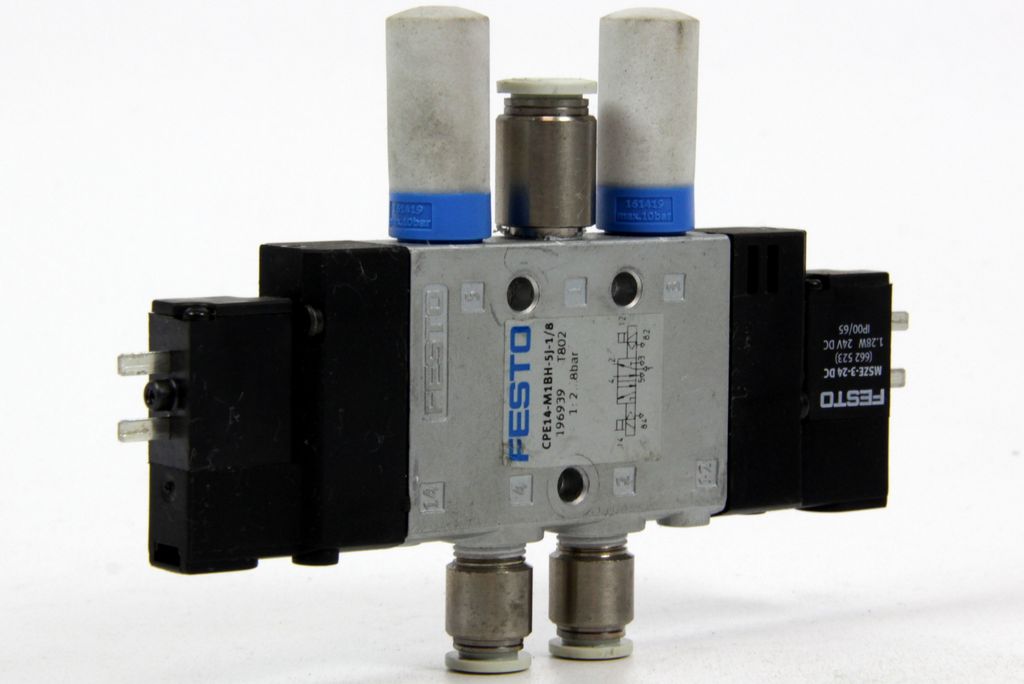

Universal directional valve with 8 mm quick couplings at the inlet and 6 mm at the outlet
Item from plant decommissioning
Delivery as shown
Item from plant decommissioning
Delivery as shown

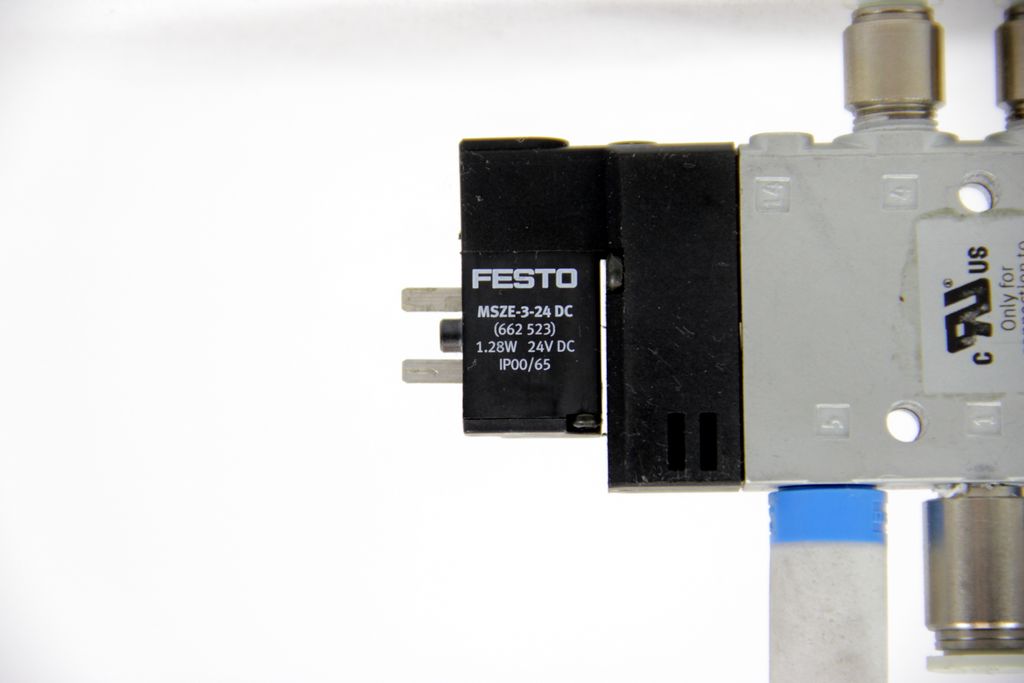

Valve function 5/2 bistable Actuation type electric Width [mm] 14 Standard nominal flow rate [l/min] 800 Operating pressure [bar] 2 to 8 Design structure piston slide Protection class IP65 with socket according to IEC 60529 Approval c UL us - Recognized (OL) Maritime classification see certificate Nominal size [mm] 6 Sealing principle soft Installation position any Manual override with accessory latching momentary Control type pilot-controlled Control air supply internal Flow direction non-reversible Valve position marking label holder Overlap positive overlap Duty cycle 100% with holding current reduction Max positive test pulse at 0 signal [microseconds] 1,200 Max negative test pulse at 1 signal [microseconds] 900 Coil specifications 24 V DC: 1.28 W Permissible voltage fluctuations -15% / +10% Operating medium compressed air according to ISO 8573-1:2010 [7:4:4] Note on operating and control medium oiled operation possible (required for further operation) Vibration resistance transport test with severity level 2 according to FN 942017-4 and EN 60068-2-6 Shock resistance shock test with severity level 2 according to FN 942017-5 and EN 60068-2-27 Corrosion resistance class CRC 2 - moderate corrosion stress Medium temperature [°C] -5 to 50 Ambient temperature [°C] -5 to 50 Product weight [g] 115 Electrical connection 2-pin Mounting type with through-hole Connection control exhaust 82 M3 Connection control air 12 M3 Pneumatic connection 1 G1/8 Pneumatic connection 2 G1/8 Pneumatic connection 3 G1/8 Material note RoHS compliant Material seals NBR Material housing aluminum die-cast Exhaust function throttleable Connection control exhaust 84 M3 Connection control air 14 M3 Pneumatic connection 4 G1/8 Pneumatic connection 5 G1/8 Switching time approx. [ms] 13
| Condition | Used |
| Age rating | No age restriction |
| Model | CPE14-M1BH-5J-1/8 |
| Manufacturer | Festo |
| Content | 1 piece |
| Weight | 200 g |
| Item ID | 1234582963 |
| Item ID | 1234582963 |
Festo
FESTO 1/8" solenoid valve 5/2 bistable 6 mm output CPE14-M1BH-5J-1/8 196939
Item number VN-13561
EAN 4052568015428
Condition Used
Available quantity
${ $store.getters.currentItemVariation.stock.net }
EUR 37.99
*
Content
1 piece
immediately available
