Hybrid motor starter for reversing 3~AC motors up to 500VAC and 0.6A output current, with 24V DC control voltage, adjustable overload shutdown, and screw connection
Item from plant decommissioning
Item from plant decommissioning
Electrical Properties
Number of Phases 3 Type of Motor Starter Reversing Starter Maximum Power Loss under Nominal Condition 0.4 W Switching Frequency ≤ 2 Hz (load-dependent) Maximum Power Loss 1.5 W Minimum Power Loss 1.1 W Assignment Type 1 Supply Rated Control Circuit Supply Voltage US 24 VDC Control Supply Voltage Range 19.2 VDC ..30 VDC Rated Control Supply Current IS 40 mA Protective Circuitry Overvoltage Protection Reverse Polarity Protection Insulation Properties Rated Insulation Voltage 500 V Rated Impulse Voltage 6 kV Overvoltage Category III Pollution Degree 2 Insulation Properties between Control Input, Control Supply Voltage, and Auxiliary Circuit to Main Circuit Safe Separation (IEC 60947-1) at Operating Voltage ≤ 300 V AC (e.g., 230/400 V AC, 277/480 V AC) Basic Insulation (IEC60947-1) at Operating Voltage 300VAC...500VAC Insulation Properties between Control Input and Control Supply Voltage to Auxiliary Circuit Safe Separation (IEC 60947-1) at Auxiliary Circuit ≤ 300 V AC
Input Data
Control Designation Input Control Input Right / Left Rated Actuation Voltage UC 24 VDC Actuation Voltage Range 19.2 VDC ..30 VDC Rated Actuation Current IC 5 mA (Input Type 1) Switching Threshold 9.6 V ("0"-Signal) 19.2 V ("1"-Signal) Turn-off Time Typical < 30 ms Protective Circuitry Reverse Polarity Protection
Output Data
AC Output Rated Operating Voltage Ue 500 VAC Operating Voltage Range 42 VAC ..550 VAC Rated Operating Current Ie 0.6 A (AC-51) 0.6 A (AC-53a) Network Frequency 50/60 Hz Load Current Range 75 mA ..600 mA (see Derating) Tripping Characteristic according to IEC 60947-4-2 Class 10A Cooling Time 20 min (for Auto-Reset) Leakage Current 0 mA Protective Circuitry Overvoltage Protection Feedback Output Note Feedback: Potential-free Changeover Contact, Signal Contact Contact Design 1 Changeover Switching Capacity according to IEC 60947-5-1 3 A (230 V, AC15) 2 A (24V, DC13)
Number of Phases 3 Type of Motor Starter Reversing Starter Maximum Power Loss under Nominal Condition 0.4 W Switching Frequency ≤ 2 Hz (load-dependent) Maximum Power Loss 1.5 W Minimum Power Loss 1.1 W Assignment Type 1 Supply Rated Control Circuit Supply Voltage US 24 VDC Control Supply Voltage Range 19.2 VDC ..30 VDC Rated Control Supply Current IS 40 mA Protective Circuitry Overvoltage Protection Reverse Polarity Protection Insulation Properties Rated Insulation Voltage 500 V Rated Impulse Voltage 6 kV Overvoltage Category III Pollution Degree 2 Insulation Properties between Control Input, Control Supply Voltage, and Auxiliary Circuit to Main Circuit Safe Separation (IEC 60947-1) at Operating Voltage ≤ 300 V AC (e.g., 230/400 V AC, 277/480 V AC) Basic Insulation (IEC60947-1) at Operating Voltage 300VAC...500VAC Insulation Properties between Control Input and Control Supply Voltage to Auxiliary Circuit Safe Separation (IEC 60947-1) at Auxiliary Circuit ≤ 300 V AC
Input Data
Control Designation Input Control Input Right / Left Rated Actuation Voltage UC 24 VDC Actuation Voltage Range 19.2 VDC ..30 VDC Rated Actuation Current IC 5 mA (Input Type 1) Switching Threshold 9.6 V ("0"-Signal) 19.2 V ("1"-Signal) Turn-off Time Typical < 30 ms Protective Circuitry Reverse Polarity Protection
Output Data
AC Output Rated Operating Voltage Ue 500 VAC Operating Voltage Range 42 VAC ..550 VAC Rated Operating Current Ie 0.6 A (AC-51) 0.6 A (AC-53a) Network Frequency 50/60 Hz Load Current Range 75 mA ..600 mA (see Derating) Tripping Characteristic according to IEC 60947-4-2 Class 10A Cooling Time 20 min (for Auto-Reset) Leakage Current 0 mA Protective Circuitry Overvoltage Protection Feedback Output Note Feedback: Potential-free Changeover Contact, Signal Contact Contact Design 1 Changeover Switching Capacity according to IEC 60947-5-1 3 A (230 V, AC15) 2 A (24V, DC13)
| Condition | Used |
| Age rating | No age restriction |
| Model | ELR H5-I-SC-24DC/500AC-0,6 |
| Manufacturer | Phoenix Contact |
| Content | 1 piece |
| Weight | 500 g |
| Net weight | 300 g |
| Item ID | 1234589061 |
| Item ID | 1234589061 |
Phoenix Contact

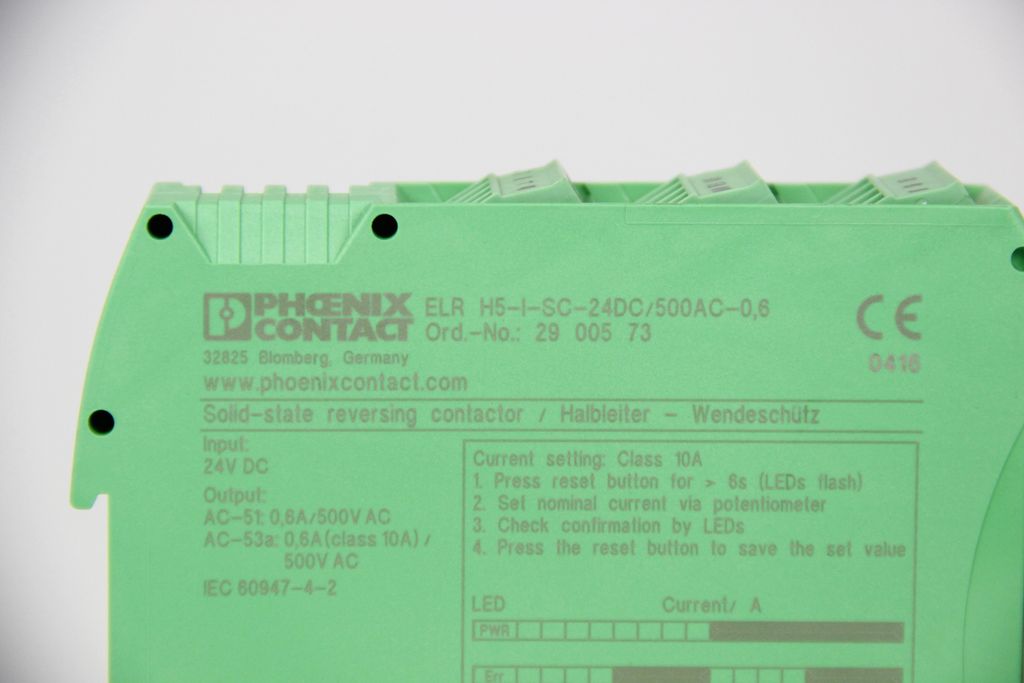

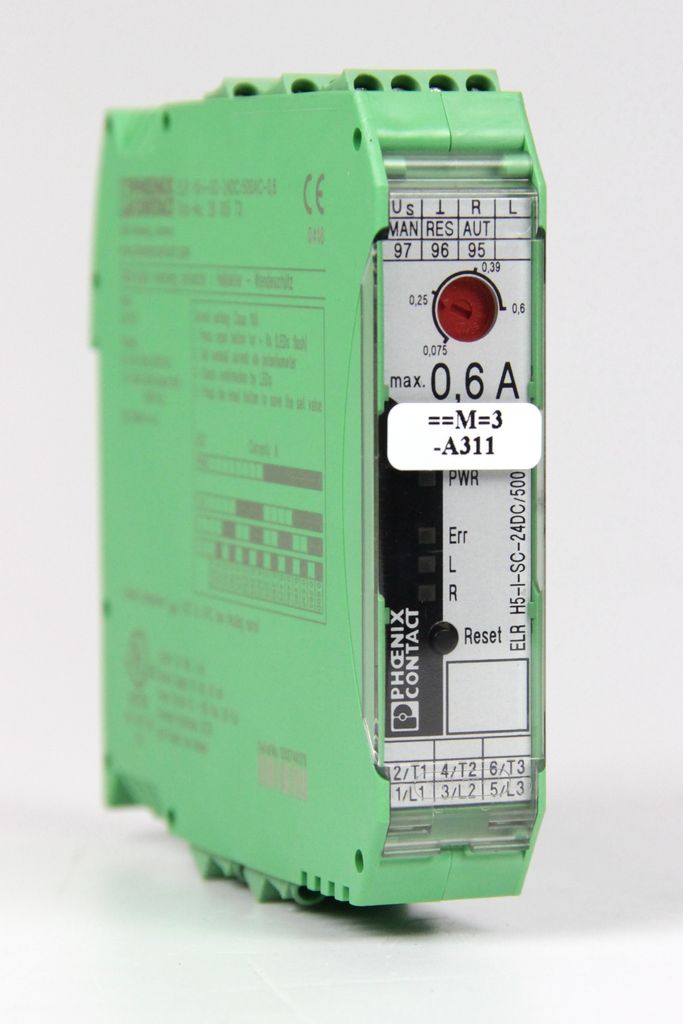

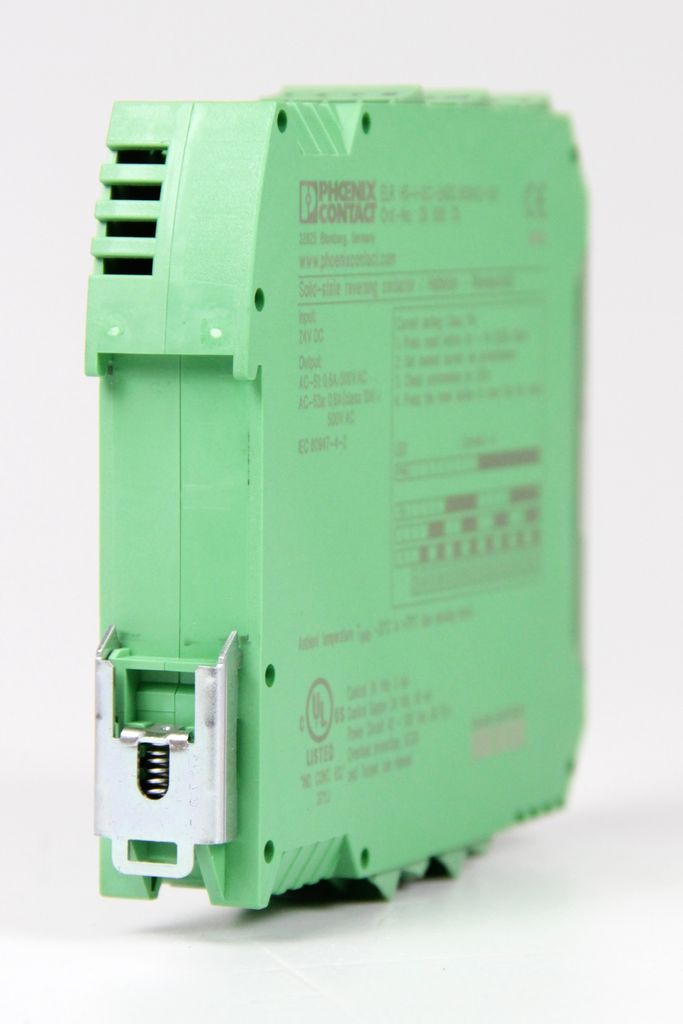

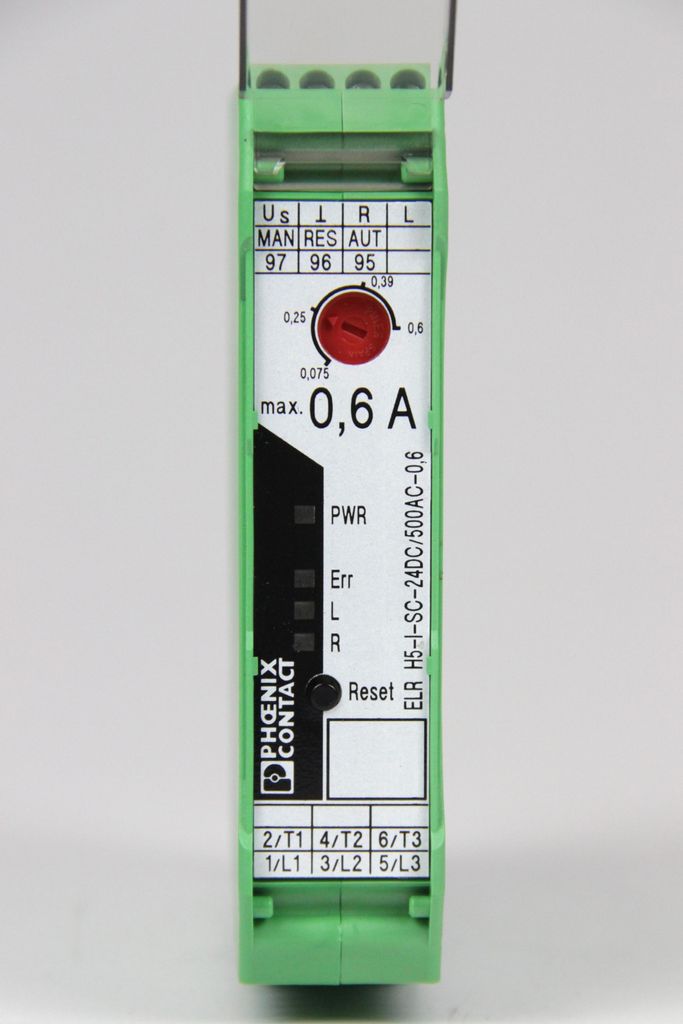

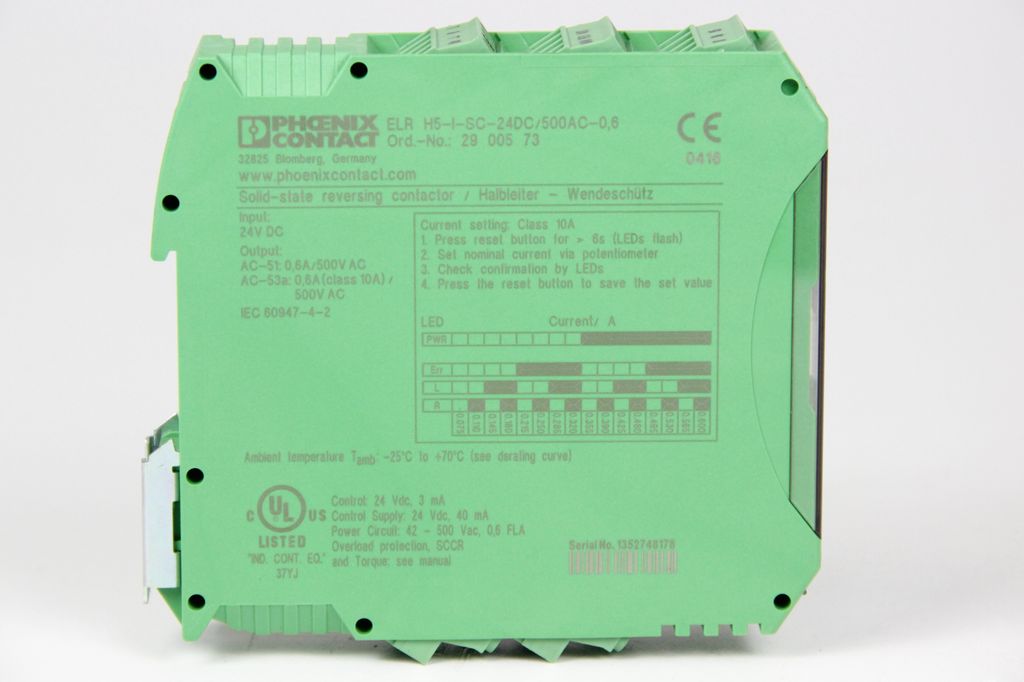

Phoenix Contact Hybrid Motor Starter ELR H5-I-SC-24DC/500AC-0.6 2900573
Item number VN-23541
EAN 4046356527859
Condition Used
Available quantity
${ $store.getters.currentItemVariation.stock.net }
EUR 35.95
*
Content
1 piece
Unit price
EUR 35.95 / piece
immediately available
