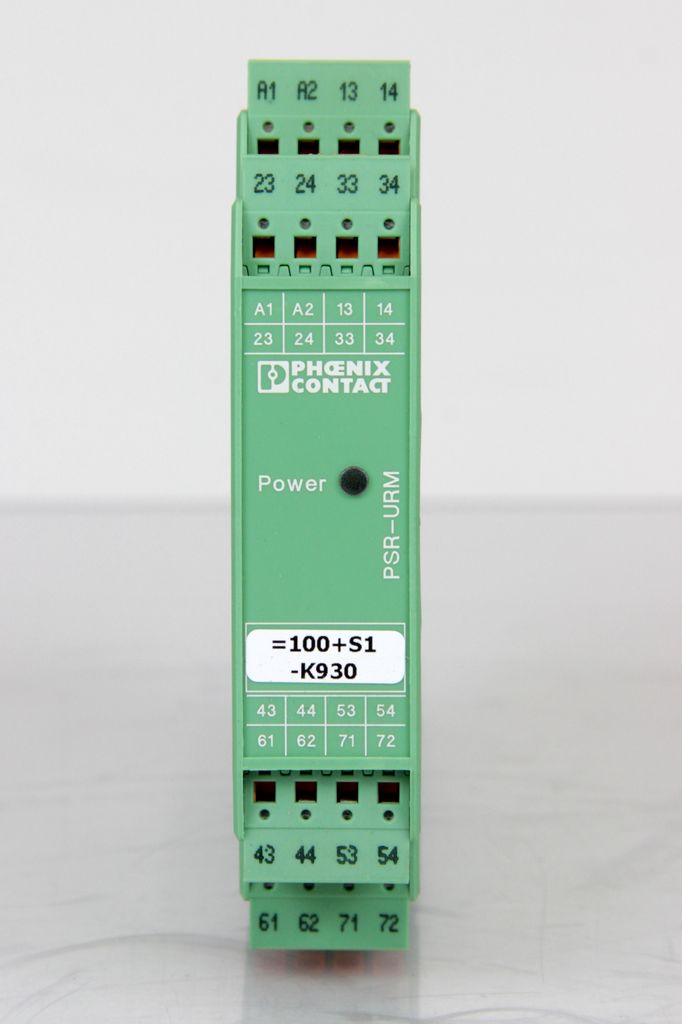

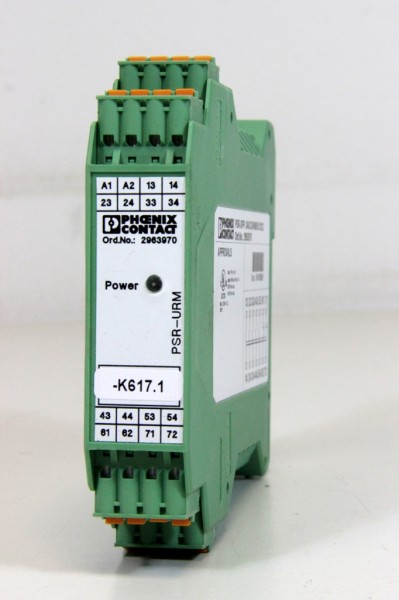

Universal safety relay with forcibly guided contacts, 5 normally open contacts, 2 normally closed contacts, single-channel, pluggable terminals with spring force connection, width: 22.5 mm
Item from plant decommissioning
Item from plant decommissioning
Input data
Rated control circuit supply voltage US 24 V AC/DC -15% / +10% Rated control supply current IS typ47 mA Power consumption at US typ1.2 W Inrush current typ350 mA DC (Δt=1µs at Us) Type pull-in time at Us 20 ms Drop-out time typical 20 ms Ready time < 500 ms Status indicator LED green Switching frequency maximum 0.5 Hz
Output data
Contact configuration 5 enabling current paths 2 feedback current paths Contact material AgSnO2 Switching voltage minimum 15 V AC/DC Switching voltage maximum 250 V AC/DC (observe load curve) Continuous current limit 6 A (normally open) 3 A (normally closed) Inrush current minimum 10 mA Inrush current maximum 6 A Quadratic sum current 72 A2 Switching capacity (resistive load) maximum 144 W (24 V DC, τ = 0 ms) 288 W (48 V DC, τ = 0 ms) 240 W (60 V DC, τ = 0 ms) 110 W (110 V DC, τ = 0 ms) 88 W (220 V DC, τ = 0 ms) 1380 VA (230 V AC, τ = 0 ms) Switching capacity (inductive load) maximum 42 W (24 V DC, τ = 40 ms) 42 W (48 V DC, τ = 40 ms) 42 W (60 V DC, τ = 40 ms) 42 W (110 V DC, τ = 40 ms) 42 W (220 V DC, τ = 40 ms) Switching capacity min50 mW Output fuse 10 A gL/gG (normally open) 6 A gL/gG (normally closed)
General
Relay type Electromechanical relay with forcibly guided contacts according to EN50205 Mechanical lifespan 10 x 106 switching cycles Rated operating mode 100% ED Net weight 137.48 g Mounting type DIN rail mounting Installation position vertical or horizontal Protection class IP54 IP20 Minimum protection class installation location IP54 Housing color green
Rated control circuit supply voltage US 24 V AC/DC -15% / +10% Rated control supply current IS typ47 mA Power consumption at US typ1.2 W Inrush current typ350 mA DC (Δt=1µs at Us) Type pull-in time at Us 20 ms Drop-out time typical 20 ms Ready time < 500 ms Status indicator LED green Switching frequency maximum 0.5 Hz
Output data
Contact configuration 5 enabling current paths 2 feedback current paths Contact material AgSnO2 Switching voltage minimum 15 V AC/DC Switching voltage maximum 250 V AC/DC (observe load curve) Continuous current limit 6 A (normally open) 3 A (normally closed) Inrush current minimum 10 mA Inrush current maximum 6 A Quadratic sum current 72 A2 Switching capacity (resistive load) maximum 144 W (24 V DC, τ = 0 ms) 288 W (48 V DC, τ = 0 ms) 240 W (60 V DC, τ = 0 ms) 110 W (110 V DC, τ = 0 ms) 88 W (220 V DC, τ = 0 ms) 1380 VA (230 V AC, τ = 0 ms) Switching capacity (inductive load) maximum 42 W (24 V DC, τ = 40 ms) 42 W (48 V DC, τ = 40 ms) 42 W (60 V DC, τ = 40 ms) 42 W (110 V DC, τ = 40 ms) 42 W (220 V DC, τ = 40 ms) Switching capacity min50 mW Output fuse 10 A gL/gG (normally open) 6 A gL/gG (normally closed)
General
Relay type Electromechanical relay with forcibly guided contacts according to EN50205 Mechanical lifespan 10 x 106 switching cycles Rated operating mode 100% ED Net weight 137.48 g Mounting type DIN rail mounting Installation position vertical or horizontal Protection class IP54 IP20 Minimum protection class installation location IP54 Housing color green
| Condition | Used |
| Age rating | No age restriction |
| Model | PSR-SPP- 24UC/URM/5X1/2X2 |
| Manufacturer | Phoenix Contact |
| Content | 1 piece |
| Weight | 200 g |
| Item ID | 1234571029 |
| Item ID | 1234571029 |
Phoenix Contact

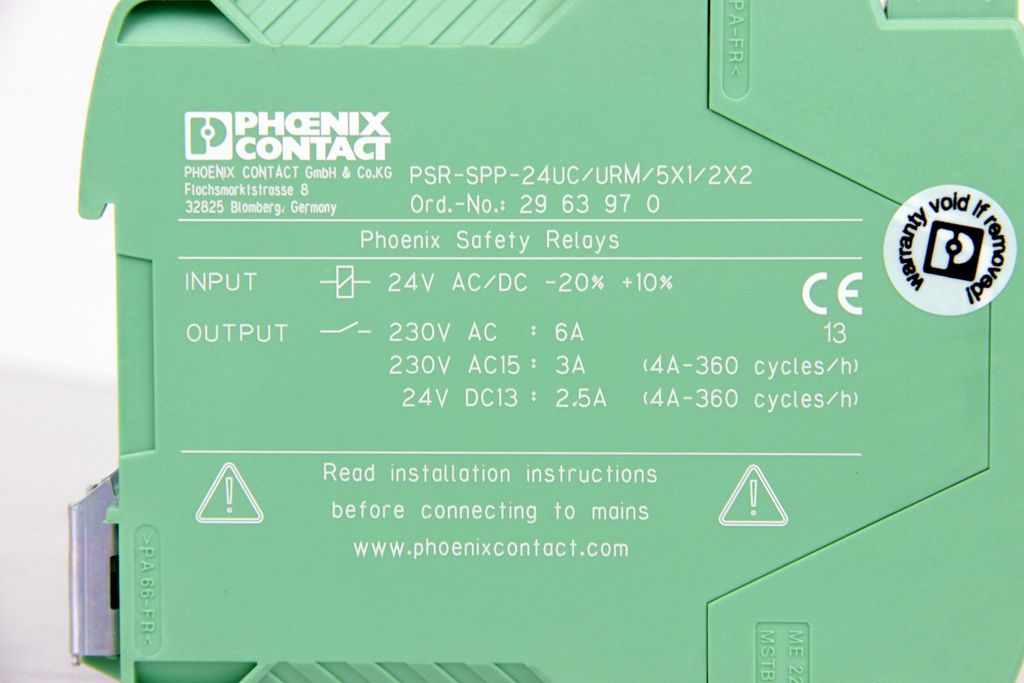

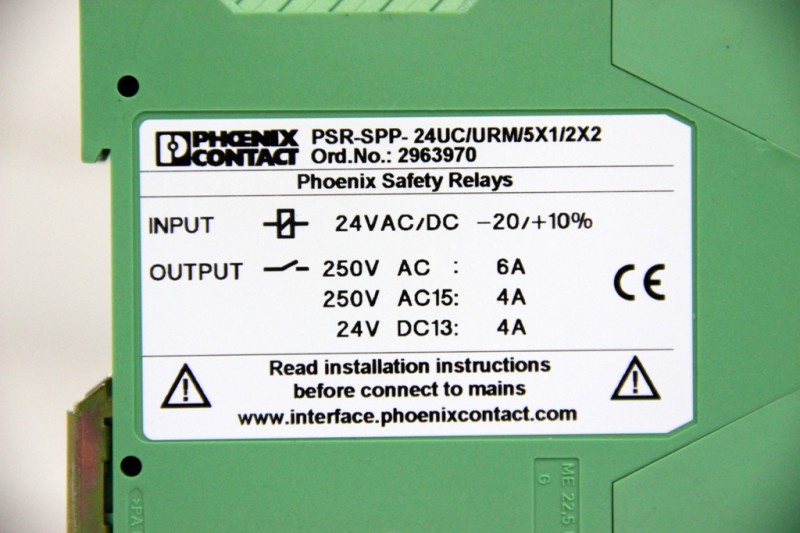

Phoenix Contact Safety Relay PSR-SPP- 24UC/URM/5X1/2X2 2963970
Item number 2963970
EAN 4017918904791
Condition Used
Available quantity
${ $store.getters.currentItemVariation.stock.net }
EUR 22.45
*
Content
1 piece
Unit price
EUR 22.45 / piece
immediately available
