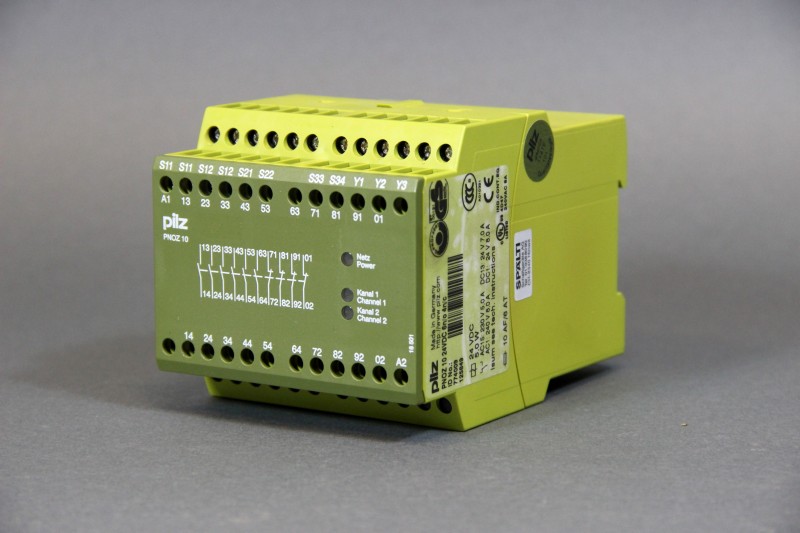

Pilz safety relay 774009 safety relay (standalone) Inputs: 1/2-channel wiring with/without cross-short detection Outputs: 6S, 4ÖUB 24V DC, Width: 90mm, Screw terminals integrated Monitoring of emergency stop, safety doors.

Item from plant decommissioning.

Product version: 3.2 Approvals: CE, cULus Listed, TÜV, GOST, CCC Category according to: EN 954-1 Application possibilities: Safety door monitor, emergency stop monitoring without delay, limit switch, light barrier monitoring Type 4, light barrier monitoring Type 2 without T, light barrier monitoring Type 2 with T Operating modes: single-channel, automatic start, dual-channel, manual start, cross-circuit detection, manual start with monitoring, without cross-circuit detection Product standard: EN 60947-5-1 Standards: EN 60204-1, EN 954-1, VDE 0113-1 Supply voltage: 24 V Type of supply voltage: DC Terminal type: fixed Terminal type: screw terminal KatSi contacts undelayed: 4 Number of safety contacts undelayed: 6 Number of auxiliary contacts: 4 Max. current at DC13 I(6 switching cycles/min): 7.0 A Max. current at AC15: 5.0 A Dimension width: 90.0 mm Dimension height: 87.0 mm Dimension depth: 121.0 mm Gross weight: 600 g Net weight: 540 g Ambient temperature: -10 - 55 °C Information according to the manufacturer.

Condition Used
Age rating No age restriction

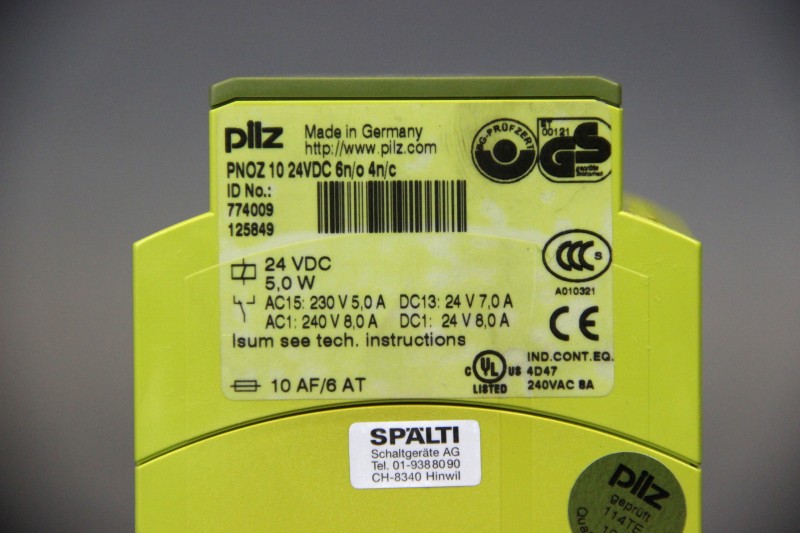

Model PNOZ 10 24VDC 6n/o 4n/c
Manufacturer Pilz GmbH & Co. KG
Content 1 piece
Weight 600 g
Item ID 1234571365
Item ID 1234571365

Any further Questions? Just fill the form below and let us know how we can help you.

Pilz GmbH & Co. KG

PILZ PNOZ EMERGENCY STOP Safety Doors Light Grids PNOZ 10 24VDC 6n/o 4n/c 774009


Item number 774009
EAN 4046548012637
Condition Used
Available quantity
1
EUR 189.00 *
Content 1 piece
immediately available
* Incl. VAT excl. Shipping
