Misplug-protected and maintenance-free Push-in CAGE CLAMP® spring connection technology for direct insertion of single-core conductors 2 conductor connections per pole for looping through or bridging Additional variable coding possible Note: Locking latches are factory-installed on all products to be permanently installed (snap-in variants for lights or devices, all distribution variants, all circuit board variants), so that there is always a lock with the sockets or plugs to be inserted. An additional locking latch is only required for a "flying connection" (socket/plug). Note on misplug protection: All WINSTA® components are 100% misplug-protected with regard to: a.) plugging in different numbers of poles b.) plugging in rotated 180° c.) plugging in laterally offset d.) single-pole plugging.
Electrical Data
Note on contact resistance approx. 1 mΩ contact resistance approx. 0.25 mΩ contact transition plug/socket
Rated data according to IEC/EN 60664-1
Rated data according to IEC/EN 60664-1 Rated voltage (III / 3) 250V Rated impulse voltage (III / 3) 4kV Rated current 25A Legend for rated data (III / 3) ≙ Overvoltage category III / Pollution degree 3
Rated data according to UL 1977
Rated voltage UL 1977 600V Rated current UL 1977 23A
Connection data
Connection technology Push-in CAGE CLAMP® Actuation type Actuation tool Push-in Nominal cross-section 4mm² Single-stranded conductor 0.5 … 4mm²/ 20 … 12AWG Single-stranded conductor; directly pluggable 1.5 … 4mm²/ 16 … 12AWG Multi-stranded conductor 0.5 … 2.5mm²/ 20 … 14AWG Fine-stranded conductor 0.5 … 4mm²/ 20 … 12AWG Fine-stranded conductor; with ferrule with plastic collar 0.25 … 1.5mm²/ 20 … 16AWG Fine-stranded conductor; with ferrule without plastic collar 0.25 … 2.5mm²/ 20 … 14AWG Fine-stranded conductor; with ferrule, directly pluggable 1.5mm²/ 16AWG Stripping length 9mm/ 0.35inch Note (stripping length) see also packaging or leaflet Number of poles 3 Total number of clamping points 6 Total number of potentials 3 Conductor connection direction to plug direction 0° Number of test openings 3
Geometric Data
Pitch 10mm/ 0.394inch Width 35.5mm/ 1.398inch Height 17.5mm/ 0.689inch Depth 36mm/ 1.417inch
Mechanical Data
Coding A Insertion force of a plug connection approx. 20 … 70 N (dependent on number of poles) Retention force of a plug connection with locking: > 80 N Separation force of a plug connection without locking: approx. 20 … 70 N (dependent on number of poles) Number of mating cycles 200, without ohmic load
100, with ohmic load IN= 25 A, tested (4 mm²) Housing sheet thickness 0.5 … 2mm/ 0.02 … 0.079inch Mounting type Snap-In Marking L ⏚ N Protection class IP20 Note on protection class In plugged state: IP2xC (These installation connectors are not intended for use in easily accessible areas!) Potential marking L ⏚ N Application General power applications
Plug connection
Contact design in connector area Spring strip/socket Connector connection type for conductor Mismating protection yes Locking of the plug connection Locking latch Locking latch yes
Material Data
Color black Insulating material Polyamide (PA66) Clamping spring material Chrome-nickel spring steel (CrNi) Contact material Copper or copper alloy; surface refined Fire load 0.235MJ
Note on contact resistance approx. 1 mΩ contact resistance approx. 0.25 mΩ contact transition plug/socket
Rated data according to IEC/EN 60664-1
Rated data according to IEC/EN 60664-1 Rated voltage (III / 3) 250V Rated impulse voltage (III / 3) 4kV Rated current 25A Legend for rated data (III / 3) ≙ Overvoltage category III / Pollution degree 3
Rated data according to UL 1977
Rated voltage UL 1977 600V Rated current UL 1977 23A
Connection data
Connection technology Push-in CAGE CLAMP® Actuation type Actuation tool Push-in Nominal cross-section 4mm² Single-stranded conductor 0.5 … 4mm²/ 20 … 12AWG Single-stranded conductor; directly pluggable 1.5 … 4mm²/ 16 … 12AWG Multi-stranded conductor 0.5 … 2.5mm²/ 20 … 14AWG Fine-stranded conductor 0.5 … 4mm²/ 20 … 12AWG Fine-stranded conductor; with ferrule with plastic collar 0.25 … 1.5mm²/ 20 … 16AWG Fine-stranded conductor; with ferrule without plastic collar 0.25 … 2.5mm²/ 20 … 14AWG Fine-stranded conductor; with ferrule, directly pluggable 1.5mm²/ 16AWG Stripping length 9mm/ 0.35inch Note (stripping length) see also packaging or leaflet Number of poles 3 Total number of clamping points 6 Total number of potentials 3 Conductor connection direction to plug direction 0° Number of test openings 3
Geometric Data
Pitch 10mm/ 0.394inch Width 35.5mm/ 1.398inch Height 17.5mm/ 0.689inch Depth 36mm/ 1.417inch
Mechanical Data
Coding A Insertion force of a plug connection approx. 20 … 70 N (dependent on number of poles) Retention force of a plug connection with locking: > 80 N Separation force of a plug connection without locking: approx. 20 … 70 N (dependent on number of poles) Number of mating cycles 200, without ohmic load
100, with ohmic load IN= 25 A, tested (4 mm²) Housing sheet thickness 0.5 … 2mm/ 0.02 … 0.079inch Mounting type Snap-In Marking L ⏚ N Protection class IP20 Note on protection class In plugged state: IP2xC (These installation connectors are not intended for use in easily accessible areas!) Potential marking L ⏚ N Application General power applications
Plug connection
Contact design in connector area Spring strip/socket Connector connection type for conductor Mismating protection yes Locking of the plug connection Locking latch Locking latch yes
Material Data
Color black Insulating material Polyamide (PA66) Clamping spring material Chrome-nickel spring steel (CrNi) Contact material Copper or copper alloy; surface refined Fire load 0.235MJ
| Condition | New |
| Age rating | No age restriction |
| Model | 770-703 |
| Manufacturer | WAGO Kontakttechnik GmbH & Co. KG |
| Content | 1 piece |
| Weight | 20 g |
| Item ID | 1234584315 |
| Item ID | 1234584315 |
WAGO Kontakttechnik GmbH & Co. KG

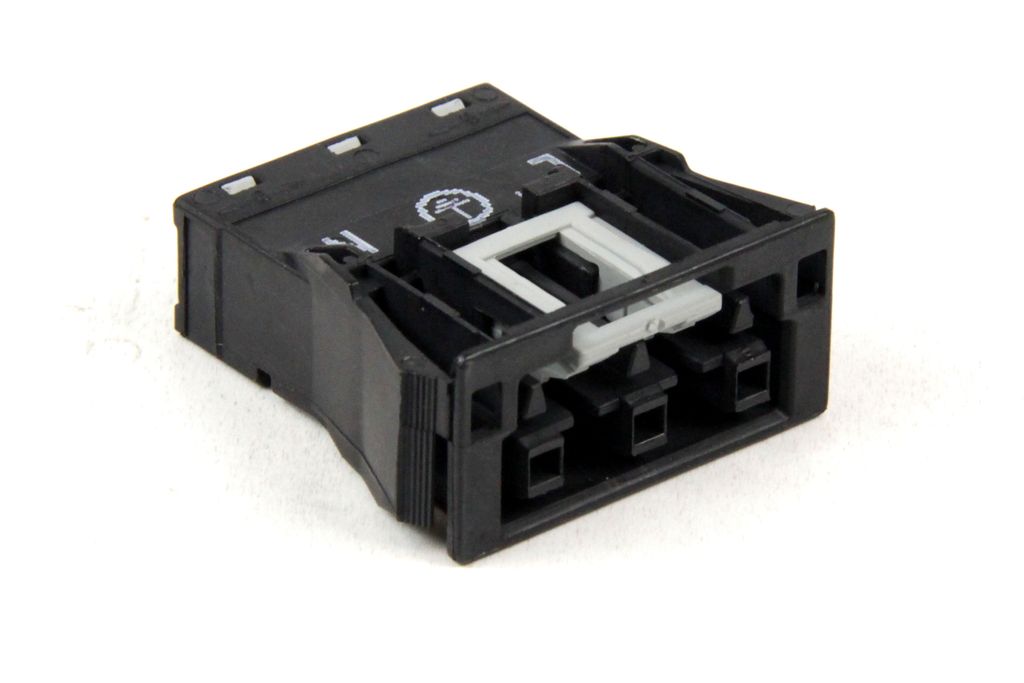

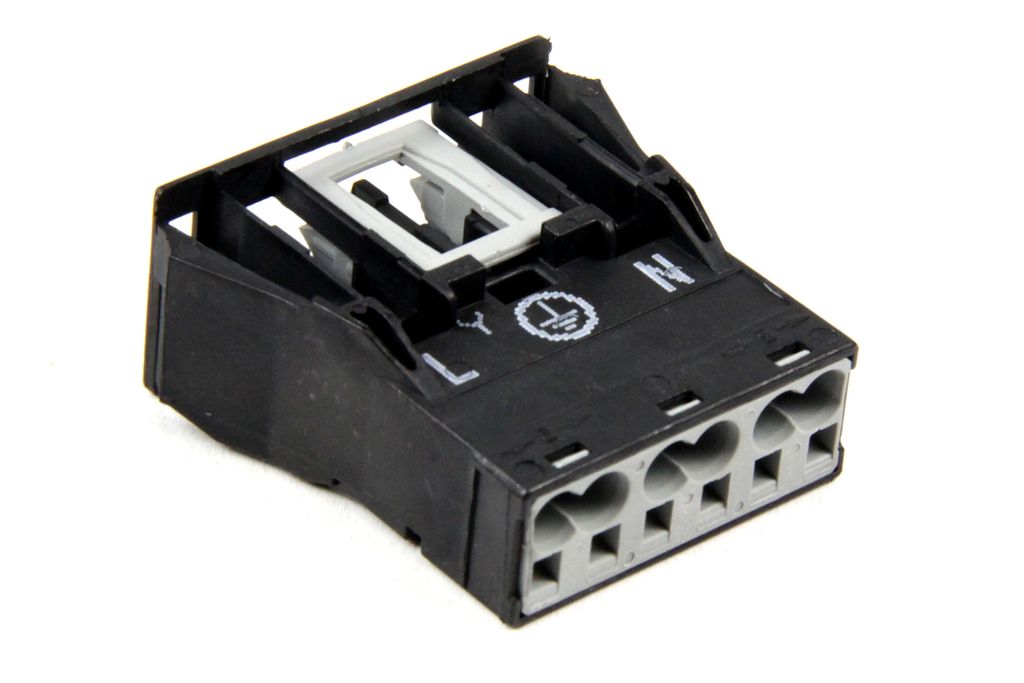

WAGO 770-703 Winsta Midi Snap-in Socket Socket Part 3-pole 4.00mm²
Item number VN-15830
EAN 4044918252560
Condition New
