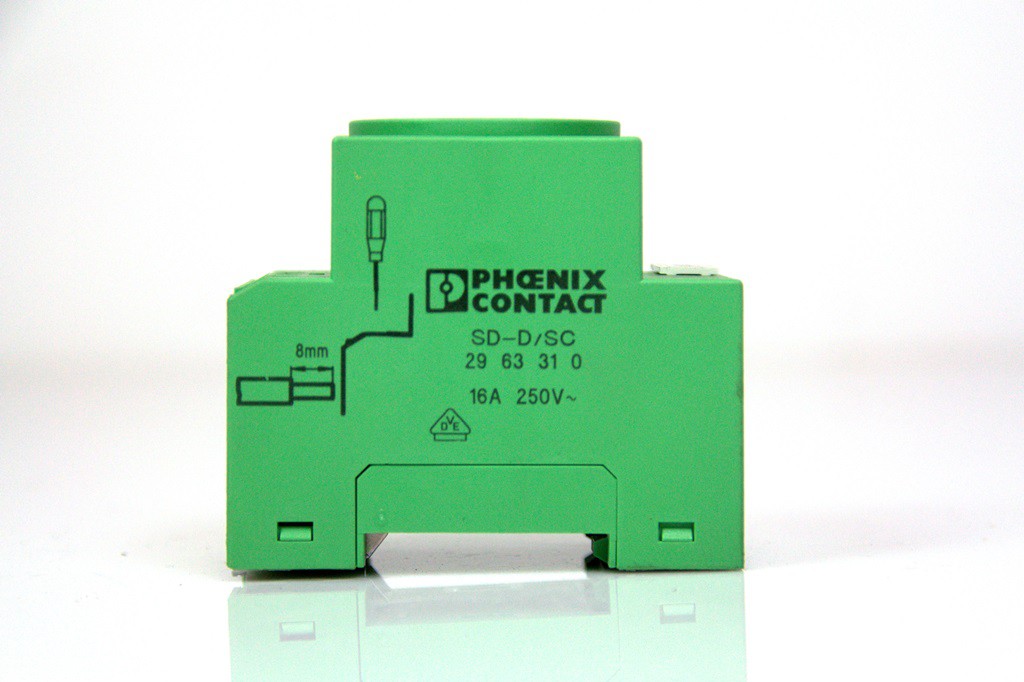

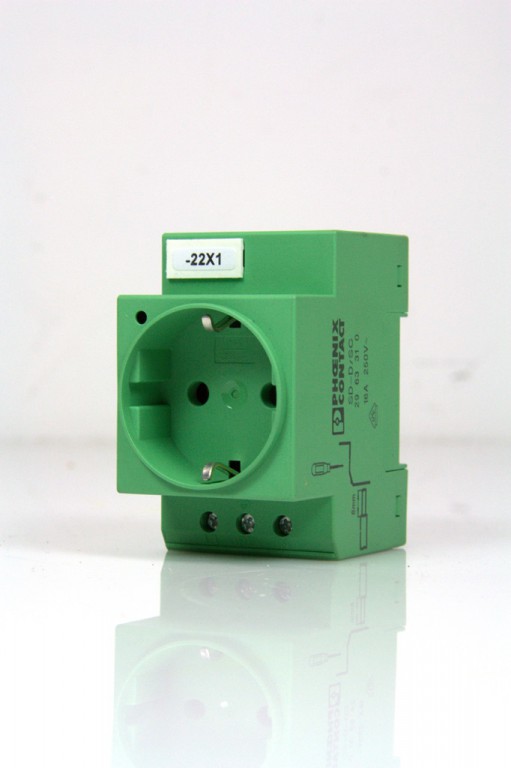

Control cabinet socket, for mounting on DIN rail and in the service interface, housing color: green, with screw connection, country variant: Germany, housing width 45 mm
Item from plant decommissioning
Item from plant decommissioning
Dimensions
Width approx. 45 mm Height approx. 75 mm Depth approx. 65.2 mm
Environmental conditions
Ambient temperature (operation) -20 °C ..60 °C Ambient temperature (storage/transport) -20 °C ..60 °C
General
Rated voltage UN 250 V AC Rated current IN 16 A Status indicator No Contact material CuZn37 Typically usable in country D Color green Insulating material PA Standards/Regulations IEC 83 DIN 49440-1
Connection data
Conductor cross-section rigid min 0.2 mm² Conductor cross-section rigid max 4 mm² Conductor cross-section flexible min. 0.2 mm² Conductor cross-section flexible max. 2.5 mm² Conductor cross-section AWG min 24 Conductor cross-section AWG max 12 Connection type Screw connection Stripping length 8 mm Screw thread M3
Width approx. 45 mm Height approx. 75 mm Depth approx. 65.2 mm
Environmental conditions
Ambient temperature (operation) -20 °C ..60 °C Ambient temperature (storage/transport) -20 °C ..60 °C
General
Rated voltage UN 250 V AC Rated current IN 16 A Status indicator No Contact material CuZn37 Typically usable in country D Color green Insulating material PA Standards/Regulations IEC 83 DIN 49440-1
Connection data
Conductor cross-section rigid min 0.2 mm² Conductor cross-section rigid max 4 mm² Conductor cross-section flexible min. 0.2 mm² Conductor cross-section flexible max. 2.5 mm² Conductor cross-section AWG min 24 Conductor cross-section AWG max 12 Connection type Screw connection Stripping length 8 mm Screw thread M3
Condition | Used |
Age rating | No age restriction |
Model | SD-D/SC |
Manufacturer | Phoenix Contact |
Content | 1 piece |
Weight | 100 g |
Item ID | 1234577194 |
Item ID | 1234577194 |
Any further Questions? Just fill the form below and let us know how we can help you.
Phoenix Contact
Phoenix Contact SD-D/SC 2963310 Socket Cabinet Socket 230V 16A
Item number 2963310
EAN 4017918190675
Condition Used
Available quantity
2
EUR 4.99
*
Content
1 piece
immediately available
* Incl. VAT excl. Shipping
