The digital inline input terminals are designed for the connection of digital signals, such as those supplied by pushbuttons, limit switches, or proximity switches. All typical applications are covered by the standard automation terminals. The connection of the peripherals is made either by a simple or an extended inline connector, depending on the number of channels. In both cases, multi-conductor connection technology is available to you.
- Inline digital input terminal
- 4 inputs: 24VDC
- 2-, 3-wire connection technology
- Maximum permissible load current per sensor: 250mA
- Maximum permissible load current from the terminal: 1A
- Diagnostic and status indicators
Article from plant decommissioning
- Inline digital input terminal
- 4 inputs: 24VDC
- 2-, 3-wire connection technology
- Maximum permissible load current per sensor: 250mA
- Maximum permissible load current from the terminal: 1A
- Diagnostic and status indicators
Article from plant decommissioning
Interfaces
Designation Inline local bus Connection type Inline data marshaller Transmission speed 500 kBit/s
Digital Inputs
Designation Input Digital inputs Connection type Spring-cage connection Connection technology 2-, 3-wire Number of inputs 4 (IEC 61131-2 Type 1) Response time typical < 1 ms Protective circuitry Short-circuit protection, Overload protection Input voltage 24 V DC (via potential marshaller) Input voltage range "0"-signal -3 V DC ..5 V DC Input voltage range "1"-signal 15 V DC ..30 V DC Nominal input current at UIN min3 mA
Designation Inline local bus Connection type Inline data marshaller Transmission speed 500 kBit/s
Digital Inputs
Designation Input Digital inputs Connection type Spring-cage connection Connection technology 2-, 3-wire Number of inputs 4 (IEC 61131-2 Type 1) Response time typical < 1 ms Protective circuitry Short-circuit protection, Overload protection Input voltage 24 V DC (via potential marshaller) Input voltage range "0"-signal -3 V DC ..5 V DC Input voltage range "1"-signal 15 V DC ..30 V DC Nominal input current at UIN min3 mA
| Condition | Used |
| Age rating | No age restriction |
| Model | IB IL 24 DI 4 |
| Manufacturer | Phoenix Contact |
| Content | 1 piece |
| Weight | 300 g |
| Item ID | 1234576054 |
| Item ID | 1234576054 |
Phoenix Contact

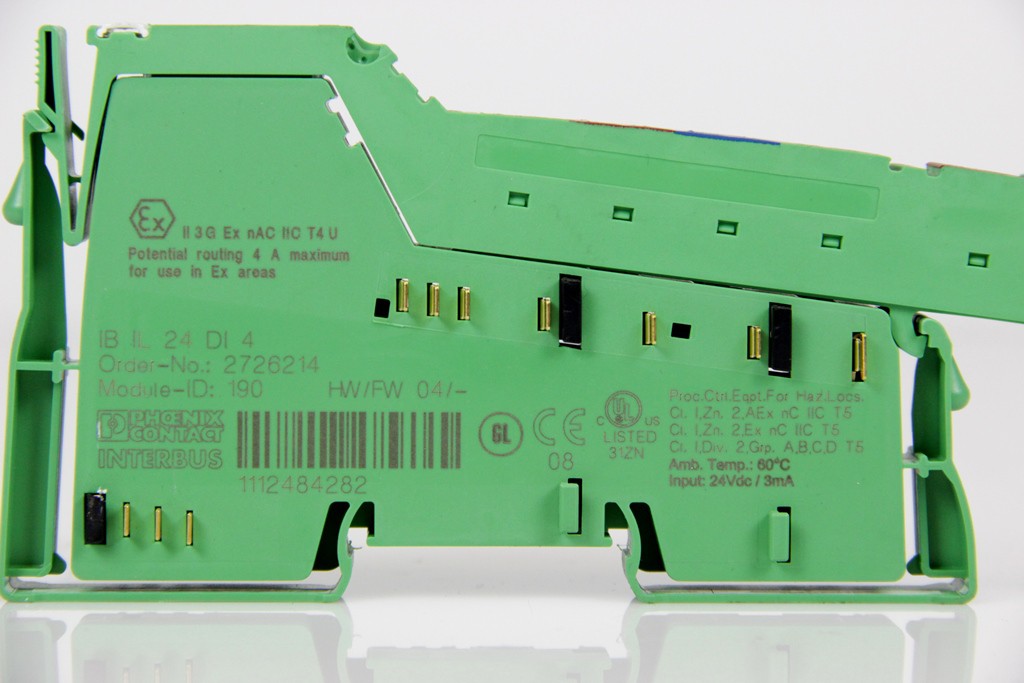

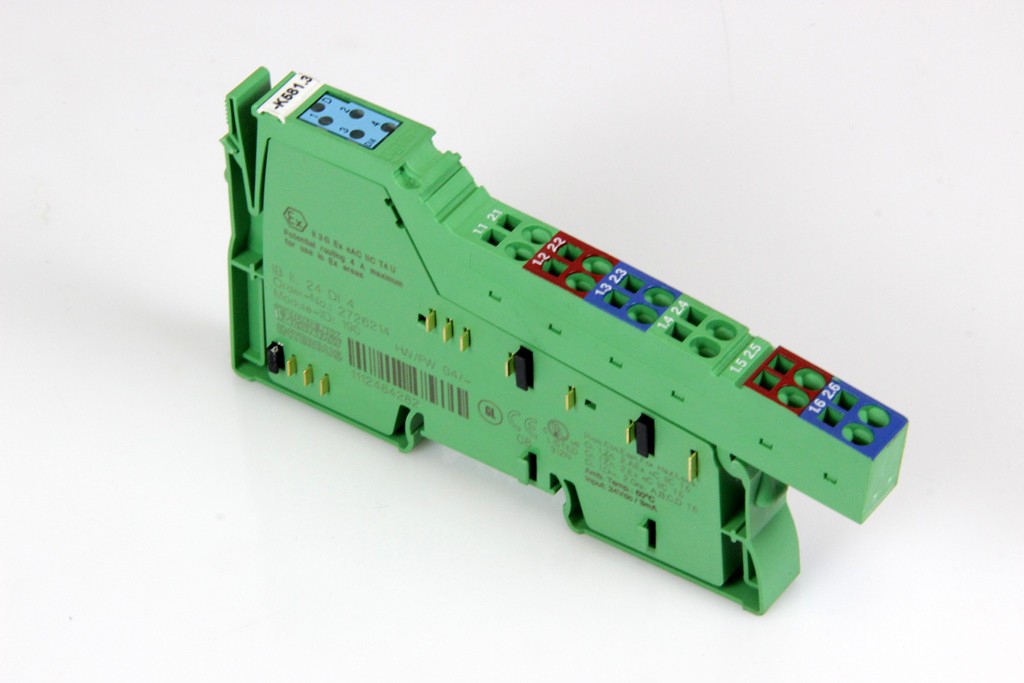

Phoenix Contact Inline Input Terminal IB IL 24 DI 4 2726214
Item number 2726214
EAN 4017918168087
Condition Used
Available quantity
${ $store.getters.currentItemVariation.stock.net }
EUR 5.99
*
Content
1 piece
Unit price
EUR 5.99 / piece
immediately available
